Relax Renova

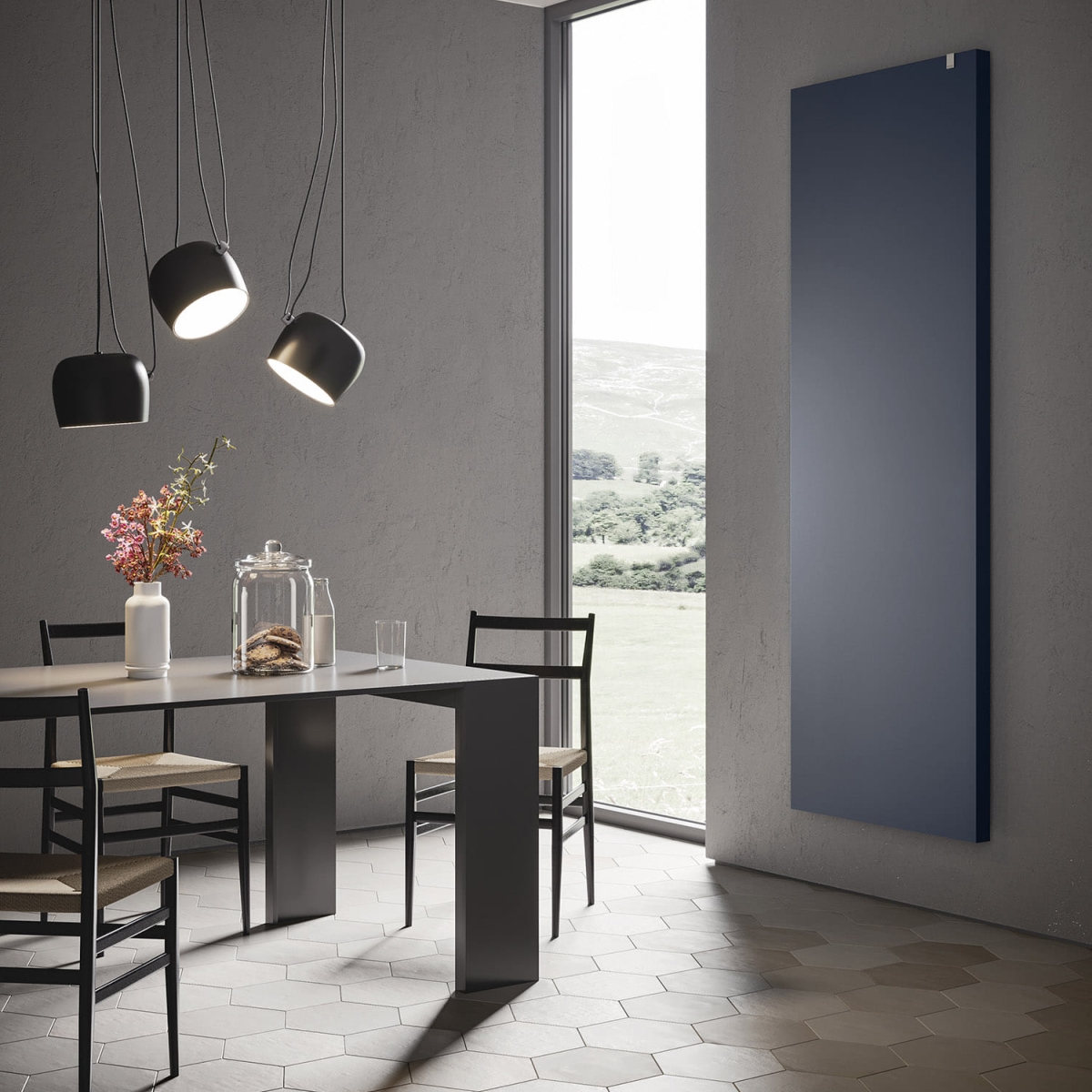

RELAX RENOVA is the ideal product for replacement of any radiator already installed, thanks to a series of possible connections, on the bottom or side, making it ideal for the restructuring. The radiator is supplied with the hydraulic connection kit hidden concealment on the rear of the radiator. A valve and lockshield system connected to flexible pipes allow for high installation flexibility, varying the hydraulic center distance from a minimum of 45 mm to a maximum of 100 mm as desired.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Calculate the power
How to choose the Relax Renova radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
Calculate the thermal power of your Relax Renova
Configure your Relax Renova
Configure your Relax Renova
-
Thermal power
Discover accessories
Loading...
Construction features
- radiating panel
- thread M24x19
- maximum working pressure 10 bar
- maximum working temperature 95°C
- this radiator is already fitted for the insertion of the optional thermostat head
.jpg)
| Model | Depth (mm) | Height (mm) | Width (mm) | Weight (kg) | Capacity (lt) |
|
Exponent |
|---|---|---|---|---|---|---|---|
| 688 x 1136 | 63,5 | 688 | 1136 | 29,40 | 7,30 | 3.780,0 952,9 1.108,0 837,3 583,5 350,7 | 1,255 |
| 688 x 1272 | 63,5 | 688 | 1272 | 32,80 | 8,30 | 4.265,0 1.075,0 1.250,0 944,6 658,3 395,7 | 1,255 |
| 688 x 1476 | 63,5 | 688 | 1476 | 37,90 | 9,80 | 4.992,0 1.258,2 1.463,0 1.105,6 770,5 463,1 | 1,255 |
| 688 x 728 | 63,5 | 688 | 728 | 19,30 | 4,40 | 2.327,0 586,5 682,0 515,4 359,2 215,9 | 1,255 |
| 688 x 932 | 63,5 | 688 | 932 | 24,40 | 5,90 | 3.054,0 769,7 895,0 676,3 471,3 283,3 | 1,255 |
| 868 x 1136 | 63,5 | 868 | 1136 | 37,20 | 9,40 | 4.712,0 1.187,7 1.381,0 1.041,1 723,2 432,8 | 1,266 |
| 868 x 1272 | 63,5 | 868 | 1272 | 41,50 | 10,70 | 5.316,0 1.339,9 1.558,0 1.174,5 815,9 488,3 | 1,266 |
| 868 x 1476 | 63,5 | 868 | 1476 | 48,00 | 12,60 | 6.223,0 1.568,6 1.824,0 1.375,0 955,2 571,6 | 1,266 |
| 868 x 728 | 63,5 | 868 | 728 | 24,10 | 5,70 | 2.900,0 731,0 850,0 640,8 445,1 266,4 | 1,266 |
| 868 x 932 | 63,5 | 868 | 932 | 30,60 | 7,50 | 3.808,0 959,8 1.116,0 841,3 584,5 349,8 | 1,266 |
| 1663 x 456 | 63,5 | 1663 | 456 | 28,40 | 6,40 | 3.166,0 798,1 928,0 695,7 479,8 284,2 | 1,291 |
| 1663 x 592 | 63,5 | 1663 | 592 | 37,20 | 8,90 | 4.299,0 1.083,6 1.260,0 944,5 651,4 385,9 | 1,291 |
| 1663 x 728 | 63,5 | 1663 | 728 | 45,90 | 11,40 | 5.428,0 1.368,3 1.591,0 1.192,7 822,6 487,3 | 1,291 |
| 1963 x 456 | 63,5 | 1963 | 456 | 33,30 | 7,50 | 3.617,0 911,6 1.060,0 796,4 550,9 327,7 | 1,281 |
| 1963 x 592 | 63,5 | 1963 | 592 | 43,60 | 10,50 | 4.910,0 1.237,5 1.439,0 1.081,2 747,8 444,8 | 1,281 |
| 1963 x 728 | 63,5 | 1963 | 728 | 53,90 | 13,60 | 6.200,0 1.562,6 1.817,0 1.365,2 944,3 561,7 | 1,281 |
| 2163 x 456 | 63,5 | 2163 | 456 | 36,50 | 8,30 | 3.972,0 1.001,0 1.164,0 875,0 605,7 360,7 | 1,279 |
| 2163 x 592 | 63,5 | 2163 | 592 | 47,90 | 11,60 | 5.391,0 1.358,8 1.580,0 1.187,8 822,2 489,5 | 1,279 |
| 2163 x 728 | 63,5 | 2163 | 728 | 59,30 | 15,00 | 6.807,0 1.715,7 1.995,0 1.499,8 1.038,1 618,1 | 1,279 |
Thanks to the high performance of Irsap RELAX RENOVA radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n
Standard equipment
- water connection system complete with fittings for connection to copper pipes (12, 14 and 15 mm diameter) and multilayer pipes (14 x 2 thick and 16 x 2 thick)
- wall fixing system
- air vent
- installation template
