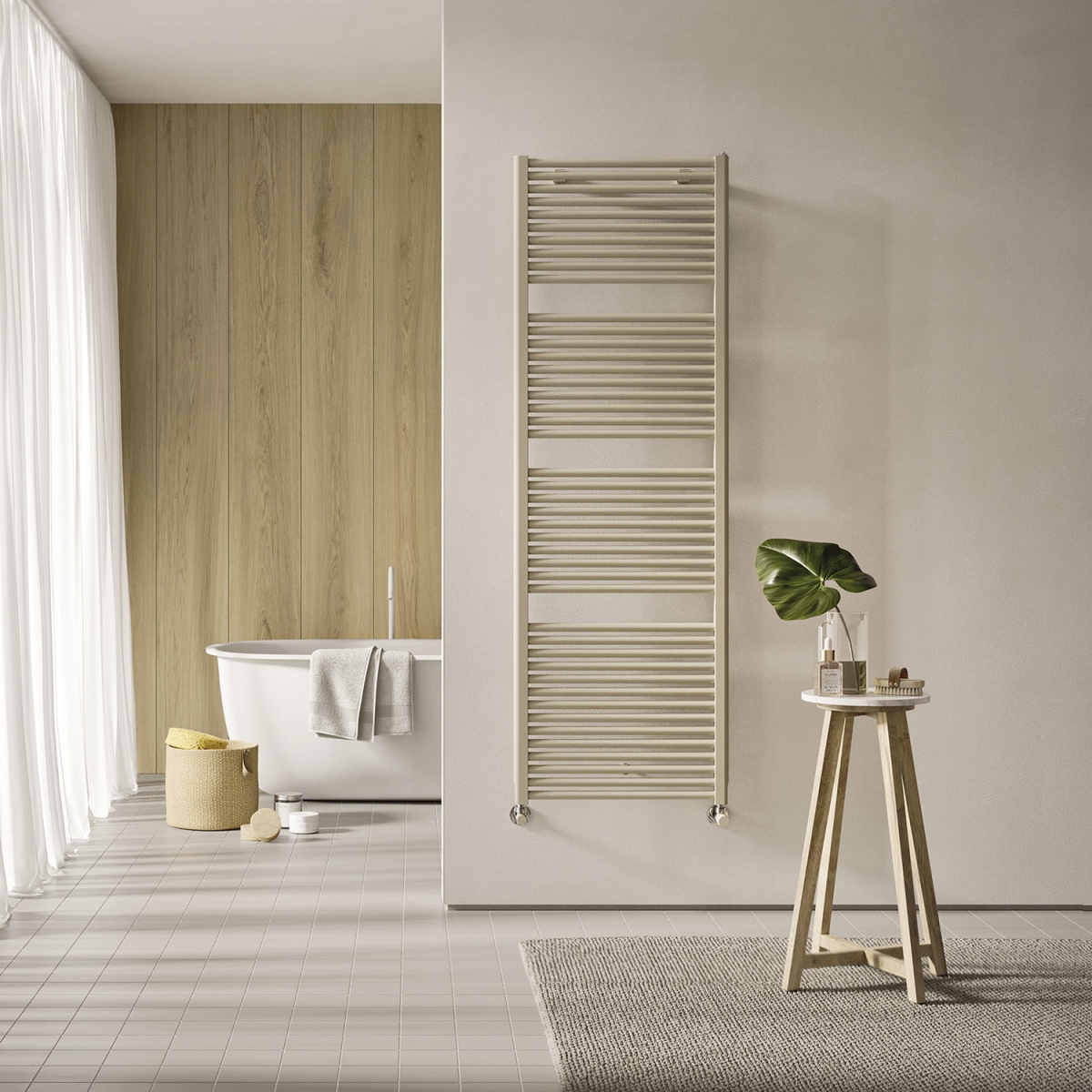

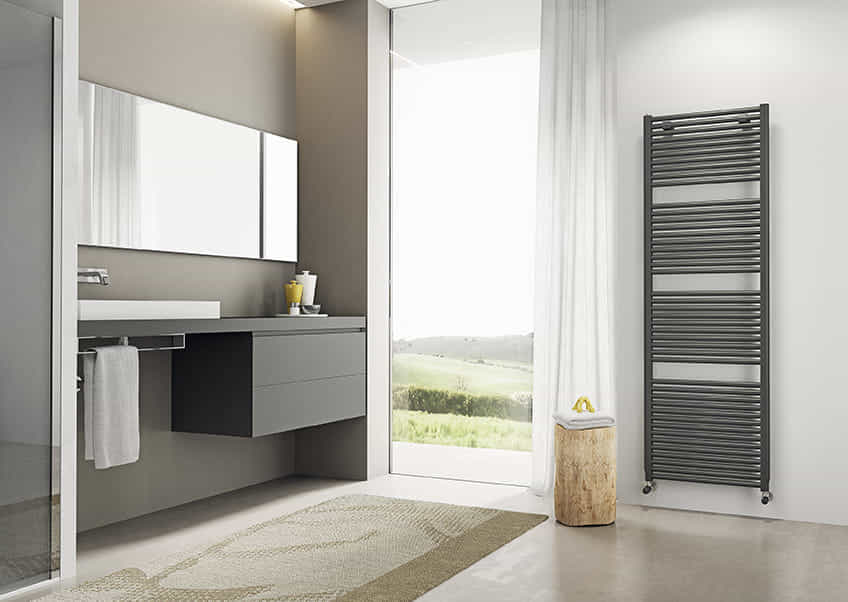

Novo

NOVO is the towel warmer for excellence, specifically designed for the bathroom. With 4 heights and 4 widths it can satisfy any demand for dimensions and heating power. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

Calculate the power

How to choose the Novo radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space

Model	Elements	Depth ^(mm)	Length ^(mm)	Height ^(mm)	Thermal power ^(watt)
{{ battery.modello }}	{{ battery.n_elementi }}	{{ battery.profondita }}	{{ battery.lunghezza }}	{{ battery.altezza }}	{{ battery.power }}

Configure your Novo

764 19 rails 1 espace

1196 29 rails 2 espaces

1520 36 rails 3 espaces

1808 44 rails 3 espaces

3 plugs 1/2" and 1 blind plug, standards connections

50 mm bottom connection

Choose most used

Connection left/right with angle valve

50mm connection with angle valve

Select valve finish

Standard white

Chrome

MATCHING YOUR RADIATOR

-

Thermal power

Showroom Find Showroom

Don't know the thermal power?

Discover accessories

Construction features

steel towel warmer radiator
horizontal elements featuring round tubes 25 mm diameter
side manifolds with semi-oval section 40x30 mm
manifold threading and central connections (50 mm) 1/2” Gas right
maximum working pressure 8 bar
maximum working temperature 95°C

Electric radiator available

10 year Guarantee

Low temperature

Hydraulic radiator

Model	Depth (mm)	Height (mm)	Width (mm)	Conn. centre (mm)	Weight (kg)	Capacity (lt)		Exponent	Mixed Function (Watts)
01
764 19 rails 1 espace	30,0	764	450	406	5,64	4,43	1.314,0 331,2 385,1 294,2 208,0 127,5	1,206	400
764 19 rails 1 espace	30,0	764	500	456	6,15	4,83	1.441,2 363,3 422,4 323,0 228,5 140,3	1,203	400
764 19 rails 1 espace	30,0	764	600	556	7,17	5,64	1.695,4 427,3 496,9 380,5 269,8 166,1	1,196	400
764 19 rails 1 espace	30,0	764	750	706	10,13	6,66	2.076,5 523,4 608,6 467,1 332,2 205,4	1,185	400
1196 29 rails 2 espaces	30,0	1196	450	406	8,62	6,82	1.884,1 474,9 552,2 423,4 300,6 185,6	1,190	400
1196 29 rails 2 espaces	30,0	1196	500	456	9,39	7,44	2.086,1 525,8 611,4 468,8 332,9 205,5	1,190	700
1196 29 rails 2 espaces	30,0	1196	600	556	10,94	8,66	2.490,1 627,6 729,8 559,6 397,4 245,3	1,190	700
1196 29 rails 2 espaces	30,0	1196	750	706	15,47	10,22	3.096,4 780,5 907,5 695,9 494,2 305,1	1,190	1000
1520 36 rails 3 espaces	30,0	1520	450	406	10,75	8,54	2.372,7 598,0 695,4 527,2 369,0 223,1	1,241	700
1520 36 rails 3 espaces	30,0	1520	500	456	11,71	9,30	2.630,7 663,1 771,0 584,7 409,3 247,6	1,240	700
1520 36 rails 3 espaces	30,0	1520	600	556	13,63	10,82	3.146,5 793,1 922,2 699,7 490,1 296,8	1,237	1000
1520 36 rails 3 espaces	30,0	1520	750	706	19,25	12,75	3.920,4 988,1 1.149,0 872,4 611,7 370,9	1,234	1000
1808 44 rails 3 espaces	30,0	1808	450	406	12,99	10,34	2.935,3 739,9 860,3 654,8 460,5 280,4	1,223	700
1808 44 rails 3 espaces	30,0	1808	500	456	14,17	11,27	3.226,7 813,3 945,7 720,6 507,6 309,7	1,218	1000
1808 44 rails 3 espaces	30,0	1808	600	556	16,52	13,13	3.807,8 959,8 1.116,0 852,3 602,1 368,9	1,208	1000
1808 44 rails 3 espaces	30,0	1808	750	706	23,38	15,49	4.679,6 1.179,5 1.371,5 1.051,0 745,8 459,8	1,193	1000
05
764 19 rails 1 espace	30,0	764	450	406	5,64	4,43	1.314,0 331,2 385,1 294,2 208,0 127,5	1,206	400
764 19 rails 1 espace	30,0	764	500	456	6,15	4,83	1.441,2 363,3 422,4 323,0 228,5 140,3	1,203	400
764 19 rails 1 espace	30,0	764	600	556	7,17	5,64	1.695,4 427,3 496,9 380,5 269,8 166,1	1,196	400
764 19 rails 1 espace	30,0	764	750	706	10,13	6,66	2.076,5 523,4 608,6 467,1 332,2 205,4	1,185	400
1196 29 rails 2 espaces	30,0	1196	450	406	8,62	6,82	1.884,1 474,9 552,2 423,4 300,6 185,6	1,190	400
1196 29 rails 2 espaces	30,0	1196	500	456	9,39	7,44	2.086,1 525,8 611,4 468,8 332,9 205,5	1,190	700
1196 29 rails 2 espaces	30,0	1196	600	556	10,94	8,66	2.490,1 627,6 729,8 559,6 397,4 245,3	1,190	700
1196 29 rails 2 espaces	30,0	1196	750	706	15,47	10,22	3.096,4 780,5 907,5 695,9 494,2 305,1	1,190	1000
1520 36 rails 3 espaces	30,0	1520	450	406	10,75	8,54	2.372,7 598,0 695,4 527,2 369,0 223,1	1,241	700
1520 36 rails 3 espaces	30,0	1520	500	456	11,71	9,30	2.630,7 663,1 771,0 584,7 409,3 247,6	1,240	700
1520 36 rails 3 espaces	30,0	1520	600	556	13,63	10,82	3.146,5 793,1 922,2 699,7 490,1 296,8	1,237	1000
1520 36 rails 3 espaces	30,0	1520	750	706	19,25	12,75	3.920,4 988,1 1.149,0 872,4 611,7 370,9	1,234	1000
1808 44 rails 3 espaces	30,0	1808	450	406	12,99	10,34	2.935,3 739,9 860,3 654,8 460,5 280,4	1,223	700
1808 44 rails 3 espaces	30,0	1808	500	456	14,17	11,27	3.226,7 813,3 945,7 720,6 507,6 309,7	1,218	1000
1808 44 rails 3 espaces	30,0	1808	600	556	16,52	13,13	3.807,8 959,8 1.116,0 852,3 602,1 368,9	1,208	1000
1808 44 rails 3 espaces	30,0	1808	750	706	23,38	15,49	4.679,6 1.179,5 1.371,5 1.051,0 745,8 459,8	1,193	1000

Thanks to the high performance of Irsap NOVO radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Irsap guarantees the hydraulic seal and paint of NOVO radiators for 10 years, starting with sales in 2009.

Standard equipment

pair of CHELA wall brackets
wall spacers
1/2" air vent

Type	Description	Document	Downloads
Technical document			Downloads PDF
Catalogs	Catalog 2023	Catalog 2023	Downloads PDF
Connections	Bathroom radiators hydraulic connections	Allacciamenti bagno EN	Downloads PDF
Catalogs	Color chart	Color chart	Downloads PDF
Product certification	NOVO_NF_certification	NOVO_NF_certification	Downloads PDF
User manual	FOISTR1009M	FOISTR1009M	Downloads PDF
User manual	FOISTR0308M	FOISTR0308M	Downloads PDF
User manual	FOISTR1033M	FOISTR1033M	Downloads PDF
Installation Manual	FOISTR0248M	FOISTR0248M	Downloads PDF
Installation Manual	FOISTR0222M	FOISTR0222M	Downloads PDF
