Sax 2 Horizontal

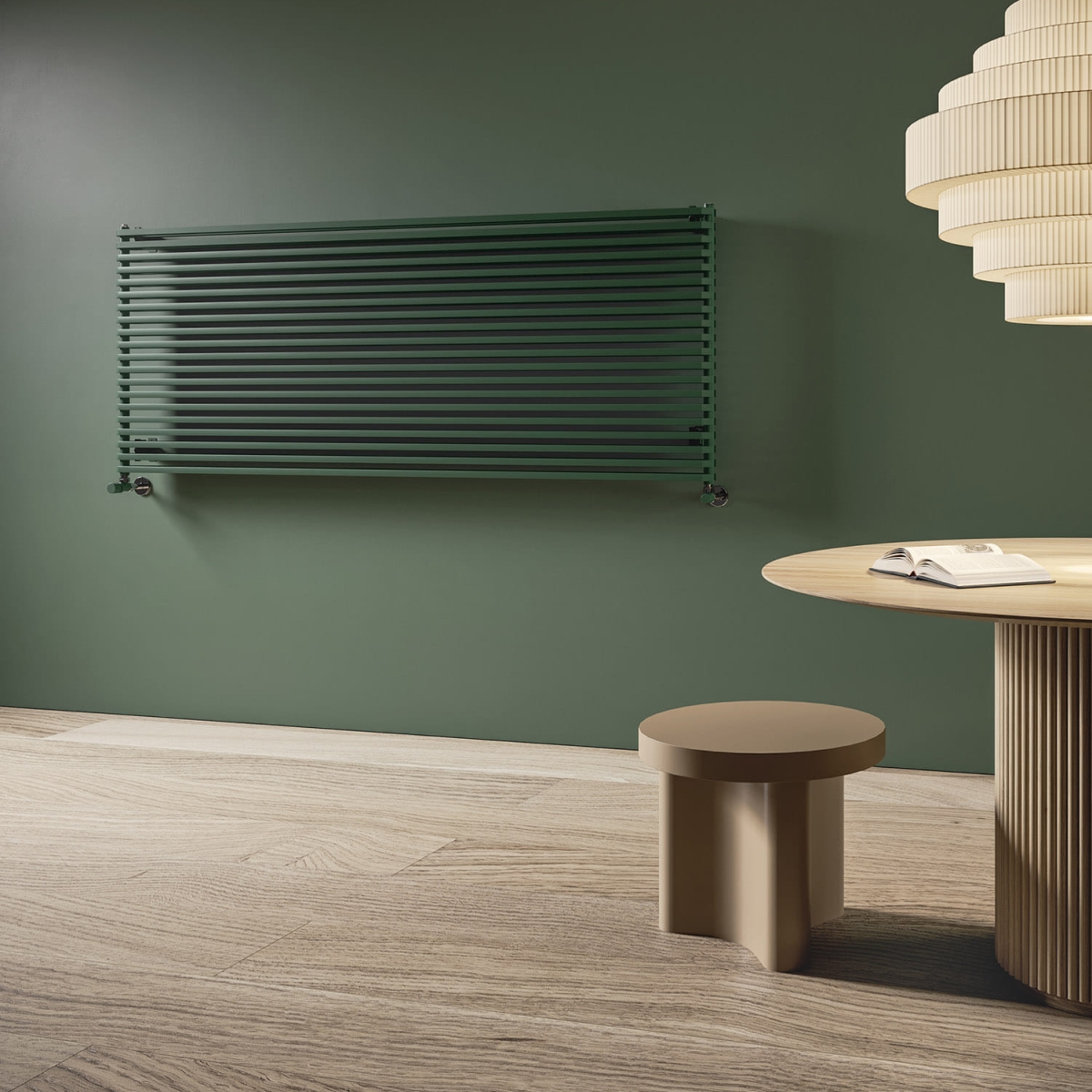

SAX 2 Horizontal is ideal for environments with refined and original architectural lines, where the very shape of the radiator enhances and personalizes the environment. SAX 2 Horizontal is available in 13 heights, from 4 to 40 elements and thermal powers from 205 to 3160 Watt.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Calculate the power
How to choose the Sax 2 Horizontal radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
Calculate the thermal power of your Sax 2 Horizontal
Loading...
Saving...
Configure your SAX_H
Configure your SAX_H
-
Thermal power
Discover accessories
Loading...
Construction features
- manifolds with a 30 mm diameter circular section
- tubes made of sheet steel with a 20x25 mm rectangular section
- manifold threading 1/2” Gas right
- maximum working pressure 4 bar
- maximum working temperature 95°C
.jpg)
| Model | Depth (mm) | Length (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|---|---|---|---|---|---|
| 500 | 80,0 | 500 | 470 | 0,82 | 0,44 |
| 530 | 80,0 | 530 | 500 | 0,86 | 0,47 |
| 630 | 80,0 | 630 | 600 | 1,00 | 0,55 |
| 650 | 80,0 | 650 | 620 | 1,03 | 0,57 |
| 680 | 80,0 | 680 | 650 | 1,07 | 0,59 |
| 730 | 80,0 | 730 | 700 | 1,14 | 0,63 |
| 830 | 80,0 | 830 | 800 | 1,28 | 0,71 |
| 850 | 80,0 | 850 | 820 | 1,31 | 0,73 |
| 900 | 80,0 | 900 | 870 | 1,38 | 0,77 |
| 1200 | 80,0 | 1200 | 1170 | 1,80 | 1,01 |
| 1500 | 80,0 | 1500 | 1470 | 2,22 | 1,26 |
| 1800 | 80,0 | 1800 | 1770 | 2,64 | 1,50 |
| 2000 | 80,0 | 2000 | 1970 | 2,92 | 1,66 |
Thanks to the high performance of Irsap SAX 2 Horizontal radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n
Standard equipment
- wall fixing systems with screws and anchors
- 1/2” blind plug
- piper cover kit
- 1/2” air vent
Thermal output per linear metre
| Number of Elements | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | 38 | 40 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Btu/h at Δt=50°C | 1.398,7 | 1.952,1 | 2.465,6 | 2.947,6 | 3.404,1 | 3.838,4 | 4.252,8 | 4.649,5 | 5.029,5 | 5.394,8 | 5.745,8 | 6.083,4 | 6.408,4 | 6.721,8 | 7.023,6 | 7.314,8 | 7.595,8 | 7.866,5 | 8.128,1 |
| Yield per linear meter Watt at Δt=50°C | 409,7 | 571,8 | 722,2 | 863,4 | 997,1 | 1.124,3 | 1.245,7 | 1.361,9 | 1.473,2 | 1.580,2 | 1.683,0 | 1.781,9 | 1.877,1 | 1.968,9 | 2.057,3 | 2.142,6 | 2.224,9 | 2.304,2 | 2.380,8 |
| Yield per linear meter Watt at Δt=40°C | 307,3 | 429,2 | 542,4 | 648,9 | 749,7 | 845,9 | 938,5 | 1.028,1 | 1.114,1 | 1.195,0 | 1.272,5 | 1.347,0 | 1.418,9 | 1.488,0 | 1.554,5 | 1.618,9 | 1.680,7 | 1.740,2 | 1.797,7 |
| Yield per linear meter Watt at Δt=30°C | 212,1 | 296,4 | 375,0 | 449,0 | 519,1 | 586,2 | 651,5 | 715,5 | 777,2 | 833,6 | 887,4 | 939,0 | 989,2 | 1.037,1 | 1.083,1 | 1.128,0 | 1.170,7 | 1.211,8 | 1.251,5 |
| Yield per linear meter Watt at Δt=20°C | 125,8 | 176,0 | 222,9 | 267,2 | 309,2 | 349,5 | 389,4 | 429,3 | 467,8 | 501,8 | 533,9 | 564,8 | 594,9 | 623,5 | 650,9 | 677,8 | 703,2 | 727,6 | 751,1 |
| Exponent change | 1,289 | 1,286 | 1,283 | 1,280 | 1,278 | 1,275 | 1,269 | 1,260 | 1,252 | 1,252 | 1,253 | 1,254 | 1,254 | 1,255 | 1,256 | 1,256 | 1,257 | 1,258 | 1,259 |
H
=
Height (mm)
E
=
N° Elem.
| H Height (mm) | E N° Elem. | 500 | 530 | 630 | 650 | 680 | 730 | 830 | 850 | 900 | 1200 | 1500 | 1800 | 2000 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 160 | 4 | Watt = W = | 205 | 217 | 258 | 266 | 279 | 299 | 340 | 348 | 369 | 492 | 615 | 737 | 819 |
| 240 | 6 | Watt = W = | 286 | 303 | 360 | 372 | 389 | 417 | 475 | 486 | 515 | 686 | 858 | 1029 | 1144 |
| 320 | 8 | Watt = W = | 361 | 383 | 455 | 469 | 491 | 527 | 599 | 614 | 650 | 867 | 1083 | 1300 | 1444 |
| 400 | 10 | Watt = W = | 432 | 458 | 544 | 561 | 587 | 630 | 717 | 734 | 777 | 1036 | 1295 | 1554 | 1727 |
| 480 | 12 | Watt = W = | 499 | 528 | 628 | 648 | 678 | 728 | 828 | 848 | 897 | 1197 | 1496 | 1795 | 1994 |
| 560 | 14 | Watt = W = | 562 | 596 | 708 | 731 | 765 | 821 | 933 | 956 | 1012 | 1349 | 1686 | 2024 | 2249 |
| 640 | 16 | Watt = W = | 623 | 660 | 785 | 810 | 847 | 909 | 1034 | 1059 | 1121 | 1495 | 1869 | 2242 | 2491 |
| 720 | 18 | Watt = W = | 681 | 722 | 858 | 885 | 926 | 994 | 1130 | 1158 | 1226 | 1634 | 2043 | 2451 | 2724 |
| 800 | 20 | Watt = W = | 737 | 781 | 928 | 958 | 1002 | 1075 | 1223 | 1252 | 1326 | 1768 | 2210 | 2652 | 2946 |
| 880 | 22 | Watt = W = | 790 | 838 | 996 | 1027 | 1075 | 1154 | 1312 | 1343 | 1422 | 1896 | 2370 | 2844 | 3160 |
| 960 | 24 | Watt = W = | 842 | 892 | 1060 | 1094 | 1144 | 1229 | 1397 | 1431 | 1515 | 2020 | 2525 | 3029 | - |
| 1040 | 26 | Watt = W = | 891 | 944 | 1123 | 1158 | 1212 | 1301 | 1479 | 1515 | 1604 | 2138 | 2673 | - | - |
| 1120 | 28 | Watt = W = | 939 | 995 | 1183 | 1220 | 1276 | 1370 | 1558 | 1596 | 1689 | 2253 | 2816 | - | - |
| 1200 | 30 | Watt = W = | 984 | 1044 | 1240 | 1280 | 1339 | 1437 | 1634 | 1674 | 1772 | 2363 | - | - | - |
| 1280 | 32 | Watt = W = | 1029 | 1090 | 1296 | 1337 | 1399 | 1502 | 1708 | 1749 | 1852 | 2469 | - | - | - |
| 1360 | 34 | Watt = W = | 1071 | 1136 | 1350 | 1393 | 1457 | 1564 | 1778 | 1821 | 1928 | 2571 | - | - | - |
| 1440 | 36 | Watt = W = | 1112 | 1179 | 1402 | 1446 | 1513 | 1624 | 1847 | 1891 | 2002 | - | - | - | - |
| 1520 | 38 | Watt = W = | 1152 | 1221 | 1452 | 1498 | 1567 | 1682 | 1912 | 1959 | 2074 | - | - | - | - |
| 1600 | 40 | Watt = W = | 1190 | 1262 | 1500 | 1548 | 1619 | 1738 | 1976 | 2024 | 2143 | - | - | - | - |
