Blues

Stainless steel radiator characterized by horizontal elements and an essential and elegant ensemble, which enriches the bathroom not only with a heating element but also with a decorative object. BLUES is available in two finishes: mirror stainless steel and satin stainless steel.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

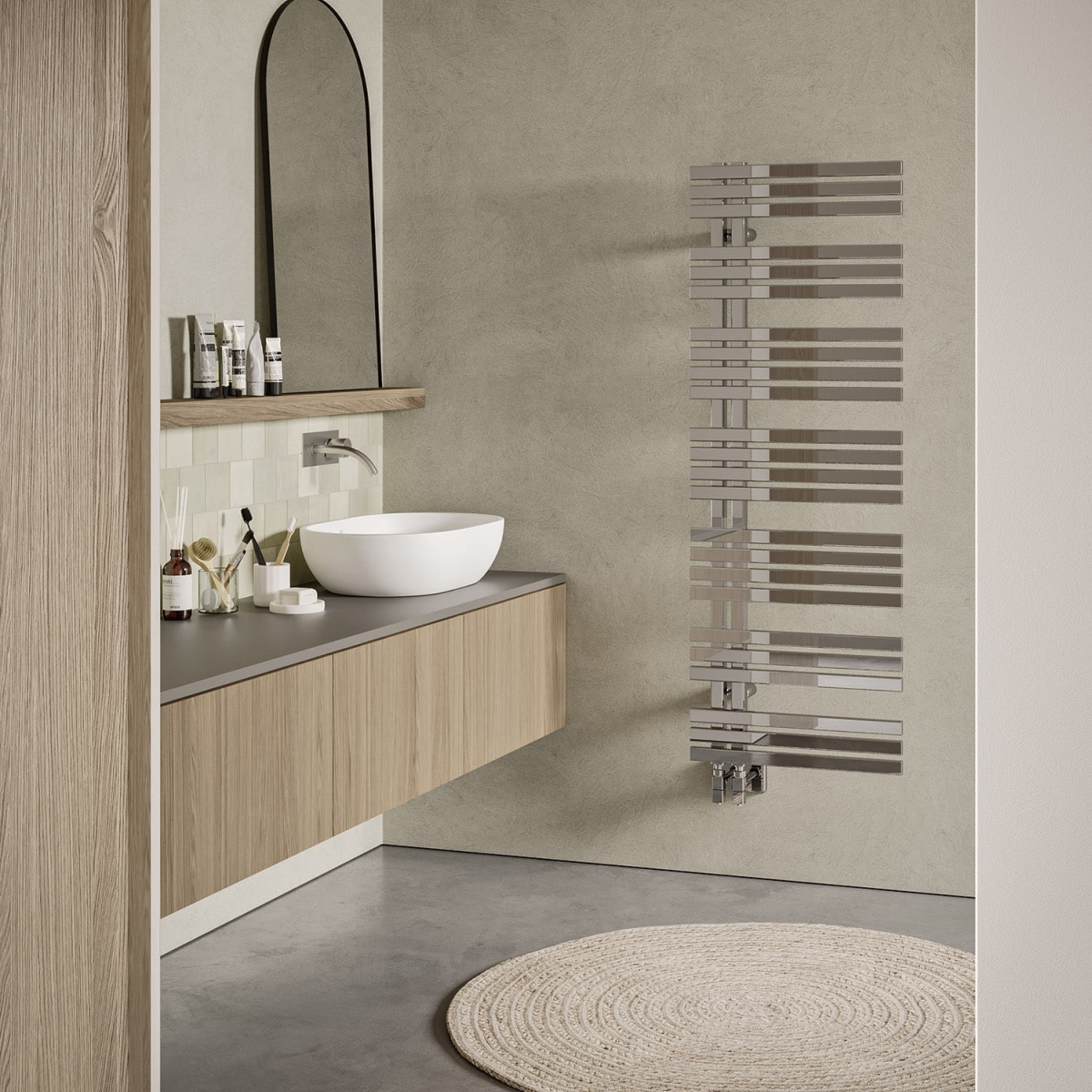

Blues, Hight 1400 mm, Lenght 500 mm, Chrome-plated Blues, Hight 1400 mm, Lenght 500 mm, Chrome-plated, (detail) Blues, Hight 1400 mm, Lenght 500 mm, Satin, Blues, Hight 1400 mm, Lenght 500 mm, Chrome-plated, Blues, Hight 1400 mm, Lenght 500 mm, Chrome-plated, (detail), Blues, Hight 1400 mm, Lenght 500 mm, Satin, (detail),

Calculate the power

How to choose the Blues radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space

Saving...

Configure your Blues

Configure your Blues

770 14 rails 3 espaces
1190 20 rails 5 espaces
1400 24 rails 6 espaces
1700 28 rails 7 espaces
Choose most used
Cancel selection
Connection left/right with angle valve
50mm connection with angle valve
Select valve finish
Select surface

-

Thermal power
Showroom Find Showroom
Don't know the thermal power?

Discover accessories

APPUFIORE APPUQUADRO APPUTONDO ASTEUTONDO20
VALKROSQUCU VALKRODIRCU VALKRO50SQUCU VALKRO50DIRCU VALKROSALVCU VALKROSQMIST TESTELIQ3
VALKITCOPTU VALKITCOPT

Construction features

  • stainless steel towel warmer radiator
  • 15x30 mm rectangular tube horizontal elements
  • side manifolds with 30 x 30 mm square section
  • threading at the ends of the lower manifolds, 1/2" Gas right
  • maximum working pressure 4 bar
  • maximum working temperature 95°C
Blues
Radiator with domestic hot water system

Radiator with domestic hot water system
Low temperature

Low temperature
Hydraulic radiator

Hydraulic radiator

Model Depth (mm) Height (mm) Width (mm) Conn. centre (mm) Weight (kg) Capacity (lt) Exponent
770 14 rails 3 espaces 45,0 770 500 50 6,23 3,62 763,8 192,6 224,0 168,0 115,9 68,7 1,290
1190 20 rails 5 espaces 45,0 1190 500 50 8,94 5,34 1.118,5 282,1 328,0 244,9 168,0 98,8 1,310
1400 24 rails 6 espaces 45,0 1400 500 50 10,60 6,39 1.326,5 334,5 389,0 288,5 196,2 113,9 1,340
1700 28 rails 7 espaces 45,0 1700 500 50 12,45 7,57 1.568,6 395,6 460,0 340,4 230,8 133,5 1,350

(*) Thanks to the high performance of Irsap BLUES radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment
  • 4 wall fixings
  • 2 air vent valves of 1/2"

Type Description Document Downloads

Technical document

Catalogs

 Catalog 2023 Catalog 2023

Catalogs

 Color chart Color chart

Installation Manual

 FOISTR1113M FOISTR1113M
