Dedalo

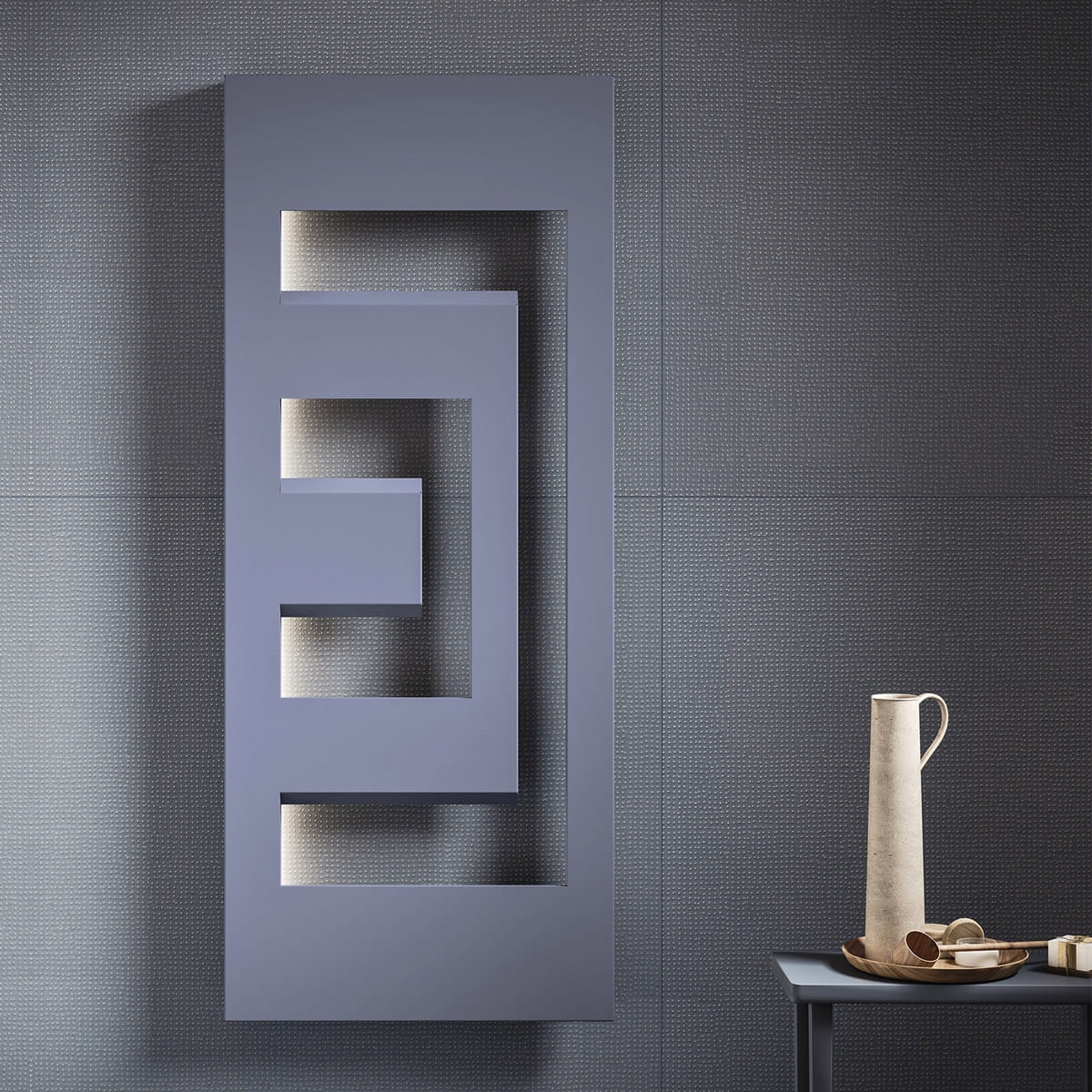

Lines that chase each other forming a geometric sign of high personality. Precisely worked steel characterizes DEDALO with a defined personality. The LED light (in the model with light) creeps into the spaces, forming plays of light and shadow. It is supplied with the innovative concealed hydraulic connection system installed directly in the company. Available in two models, DEDALO P and DEDALO L, with two thermal powers.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Construction features
- radiating panel
- 1/2” Gas right threading
- maximum working pressure 4 bar
- maximum working temperature 95°C
.jpg)
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent |
|---|---|---|---|---|---|---|---|---|
| Dedalo | 90,0 | 900 | 498 | 50 | 18,00 | 0,70 | 846,0 213,0 248,0 182,0 122,2 69,7 | 1,386 |
| Dedalo with led | 90,0 | 900 | 498 | 50 | 18,00 | 0,70 | 846,0 213,0 248,0 182,0 122,2 69,7 | 1,386 |
| Dedalo | 90,0 | 1600 | 660 | 50 | 23,20 | 1,40 | 2.269,0 563,0 665,0 509,5 361,4 222,7 | 1,194 |
| Dedalo with led | 90,0 | 1600 | 660 | 50 | 23,20 | 1,40 | 2.269,0 563,0 665,0 509,5 361,4 222,7 | 1,194 |
Thanks to the high performance of Irsap DEDALO radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula Q=Qn (Δt / 50)n
Standard equipment
- innovative water connection system installed on the product complete with fittings for connection to copper pipes (12, 14 and 15 mm diameter) and multilayer pipes (14 x 2 thick and 16 x 2 thick)
- wall fixing system built into the product column
- LED lighting system optional
- air vent
| Type | Description | Document | Downloads |
|---|---|---|---|
|
Technical document |
|||
|
Catalogs |
Catalog 2023 | Catalog 2023 | |
|
Catalogs |
Color chart | Color chart | |
|
Installation Manual |
FOISTR0536M | FOISTR0536M | |
|
Installation Manual |
FOISTR0567M | FOISTR0567M | |
|
Manual |
FOISTR1394M | FOISTR1394M |
| Type | Description | Document | Downloads |
|---|---|---|---|
|
3D Model |
DEDALO | DEDALO |
|
The Designer
Synthesis design was born in Turin in 1988, founders Carlo and Giorgio Gaino. The studio has been operating for years in the automotive, nautical and product design sector. The close collaboration with the company has allowed the development of new technological systems, which make the insertion of the radiator into the environment harmonious and simplify installation. The design approach that has been the basis of the projects created for Irsap: Dedalo, Tratto, Sax and Net has combined creativity, material experimentation, and a careful formal and perceptive study.
Synthesis Design
Calculate the power
How to choose the Dedalo radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
