Face_Air

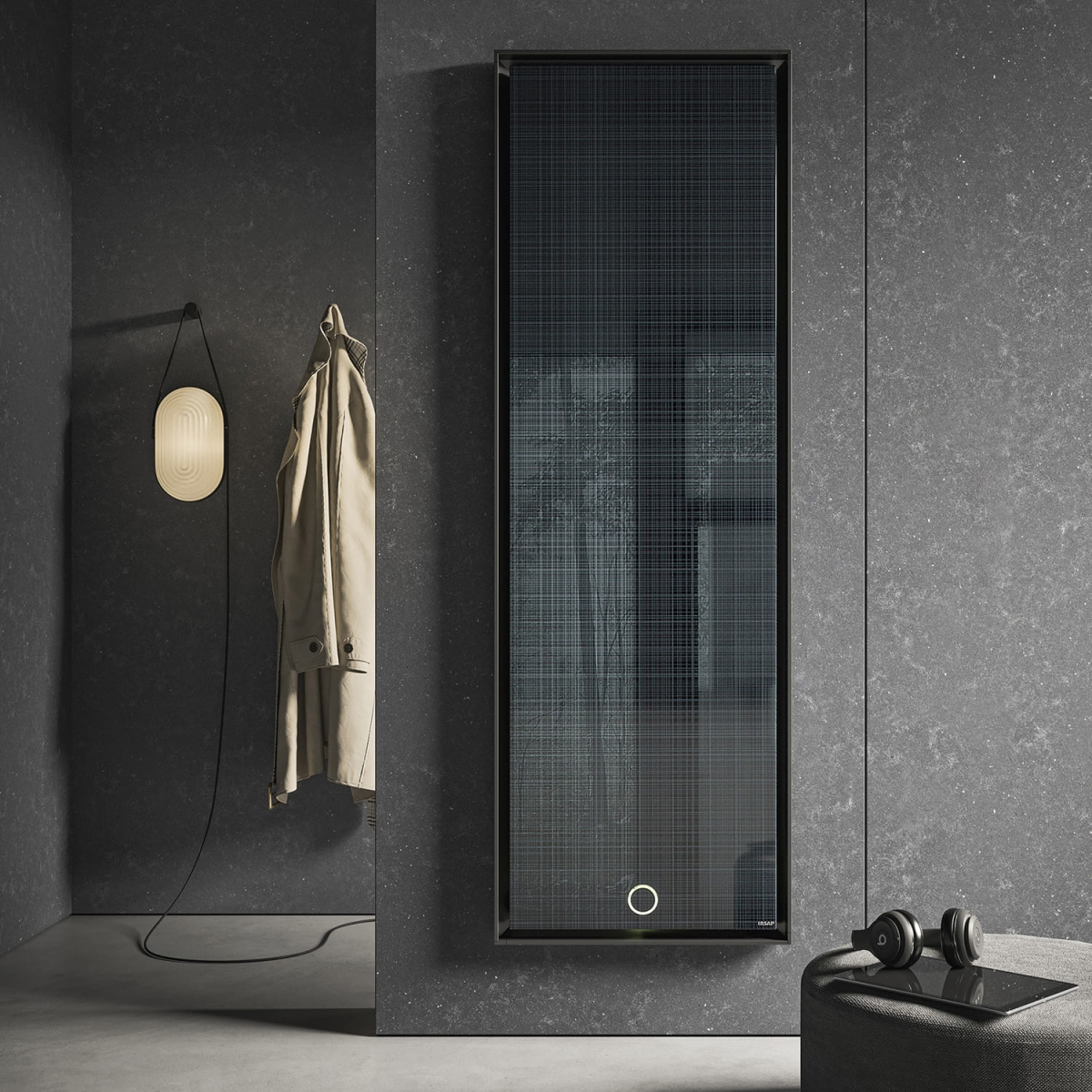

FACE_AIR is a steel radiant plate. Small integrated silenced fans add power to the radiator performance. The heating body hides all fasteners, connections and electrical connections from view. The exclusive stainless steel finishes give FACE_AIR the elegance of a single piece, while the colors of the IRSAP range offer perfect continuity with the stylistic key of the environment.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Calculate the power
How to choose the Face_Air radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
Calculate the thermal power of your Face_Air
Configure your Face_Air
Construction features
- radiating panel
- 1/2” Gas right threading
- maximum working pressure 4 bar
- maximum working temperature 95°C
- radial fans with low fuel motors
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent |
|---|---|---|---|---|---|---|---|---|
| FACE_Air 1600 x 500 | 75,0 | 1597 | 500 | 50 | 31,90 | 1,20 | 2.559,0 645,0 750,0 568,7 398,1 240,8 | 1,240 |
| FACE_Air 1600 x 600 | 75,0 | 1597 | 598 | 50 | 38,80 | 1,60 | 3.412,0 860,0 1.000,0 760,0 533,5 324,0 | 1,230 |
| FACE_Air 1800 x 500 | 75,0 | 1797 | 500 | 50 | 36,70 | 1,40 | 3.207,0 808,4 940,0 712,8 498,9 301,8 | 1,240 |
| FACE_Air 1800 x 600 | 75,0 | 1797 | 598 | 50 | 43,60 | 1,80 | 4.163,0 1.049,2 1.220,0 927,2 650,9 395,3 | 1,230 |
(*) Thanks to the high performance of Irsap FACE_AIR radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula: Q=Qn (∆t / 50)n
Standard equipment
- 2 lockshield valves 1/2" M 1/2" F – FE connection
- flexible pipes for ease of installation
- wall fastening system
- power supply unit
- modulating thermostatic head
