Funky_S Air Electric

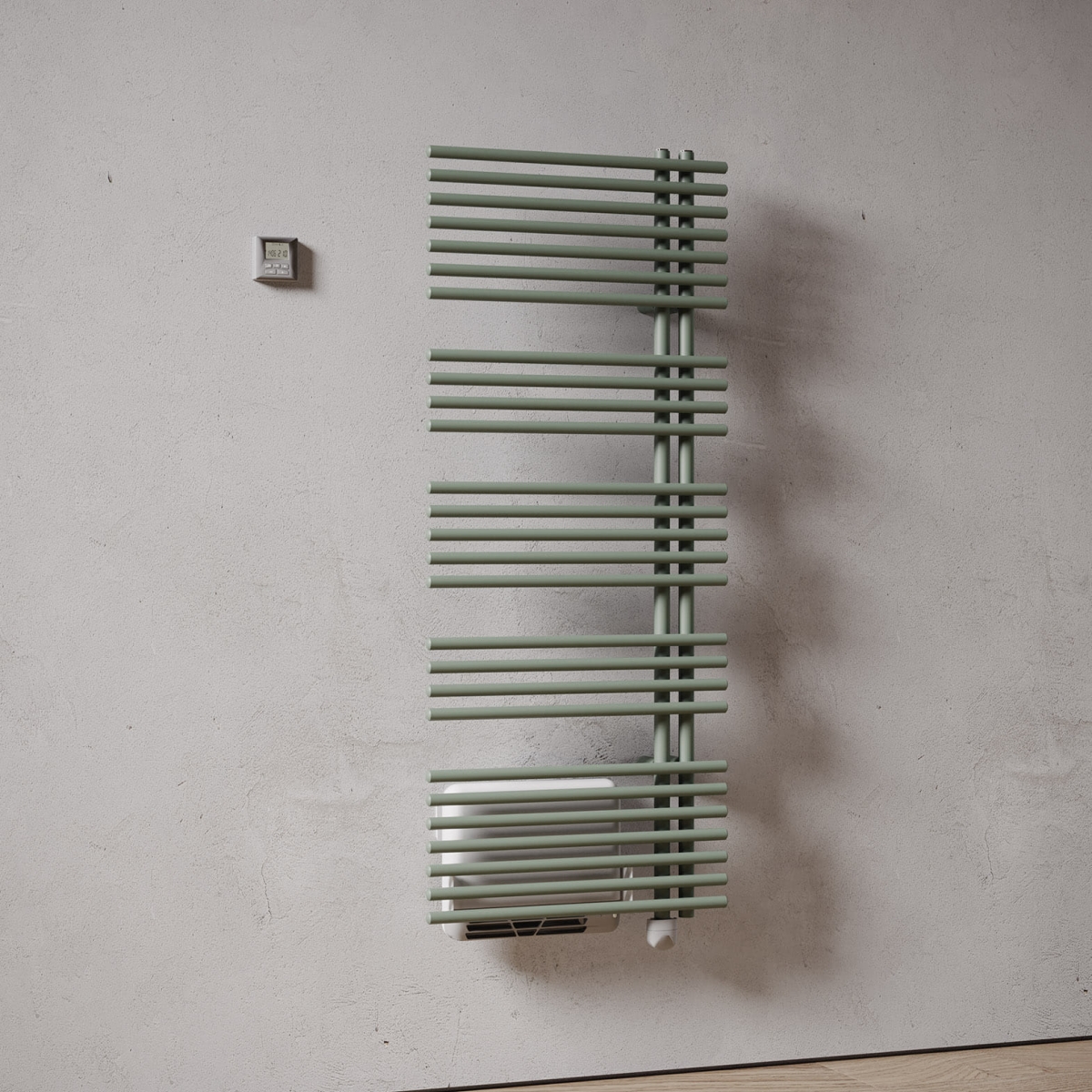

FUNKY_S AIR Electric is an electric radiator with booster. The radiator is filled with a coolant and is combined with a 1000 watt electric power booster system. This system provides a uniform temperature in the room where it is installed. Available in 3 heights and a width of 600 mm.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Calculate the power
How to choose the Funky_S Air Electric radiator for your home? How to know what is the right power to heat each room? Online heat demand allows you to identify the most suitable radiator for your living space
MOD_CALCULATOR_PRODUCT_STEPS_ELECTRIC_POWER_TITLE
Configure your Funky_S Air Electric
Configure your Funky_S Air Electric
-
Electric power
Discover accessories
Loading...
Construction features
- electric steel towel warmer radiator
- horizontal elements featuring with a 23 mm diameter
- side round manifolds with a 30 mm diameter
- the radiator is filled with a cooling liquid and is combined with a booster system of electric power of 1000 watts.
- This blower system provides a uniform temperature as the room in which it is installed.
| Model | Depth (mm) | Height (mm) | Width (mm) | Weight (kg) | Electric Power (Watt) | Electric Power with Booster (Watt) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DX | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1170 22 rails 3 espaces | 122,0 | 1230 | 600 | 21,80 | 500 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

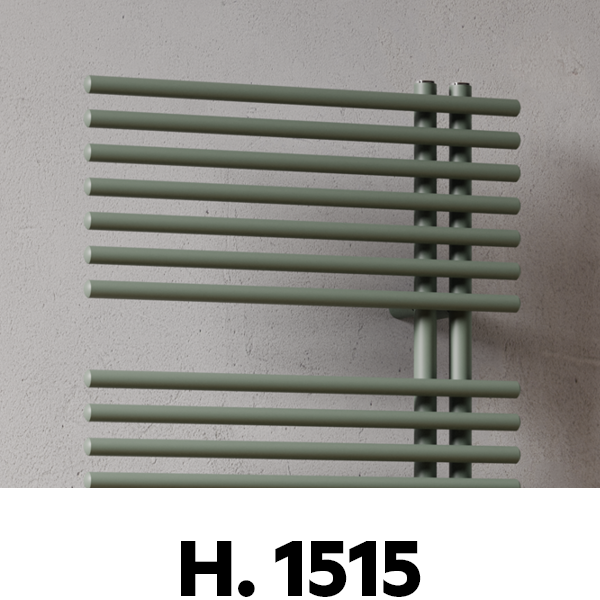

| 1455 27 rails 4 espaces | 122,0 | 1515 | 600 | 25,54 | 750 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

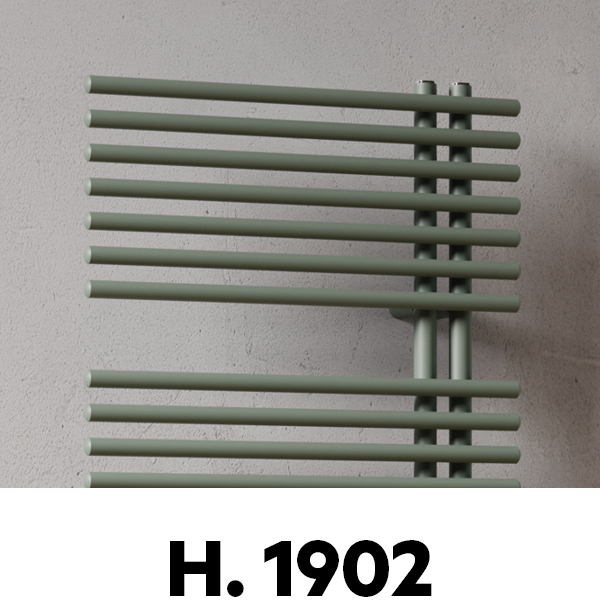

| 1842 36 rails 4 espaces | 122,0 | 1902 | 600 | 31,58 | 1000 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The radiator will be supplied with the resistance always mounted on the inner collector.
Standard equipment
- 4 adjustable wall fixing brackets in the same color of the radiator
- Wireless Remote control
| Type | Description | Document | Downloads |
|---|---|---|---|
|
Technical document |
|||
|
Catalogs |
Catalog 2023 | Catalog 2023 | |
|
Catalogs |
Color chart | Color chart | |
|
Product certification |
DC_UE_240003_Funky_S_Air_YA_YB_A_Z | DC_UE_240003_Funky_S_Air_YA_YB_A_Z | |
|
Product certification |
DC_UE_240005_Jazz_S_Air | DC_UE_240005_Jazz_S_Air | |
|
Product certification |
DC_UE_240060_FUNKY_S_ELEC_AIR | DC_UE_240060_FUNKY_S_ELEC_AIR | |
|
Product certification |
DC_UE_240062_JAZZ_S_ELEC_AIR | DC_UE_240062_JAZZ_S_ELEC_AIR | |
|
User manual |
FOISTR0847M | FOISTR0847M | |
|
Installation Manual |
FOISTR1386M | FOISTR1386M | |
|
Manual |
FOISTR1016M | FOISTR1016M | |
|
User manual |
FOISTR0749M | FOISTR0749M |
