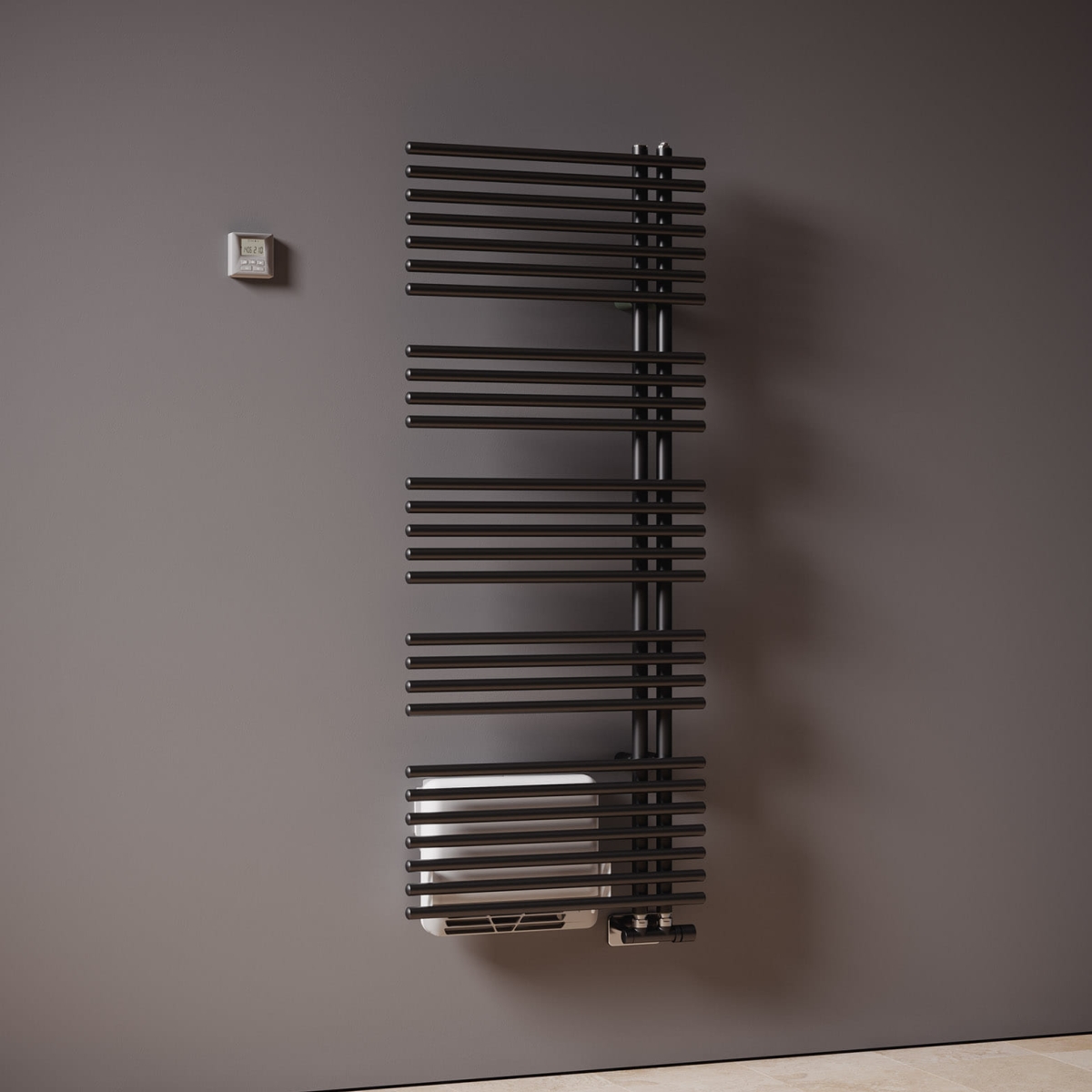

Funky_S Air Mix
Original features full of personality and creativity, give shape to this towel warmer of essential lines. FUNKY_S AIR MIX takes inspiration from the rhythm pervading its forms and creating a free and versatile approach, able to transform and decorate any bathroom’s space, making it the leading actor.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Calculate the power
How to choose the Funky_S Air Mix radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
Calculate the thermal power of your Funky_S Air Mix
Configure your Funky_S Air Mix
Configure your Funky_S Air Mix
-
Thermal power
Discover accessories
Loading...
Construction features
- steel towel warmer radiator
- horizontal elements featuring with a 23 mm diameter
- side round manifolds with a 30 mm diameter
- manifold threading 1/2” Gas right
- maximum working pressure 4 bar
- maximum working temperature 95°C
- hydraulic radiator equipped with a booster mounted behind the radiator with a power of 1,000 Watts
- not suitable for installation with a single-pipe system
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent | Electric Power with Booster (Watt) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DX | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

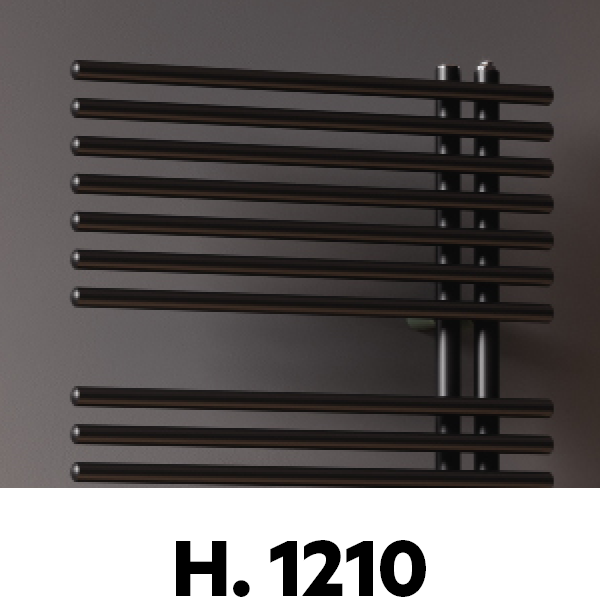

| 1170 22 rails 3 espaces | 122,0 | 1210 | 600 | 50 | 14,79 | 4,73 | 1.951,5 491,9 572,0 438,6 311,5 192,3 | 1,190 | 1000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

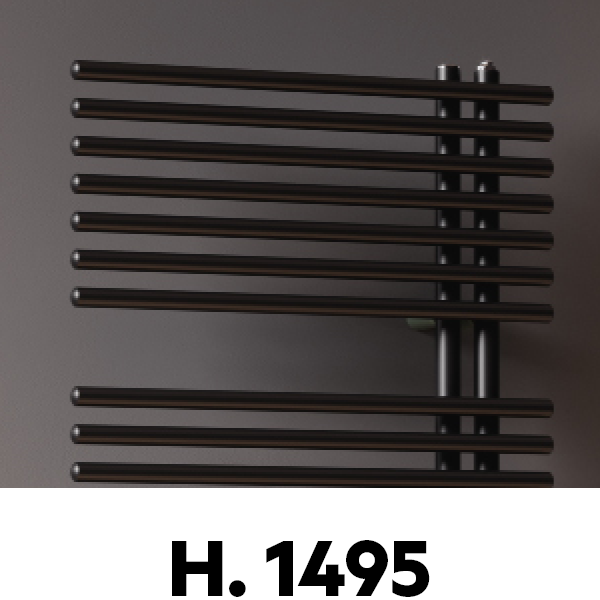

| 1455 27 rails 4 espaces | 122,0 | 1495 | 600 | 50 | 17,53 | 5,75 | 2.346,8 591,5 687,8 520,8 363,9 219,5 | 1,246 | 1000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

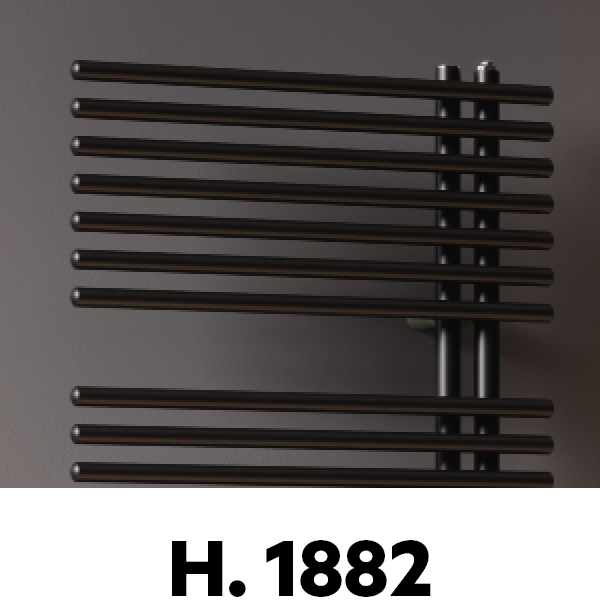

| 1842 36 rails 4 espaces | 122,0 | 1882 | 600 | 50 | 21,79 | 7,57 | 3.039,1 766,0 890,7 675,7 473,2 286,4 | 1,238 | 1000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thanks to the high performance of Irsap FUNKY_S AIR MIX radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula Q=Qn (Δt / 50)n.
Standard equipment
- 4 wall fixing in the same color as the radiator
- 2 1/2” hidden airvents complete with valve cover
