Get Up Air Mix

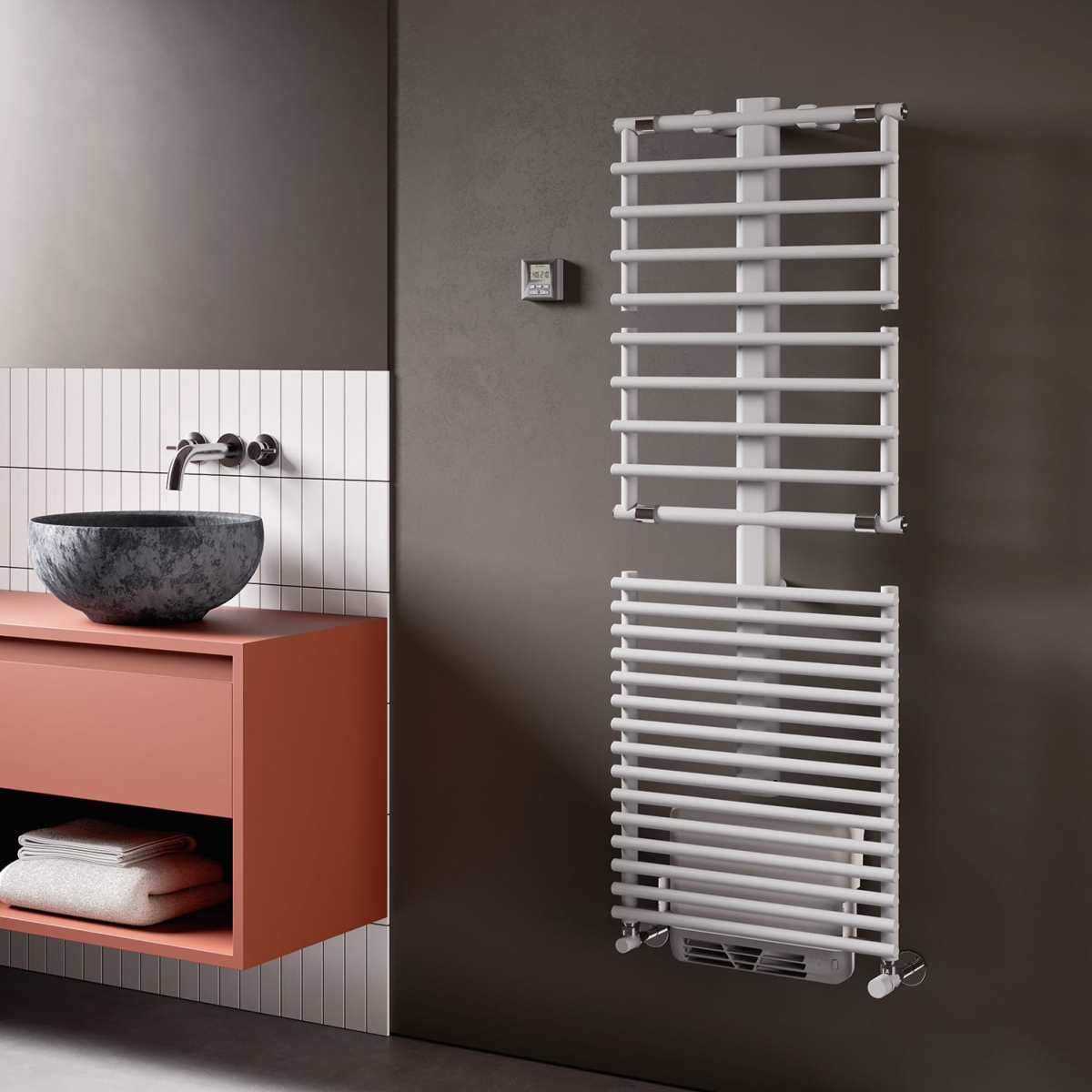

Thanks to its construction features, the GET UP AIR MIX radiator can be used as a drying rack. GET UP AIR MIX is combined with a 1000 Watt electric power booster system. This system provides a uniform temperature in the room where it is installed.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Calculate the power
How to choose the Get Up Air Mix radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
Calculate the thermal power of your Get Up Air Mix
Configure your Get Up Air Mix
Configure your Get Up Air Mix
-
Thermal power
Discover accessories
Loading...
Construction features
- steel towel warmer
- 23 mm diameter horizontal round bar heating elements
- 30 mm diameter round lateral manifolds
- threading at the ends of the manifolds right Gas 1/2”
- maximum working pressure 4 bar
- maximum working temperature 95°C
- maximum capacity of the towel rails: 7 kg
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent | Electric Power with Booster (Watt) |
|---|---|---|---|---|---|---|---|---|---|

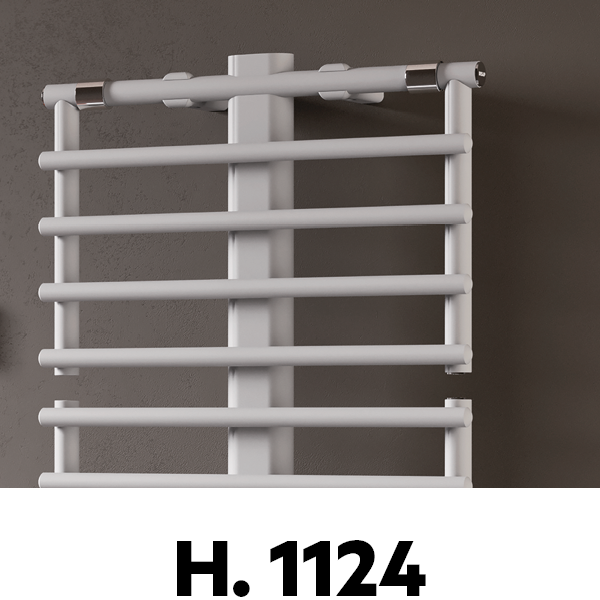

| 1076 20 rails 1 espace | 122,0 | 1124 | 550 | 500 | 17,20 | 6,88 | 2.132,5 537,5 625,0 472,8 329,9 198,6 | 1,251 | 1000 |

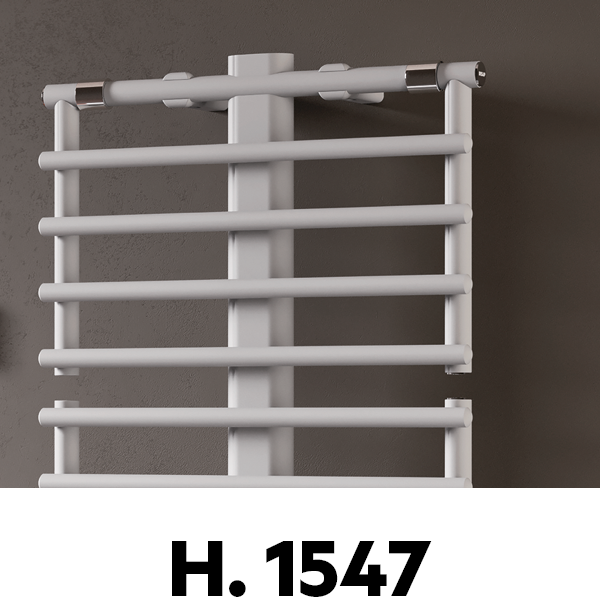

| 1499 25 rails 2 espaces | 122,0 | 1547 | 550 | 500 | 22,10 | 9,18 | 2.644,3 666,5 775,0 582,7 403,4 240,2 | 1,278 | 1000 |
(*) Thanks to the high performance of Irsap GET UP AIR MIX radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula Q=Qn (Δt / 50)n
Standard equipment
- 3 wall fixings
- 1 venting valve of 1/8” for radiators model M (height 1076 mm); 1 venting valve of 1/8” and 1 venting valve of 1/2" for radiators model L (height 1499 mm)
