Jazz_S

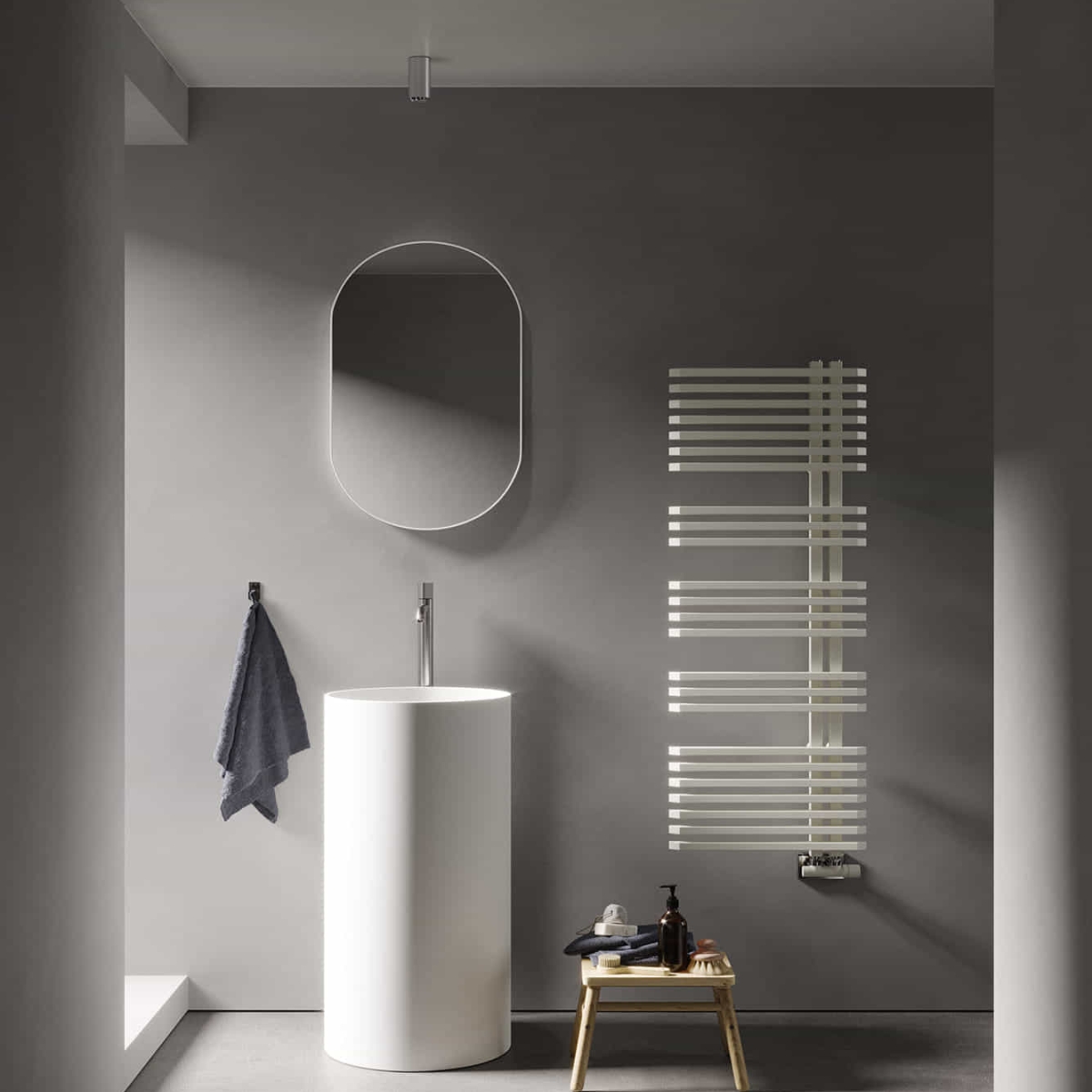

A harmony of forms full of technique and improvisation coming from two different sensibilities, JAZZ_S is an extremely versatile towel warmer. Strictly squared in its sober and essential shape, it well represents the contemporary trend. Available in 3 heights and 2 widths. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Calculate the power
How to choose the Jazz_S radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
Calculate the thermal power of your Jazz_S
Configure your jazz_s
Loading...
Configure your jazz_s
-
Thermal power
Discover accessories
Loading...
Construction features
- steel towel warmer radiator
- horizontal elements featuring rectangular tubes 20x25 mm section
- 30x30 mm side squared manifolds
- manifold threading 1/2” Gas right
- maximum working pressure 4 bar
- maximum working temperature 95°C
- 50 mm connection
- not suitable for installation with a single-pipe system
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent | Mixed Function (Watts) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DX | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

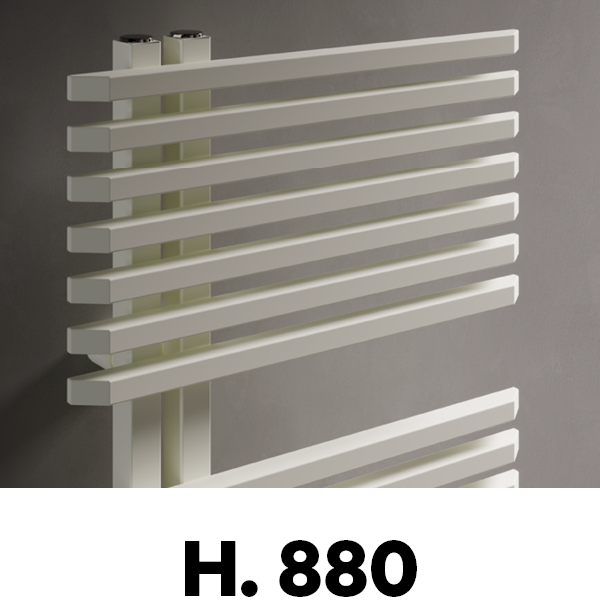

| 880 18 rails 2 espaces | 55,0 | 880 | 500 | 50 | 10,04 | 4,09 | 1.416,3 357,0 415,1 318,3 226,1 139,6 | 1,189 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

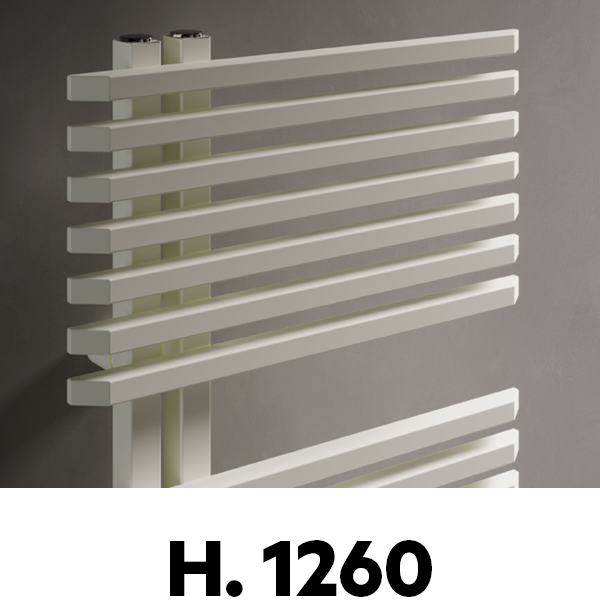

| 1260 24 rails 4 espaces | 55,0 | 1260 | 500 | 50 | 13,59 | 5,42 | 1.844,9 465,0 540,7 413,7 292,9 180,1 | 1,200 | 400 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1460 29 rails 4 espaces | 55,0 | 1460 | 500 | 50 | 16,13 | 6,47 | 2.175,1 548,3 637,5 486,0 342,6 209,3 | 1,216 | 700 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1460 29 rails 4 espaces | 55,0 | 1460 | 600 | 50 | 18,54 | 7,45 | 2.493,7 628,6 730,9 556,8 392,1 239,2 | 1,219 | 700 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1820 38 rails 4 espaces | 55,0 | 1820 | 600 | 50 | 23,91 | 9,65 | 3.103,2 782,2 909,5 687,6 479,4 288,4 | 1,253 | 1000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thanks to the high performance of Irsap JAZZ_S radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula Q=Qn (Δt / 50)n
Standard equipment
- 4 wall fixing in the same color as the radiator
- 2 1/2” hidden airvents complete with valve cover
