Jazz_S Air Mix
A harmony of forms full of technique and improvisation coming from two different sensibilities, JAZZ_S AIR MIX is an extremely versatile towel warmer. Strictly squared in its sober and essential shape, it well represents the contemporary trend.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Calculate the power
How to choose the Jazz_S Air Mix radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
Calculate the thermal power of your Jazz_S Air Mix
Configure your Jazz_S Air Mix
Configure your Jazz_S Air Mix
-
Thermal power
Discover accessories
Loading...
Construction features
- steel towel radiator
- horizontal elements 25x20 mm rectangular steel tubes
- side square collectors 30x30 mm section
- manifolds threading 1/2 “Gas right
- maximum working pressure of 4 bar
- maximum working temperature 95°C

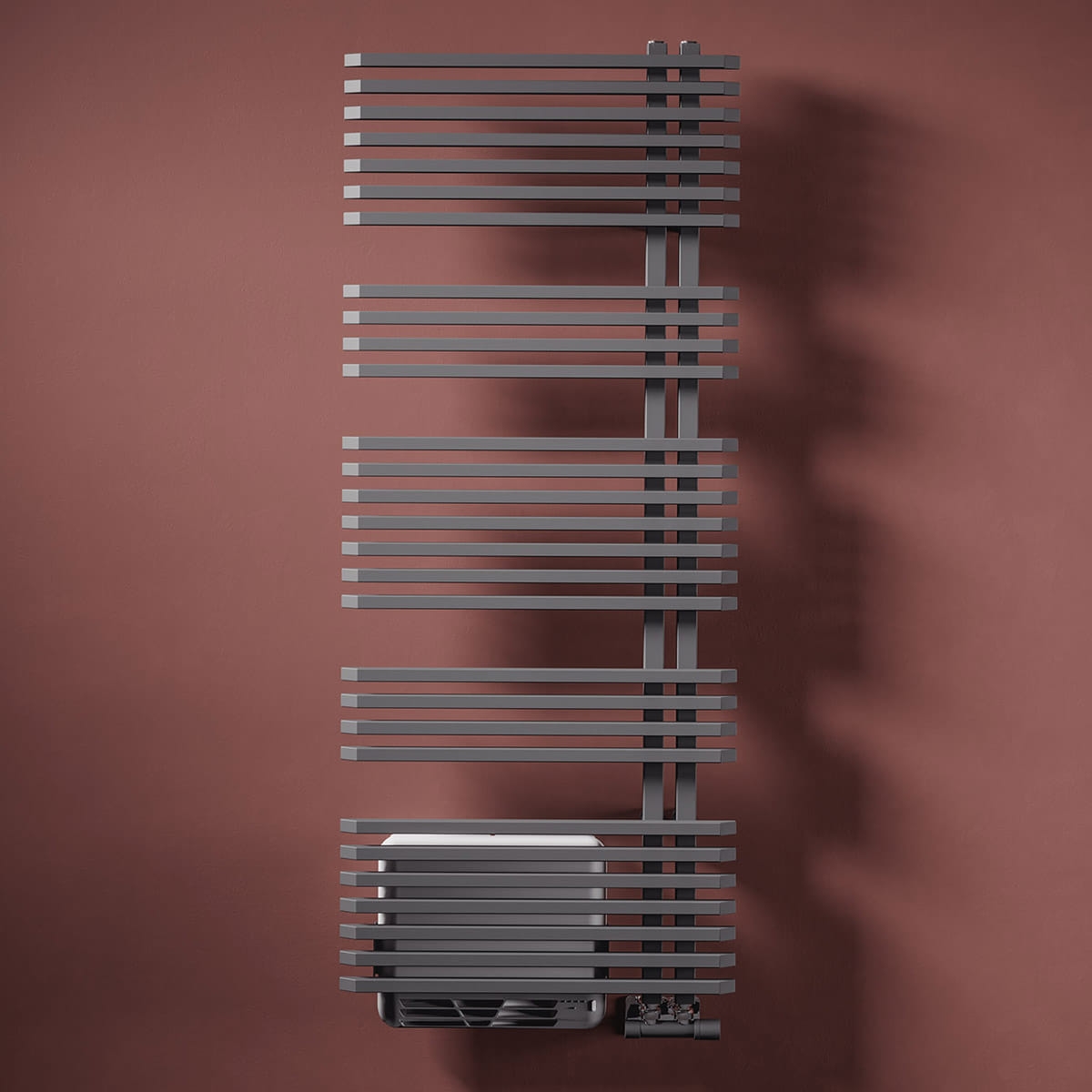

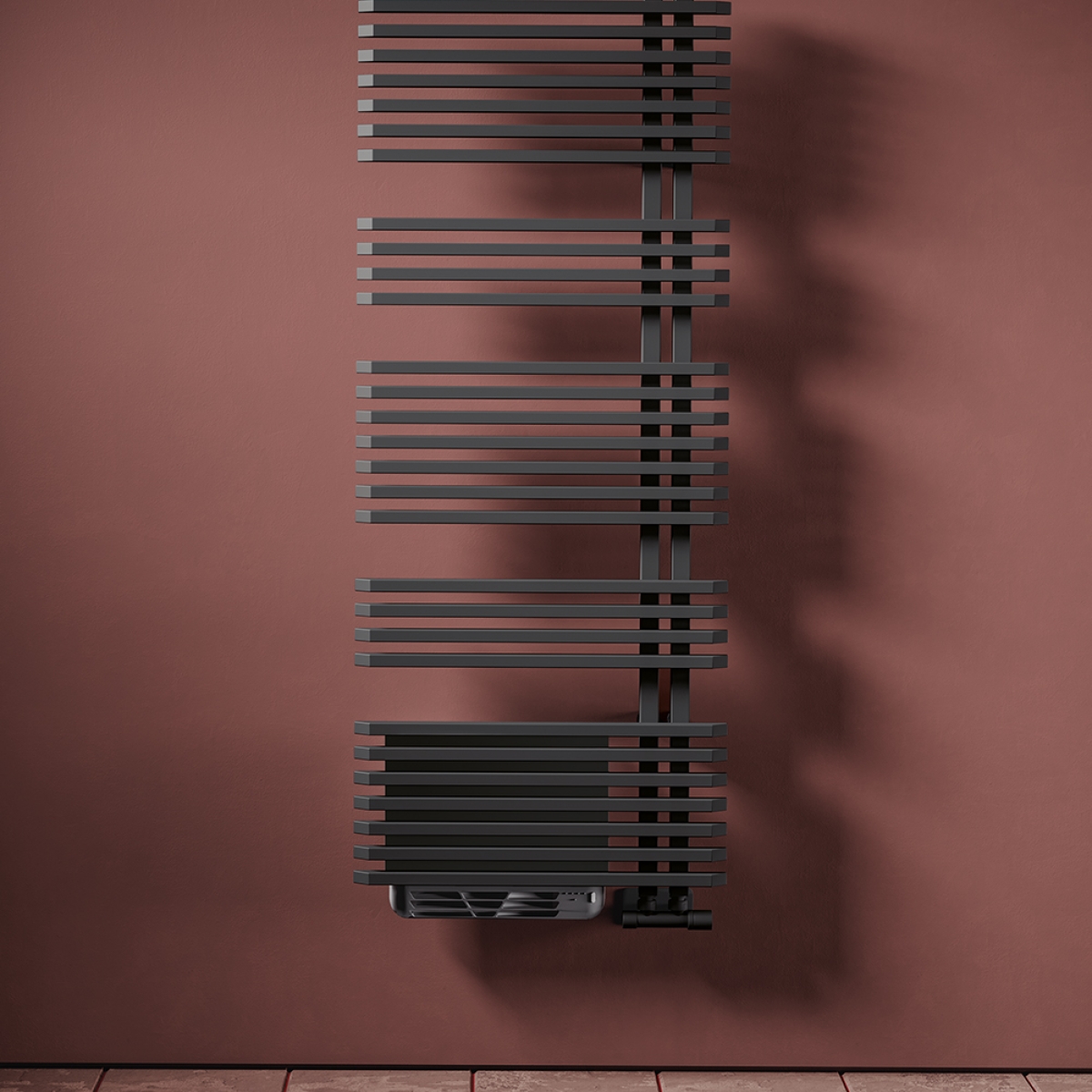

- hydraulic radiator equipped with a booster mounted behind the radiator with a power of 1,000 Watts
- not suitable for installation with a single-pipe system
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent | Electric Power with Booster (Watt) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DX | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

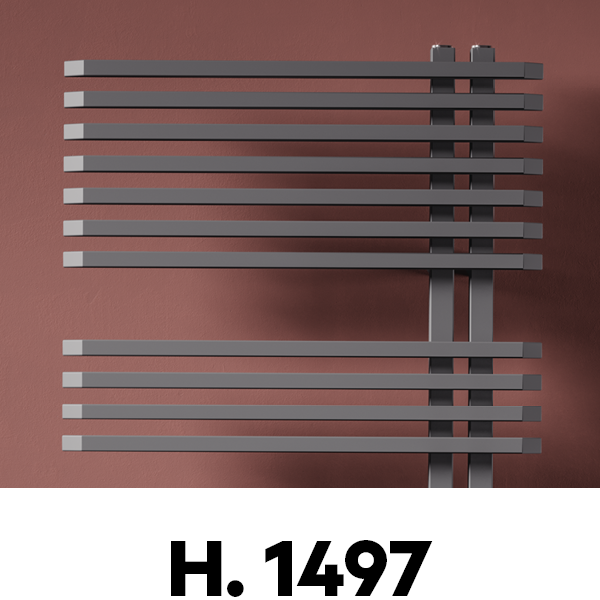

| 1460 38 rails 4 espaces | 124,0 | 1497 | 600 | 50 | 21,14 | 7,45 | 2.493,7 628,6 730,9 556,8 392,1 239,2 | 1,219 | 1000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

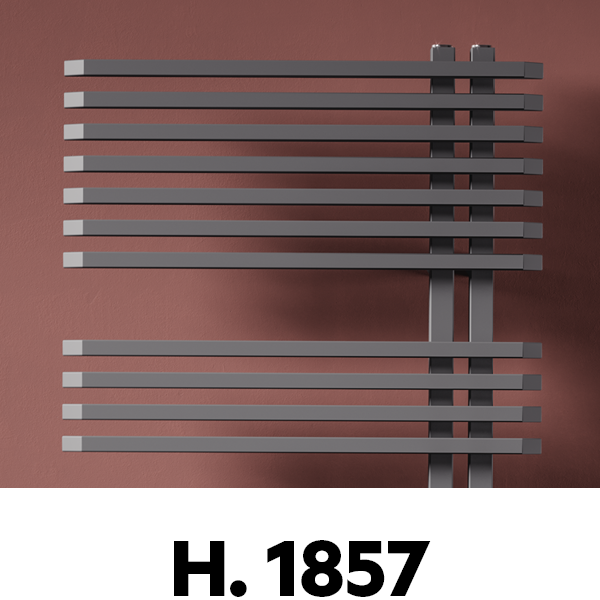

| 1820 29 rails 4 espaces | 124,0 | 1857 | 600 | 50 | 26,51 | 9,65 | 3.103,2 782,2 909,5 687,6 479,4 288,4 | 1,253 | 1000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thanks to the high performance of Irsap JAZZ_S AIR MIX radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula Q=Qn (Δt / 50)n
Standard equipment
- 4 wall fixing in the same color as the radiator
- 2 1/2” hidden airvents complete with valve cover
| Type | Description | Document | Downloads |
|---|---|---|---|
|
Technical document |
|||
|
Catalogs |
Catalog 2023 | Catalog 2023 | |
|
Catalogs |
Color chart | Color chart | |
|
Product certification |
DC_UE_240035_Jazz_S_Air_Mix | DC_UE_240035_Jazz_S_Air_Mix | |
|
Product certification |
DC_UE_240056_JAZZ_S_EC_BST_R | DC_UE_240056_JAZZ_S_EC_BST_R | |
|
User manual |
FOISTR0847M | FOISTR0847M | |
|
Installation Manual |
FOISTR0719M | FOISTR0719M | |
|
User manual |
FOISTR0750M | FOISTR0750M |
