Oddo

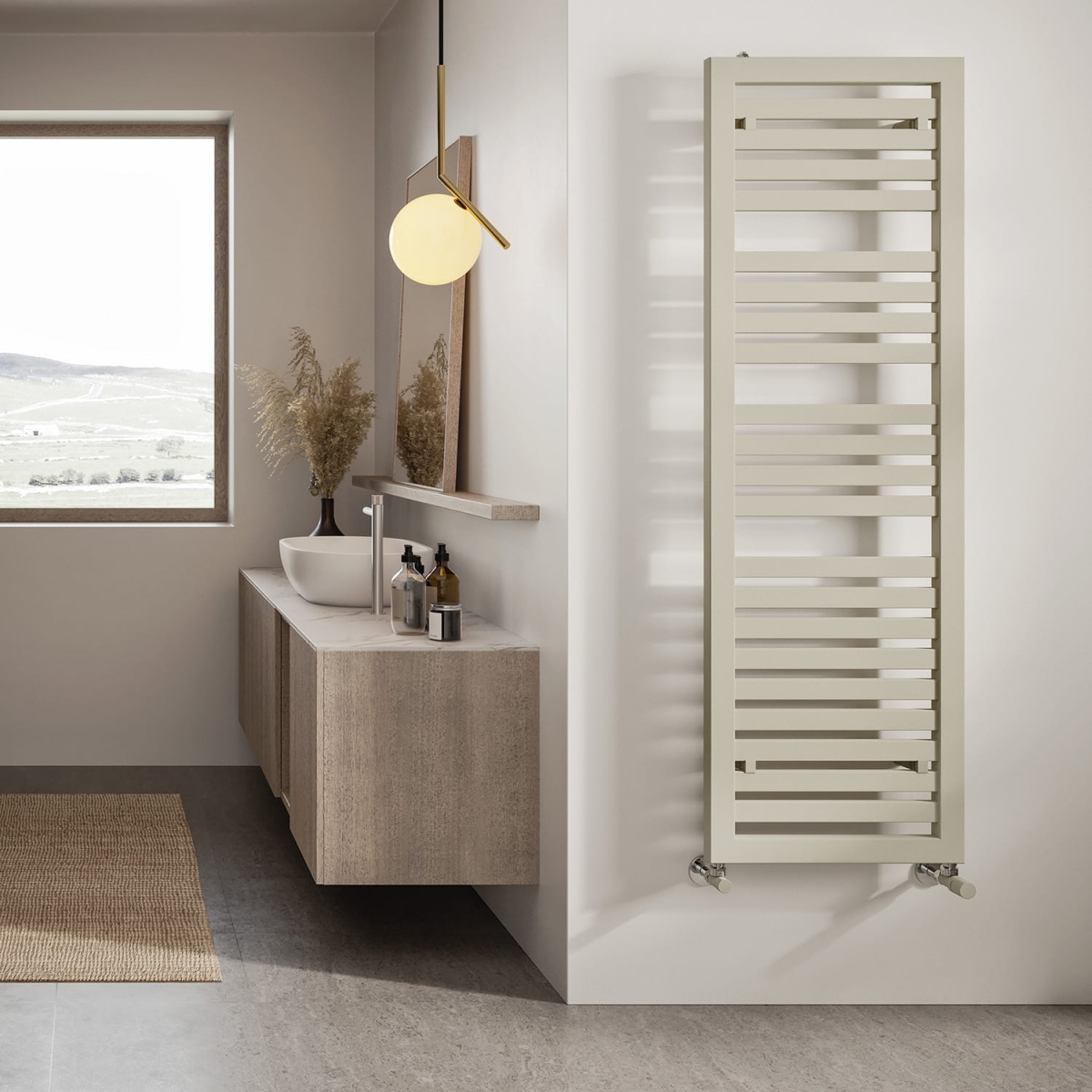

Strong personality for a reversible, modern, functional project. This is the singular peculiarity of ODDO, a towel warmer with a frame that summarizes its functionality. The choice of the aesthetic side is personal: the visual inspiration is interpreted at the time of installation, side with flat tube, side with rounded tube. Available in 4 heights and 3 widths. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

Calculate the power

How to choose the Oddo radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space

Model	Elements	Depth ^(mm)	Length ^(mm)	Height ^(mm)	Thermal power ^(watt)
{{ battery.modello }}	{{ battery.n_elementi }}	{{ battery.profondita }}	{{ battery.lunghezza }}	{{ battery.altezza }}	{{ battery.power }}

Configure your Oddo

804 10 rails 1 espace

1224 16 rails 2 espaces

1584 21 rails 3 espaces

1884 25 rails 4 espaces

3 plugs 1/2" and 1 blind plug, standards connections

50 mm bottom connection

Choose most used

Connection left/right with angle valve

50mm connection with angle valve

Select valve finish

Standard white

Chrome

MATCHING YOUR RADIATOR

-

Thermal power

Showroom Find Showroom

Don't know the thermal power?

Discover accessories

Construction features

steel towel warmer radiator
horizontal elements featuring semi-oval tubes 40x23 mm diameter
side manifolds with semi-oval section 50x36,5 mm
manifold threading and central connections (50 mm) 1/2” Gas right
maximum working pressure 6 bar
maximum working temperature 95°C
reversible

Low temperature

Hydraulic radiator

Model	Depth (mm)	Height (mm)	Width (mm)	Conn. centre (mm)	Weight (kg)	Capacity (lt)		Exponent	Mixed Function (Watts)
01
804 10 rails 1 espace	36,5	804	450	406	8,93	5,93	1.276,1 321,6 374,0 284,6 200,2 121,9	1,224	300
804 10 rails 1 espace	36,5	804	500	456	9,70	6,44	1.395,5 351,7 409,0 310,9 218,4 132,7	1,229	400
804 10 rails 1 espace	36,5	804	600	556	11,24	7,47	1.634,3 411,9 479,0 363,4 254,5 154,0	1,238	400
1224 16 rails 2 espaces	36,5	1224	450	406	13,07	8,69	1.880,0 473,9 551,0 415,4 288,7 172,8	1,265	400
1224 16 rails 2 espaces	36,5	1224	500	456	14,17	9,42	2.060,8 519,4 604,0 455,5 316,6 189,6	1,265	400
1224 16 rails 2 espaces	36,5	1224	600	556	16,38	10,88	2.422,5 610,6 710,0 535,6 372,4 223,2	1,263	700
1584 21 rails 3 espaces	36,5	1584	450	406	16,56	11,02	2.333,8 588,2 684,0 516,5 359,6 215,9	1,258	700
1584 21 rails 3 espaces	36,5	1584	500	456	17,94	11,94	2.569,2 647,6 753,0 568,6 395,9 237,7	1,259	700
1584 21 rails 3 espaces	36,5	1584	600	556	20,70	13,76	3.043,5 767,1 892,0 673,6 469,0 281,5	1,259	700
1884 25 rails 4 espaces	36,5	1884	450	406	19,40	12,92	2.814,9 709,5 825,0 620,8 430,3 256,7	1,274	700
1884 25 rails 4 espaces	36,5	1884	500	456	21,01	13,98	3.081,0 776,6 903,0 679,8 471,4 281,4	1,273	700
1884 25 rails 4 espaces	36,5	1884	600	556	24,21	16,09	3.609,9 909,9 1.058,0 797,0 553,2 330,7	1,269	1000
05
804 10 rails 1 espace	36,5	804	450	50	8,93	5,93	1.276,1 321,6 374,0 284,6 200,2 121,9	1,224	300
804 10 rails 1 espace	36,5	804	500	50	9,70	6,44	1.395,5 351,7 409,0 310,9 218,4 132,7	1,229	400
804 10 rails 1 espace	36,5	804	600	50	11,24	7,47	1.634,3 411,9 479,0 363,4 254,5 154,0	1,238	400
1224 16 rails 2 espaces	36,5	1224	450	50	13,07	8,69	1.880,0 473,9 551,0 415,4 288,7 172,8	1,265	400
1224 16 rails 2 espaces	36,5	1224	500	50	14,17	9,42	2.060,8 519,4 604,0 455,5 316,6 189,6	1,265	400
1224 16 rails 2 espaces	36,5	1224	600	50	16,38	10,88	2.422,5 610,6 710,0 535,6 372,4 223,2	1,263	700
1584 21 rails 3 espaces	36,5	1584	450	50	16,56	11,02	2.333,8 588,2 684,0 516,5 359,6 215,9	1,258	700
1584 21 rails 3 espaces	36,5	1584	500	50	17,94	11,94	2.569,2 647,6 753,0 568,6 395,9 237,7	1,259	700
1584 21 rails 3 espaces	36,5	1584	600	50	20,70	13,76	3.043,5 767,1 892,0 673,6 469,0 281,5	1,259	700
1884 25 rails 4 espaces	36,5	1884	450	50	19,40	12,92	2.814,9 709,5 825,0 620,8 430,3 256,7	1,274	700
1884 25 rails 4 espaces	36,5	1884	500	50	21,01	13,98	3.081,0 776,6 903,0 679,8 471,4 281,4	1,273	700
1884 25 rails 4 espaces	36,5	1884	600	50	24,21	16,09	3.609,9 909,9 1.058,0 797,0 553,2 330,7	1,269	1000

Thanks to the high performance of Irsap ODDO radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment

4 wall fixing in the same color as the radiator
air vent
