Page

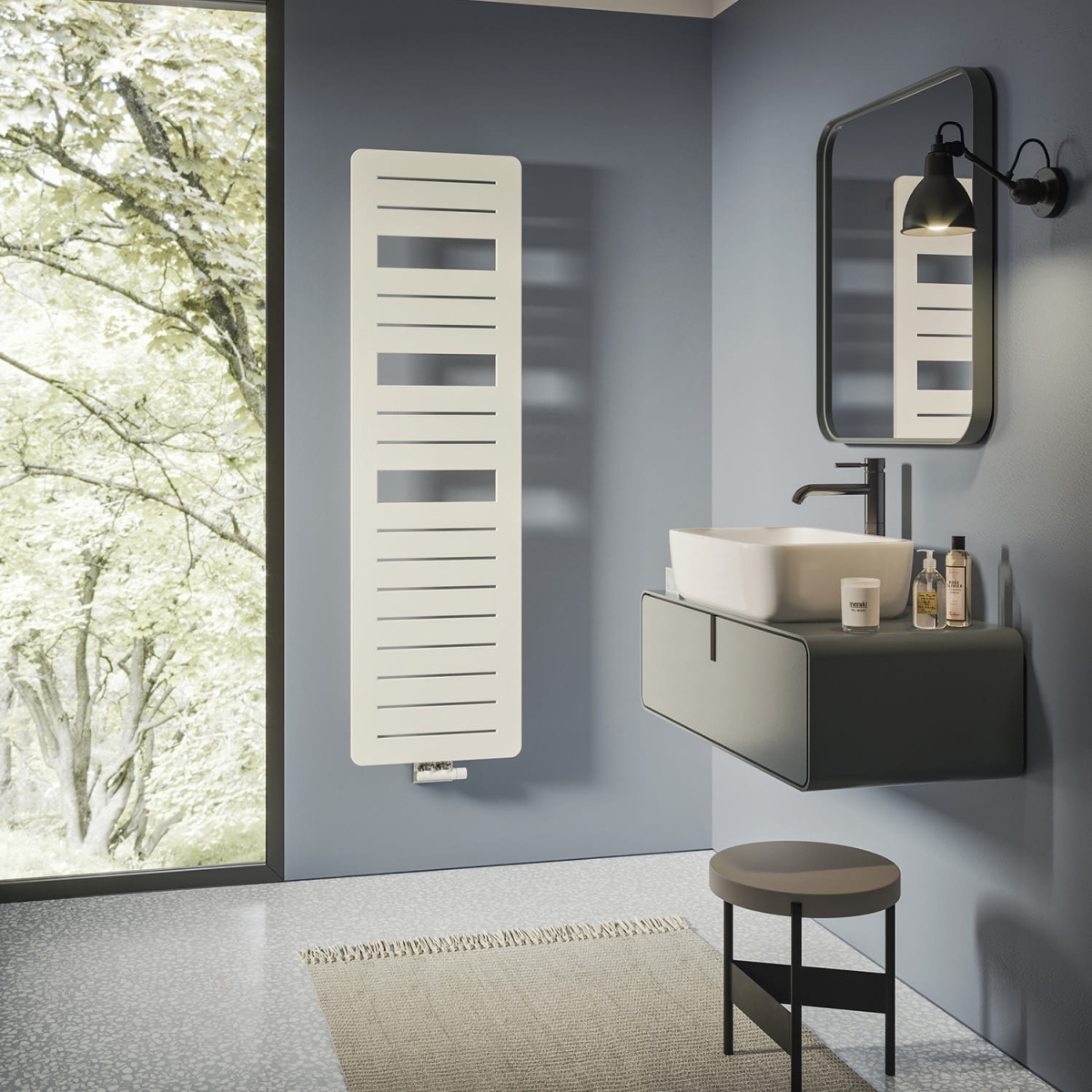

PAGE takes up the historic frame radiator and reinterprets it in its form, not only as a heating element but also as a decorative object which adds to the primary function of providing heat to the environment that of interacting harmoniously with the space that hosts it. Available in 3 heights from 920 to 1770 mm and width of 500 mm.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Configure your Page
Configure your Page
-
Thermal power
Discover accessories
Loading...
Construction features
- steel towel warmer radiator with flat tube elements
- side manifolds with 70x11 mm flat section
- horizontal tubes with 70x11 mm flat section
- threading for water connection at the center of the radiator, pitch 50 mm, right Gas 1/2”
- maximum working pressure 4 bar
- maximum working temperature 95°C
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent |
|---|---|---|---|---|---|---|---|---|
| 920 9 rails 2 espaces | 11,0 | 920 | 500 | 50 | 12,40 | 2,30 | 1.351,2 340,0 396,0 299,6 209,1 126,0 | 1,250 |
| 1260 13 rails 2 espaces | 11,0 | 1260 | 500 | 50 | 16,70 | 3,20 | 1.815,2 457,0 532,0 403,4 282,4 170,8 | 1,240 |
| 1770 18 rails 3 espaces | 11,0 | 1770 | 500 | 50 | 24,40 | 4,60 | 2.514,6 634,0 737,0 561,4 395,2 241,0 | 1,220 |
Thanks to the high performance of Irsap PAGE radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n
Standard equipment
- wall fitting
- 3/8" air vent
| Type | Description | Document | Downloads |
|---|---|---|---|
|
Technical document |
|||
|
Catalogs |
Catalog 2023 | Catalog 2023 | |
|
Catalogs |
Color chart | Color chart | |
|
Installation Manual |
FOISTR1114M | FOISTR1114M |
Calculate the power
How to choose the Page radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
