Piano 2 Vertical

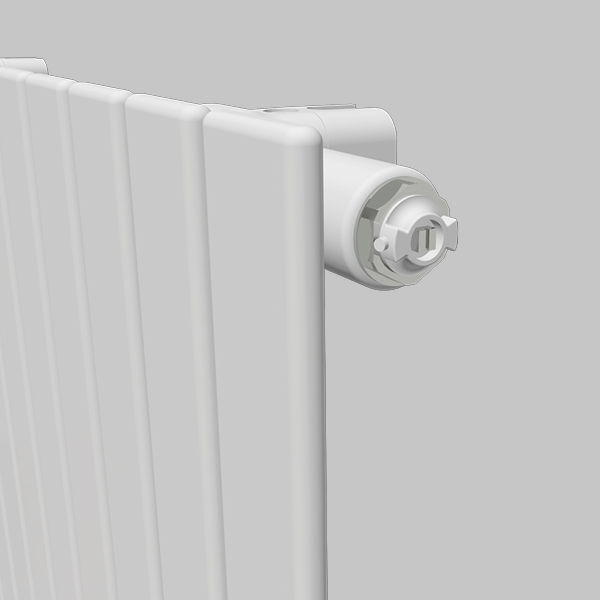

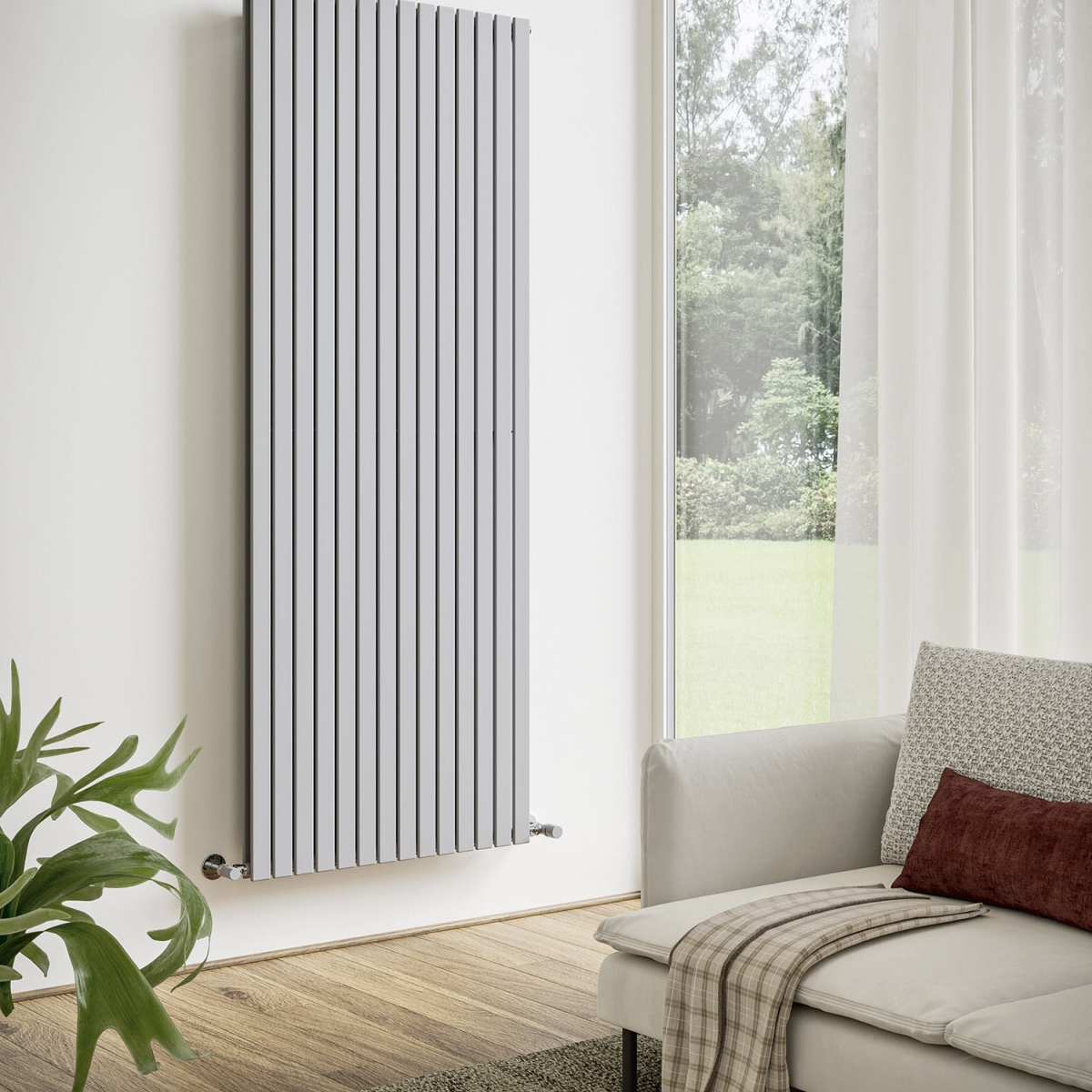

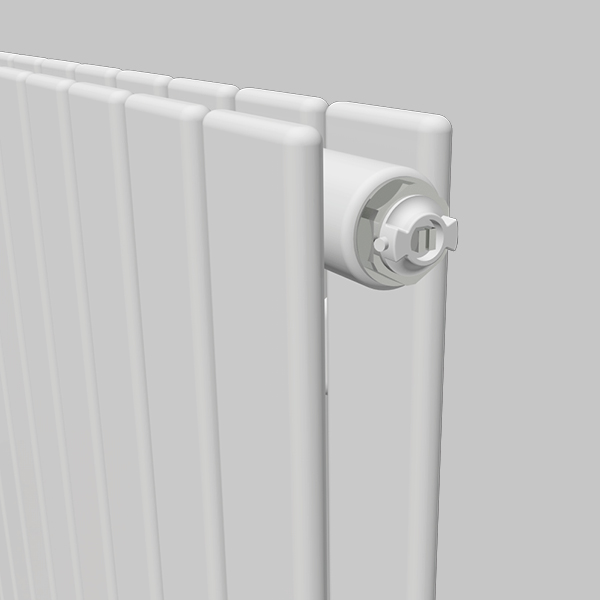

PIANO represents the evolution of the “radiator” in shape and color. PIANO 2 Vertical is the two-tier version of Piano Vertical, suitable for environments that require a higher caloric yield. PIANO 2 Vertical is available in 9 heights, from 4 to 30 elements and thermal powers from 201 to 3364 Watt.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Calculate the power
How to choose the Piano 2 Vertical radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
Calculate the thermal power of your Piano 2 Vertical
Configure your PIANO_V
Loading...
Configure your PIANO_V
-
Thermal power
Discover accessories
Loading...
Construction features
- manifolds with a 30 mm diameter circular section
- tubes made of sheet steel with a 50x10 mm rectangular section
- manifold threading 1/2” Gas right
- maximum working pressure 4 bar
- maximum working temperature 95°C
.jpg)
| Model | Depth (mm) | Height (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent |
|---|---|---|---|---|---|---|---|
| 520 | 46,0 | 520 | 470 | 1,16 | 0,43 | 171,2 43,2 50,2 37,6 25,9 15,3 | 1,296 |
| 700 | 46,0 | 700 | 650 | 1,52 | 0,55 | 223,6 56,4 65,5 49,0 33,6 19,8 | 1,305 |
| 920 | 46,0 | 920 | 870 | 1,96 | 0,71 | 285,9 72,1 83,8 62,5 42,8 25,1 | 1,317 |
| 1220 | 46,0 | 1220 | 1170 | 2,61 | 0,91 | 369,0 93,0 108,1 80,6 55,2 32,4 | 1,316 |
| 1520 | 46,0 | 1520 | 1470 | 3,16 | 1,13 | 450,6 113,6 132,1 98,5 67,5 39,6 | 1,315 |
| 1820 | 46,0 | 1820 | 1770 | 3,76 | 1,34 | 531,2 133,9 155,7 116,1 79,6 46,7 | 1,314 |
| 2020 | 46,0 | 2020 | 1970 | 4,16 | 1,48 | 584,5 147,3 171,3 127,6 87,3 51,2 | 1,319 |
| 2220 | 46,0 | 2220 | 2170 | 4,61 | 1,61 | 637,6 160,7 186,9 139,1 95,0 55,5 | 1,324 |
| 2520 | 46,0 | 2520 | 2470 | 5,16 | 1,82 | 716,9 180,7 210,1 156,1 106,4 62,0 | 1,332 |
Thanks to the high performance of Irsap PIANO 2 Vertical radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n
Standard equipment
- wall fixing systems with screws and anchors
- 1/2” blind plug
- piper cover kit
- 1/2” air vent
| L Length (mm) | E N° Elem. | 520 | 700 | 920 | 1220 | 1520 | 1820 | 2020 | 2220 | 2520 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 232 | 4 | Watt = W = | 201 | 262 | 335 | 433 | 528 | 623 | 685 | 747 | 840 |
| 344 | 6 | Watt = W = | 301 | 393 | 503 | 649 | 792 | 934 | 1028 | 1121 | 1261 |
| 456 | 8 | Watt = W = | 402 | 524 | 670 | 865 | 1056 | 1245 | 1370 | 1495 | 1681 |
| 568 | 10 | Watt = W = | 502 | 655 | 838 | 1081 | 1321 | 1557 | 1713 | 1869 | 2101 |
| 680 | 12 | Watt = W = | 602 | 786 | 1005 | 1298 | 1585 | 1868 | 2056 | 2242 | 2521 |
| 792 | 14 | Watt = W = | 703 | 917 | 1173 | 1514 | 1849 | 2180 | 2398 | 2616 | 2942 |
| 904 | 16 | Watt = W = | 803 | 1048 | 1341 | 1730 | 2113 | 2491 | 2741 | 2990 | 3362 |
| 1016 | 18 | Watt = W = | 903 | 1179 | 1508 | 1947 | 2377 | 2802 | 3084 | 3364 | - |
| 1128 | 20 | Watt = W = | 1004 | 1310 | 1676 | 2163 | 2641 | 3114 | - | - | - |
| 1240 | 22 | Watt = W = | 1104 | 1441 | 1843 | 2379 | 2905 | - | - | - | - |
| 1352 | 24 | Watt = W = | 1205 | 1572 | 2011 | 2595 | 3169 | - | - | - | - |
| 1464 | 26 | Watt = W = | 1305 | 1704 | 2179 | 2812 | - | - | - | - | - |
| 1576 | 28 | Watt = W = | 1405 | 1835 | 2346 | 3028 | - | - | - | - | - |
| 1688 | 30 | Watt = W = | 1506 | 1966 | 2514 | 3244 | - | - | - | - | - |
