Relax Power

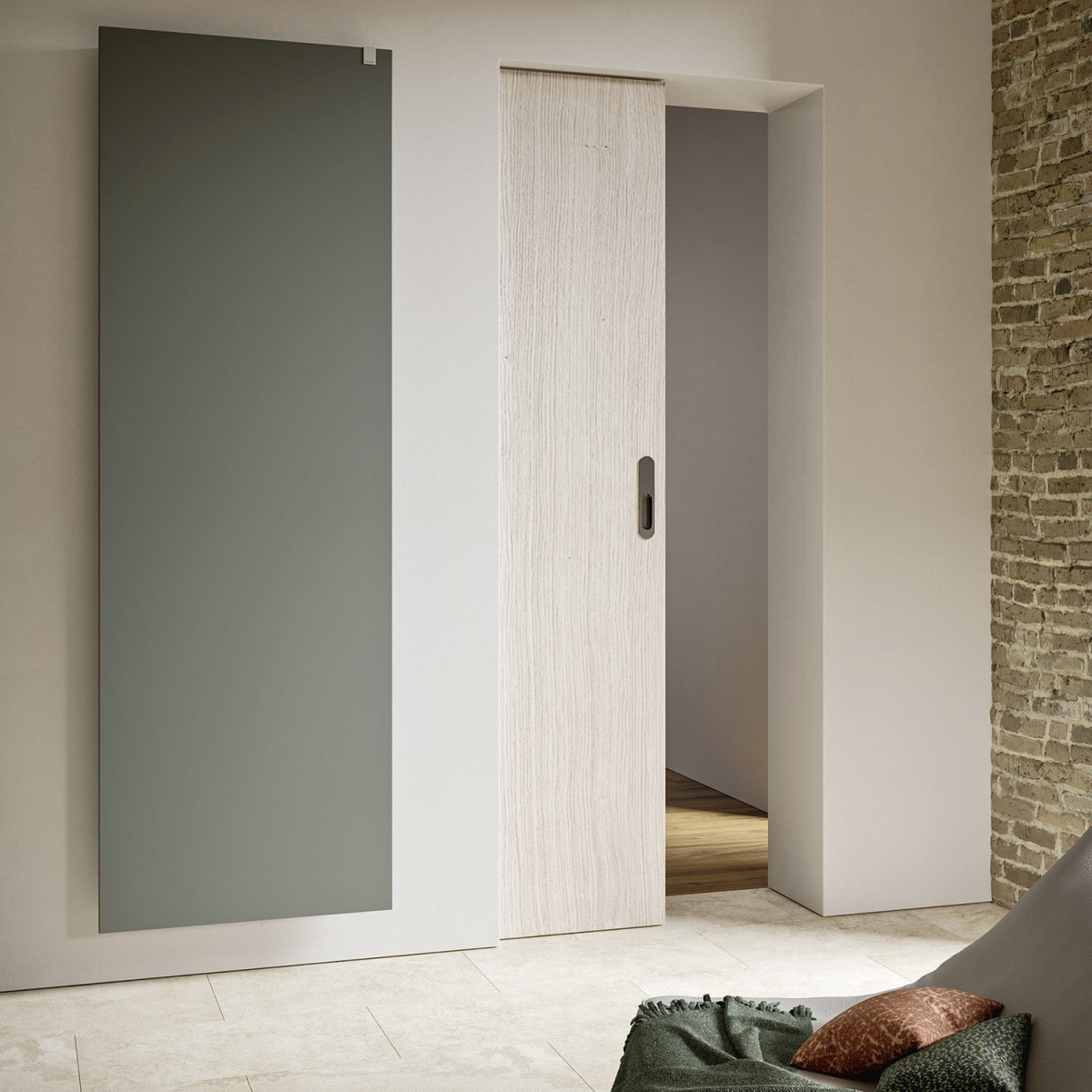

RELAX POWER is the representation of a refined and essential design. Its square lines and wide range of colors make it an object that becomes a strong piece of furniture, fitting discreetly into any type of environment. The towel holder (optional) makes RELAX also suitable for the bathroom. It is supplied with the innovative concealed hydraulic connection system installed directly in the company.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Calculate the power
How to choose the Relax Power radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
Calculate the thermal power of your Relax Power
Configure your relax
Loading...
Configure your relax
-
Thermal power
Discover accessories
Loading...
Construction features
- radiating panel
- thread pitch of 50 mm, M24x19
- maximum working pressure 10 bar
- maximum working temperature 95°C
- this radiator is already fitted for the insertion of the optional thermostat head
.jpg)
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent |
|---|---|---|---|---|---|---|---|---|

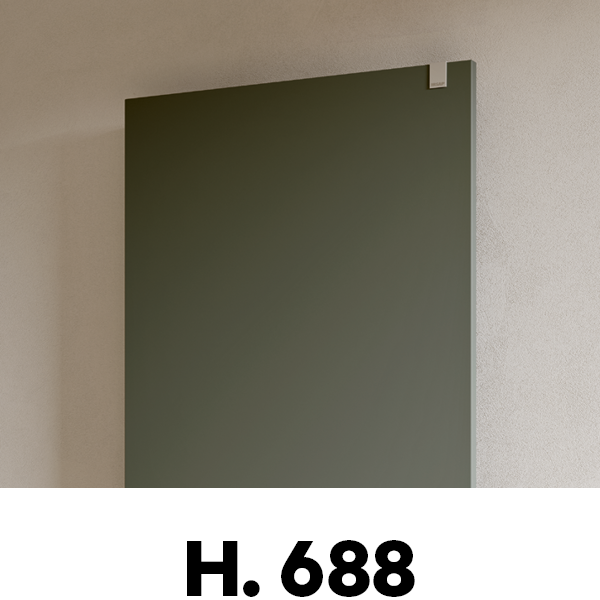

| 688 x 1061 | 47,5 | 688 | 1061 | 45 / 100 | 19,30 | 4,30 | 2.405,0 606,3 705,0 538,0 379,7 232,3 | 1,212 |
| 688 x 1197 | 47,5 | 688 | 1197 | 45 / 100 | 21,70 | 4,80 | 2.716,0 684,6 796,0 607,4 428,7 262,3 | 1,212 |
| 688 x 1401 | 47,5 | 688 | 1401 | 45 / 100 | 25,30 | 5,70 | 3.177,0 800,7 931,0 710,4 501,4 306,8 | 1,212 |
| 688 x 653 | 47,5 | 688 | 653 | 45 / 100 | 12,10 | 2,60 | 1.481,0 373,2 434,0 331,2 233,7 143,0 | 1,212 |
| 688 x 857 | 47,5 | 688 | 857 | 45 / 100 | 15,70 | 3,40 | 1.945,0 490,2 570,0 435,0 307,0 187,8 | 1,212 |

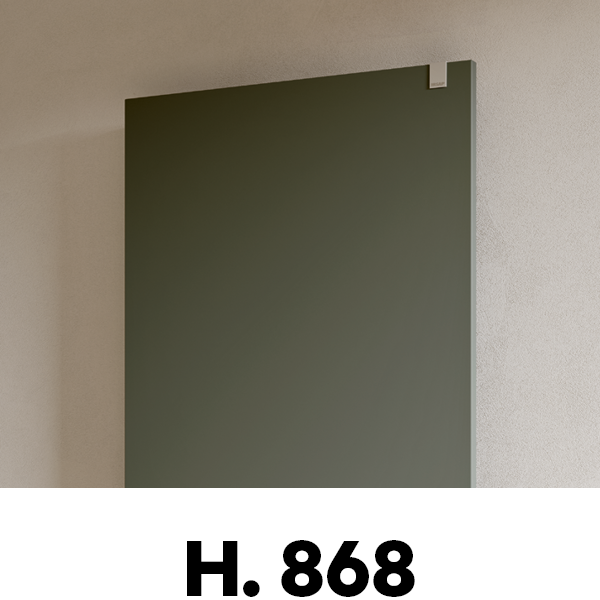

| 868 x 1061 | 47,5 | 868 | 1061 | 45 / 100 | 24,30 | 5,30 | 3.026,0 762,8 887,0 672,8 471,1 285,1 | 1,239 |
| 868 x 1197 | 47,5 | 868 | 1197 | 45 / 100 | 27,30 | 6,00 | 3.415,0 860,9 1.001,0 759,3 531,6 321,7 | 1,239 |
| 868 x 1401 | 47,5 | 868 | 1401 | 45 / 100 | 31,90 | 7,10 | 3.995,0 1.007,1 1.171,0 888,2 621,9 376,4 | 1,239 |
| 868 x 653 | 47,5 | 868 | 653 | 45 / 100 | 15,20 | 3,20 | 1.863,0 469,6 546,0 414,1 290,0 175,5 | 1,239 |
| 868 x 857 | 47,5 | 868 | 857 | 45 / 100 | 19,70 | 4,30 | 2.446,0 616,6 717,0 543,8 380,8 230,4 | 1,239 |
| 1663 x 381 | 47,5 | 1663 | 381 | 45 / 100 | 17,00 | 3,40 | 2.074,0 522,9 608,0 457,9 317,8 189,9 | 1,270 |
| 1663 x 517 | 47,5 | 1663 | 517 | 45 / 100 | 22,90 | 4,70 | 2.815,0 709,5 825,0 621,4 431,2 257,6 | 1,270 |
| 1663 x 653 | 47,5 | 1663 | 653 | 45 / 100 | 28,80 | 6,10 | 3.555,0 896,1 1.042,0 784,8 544,6 325,4 | 1,270 |

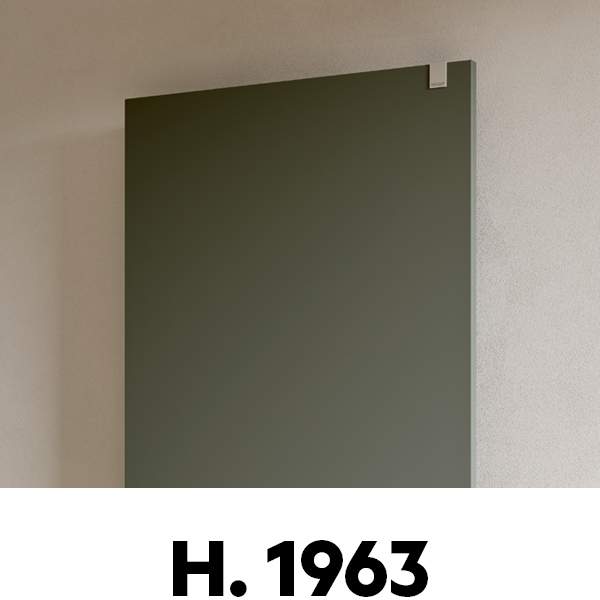

| 1963 x 381 | 47,5 | 1963 | 381 | 45 / 100 | 20,00 | 4,00 | 2.371,0 597,7 695,0 522,1 361,1 214,8 | 1,282 |
| 1963 x 517 | 47,5 | 1963 | 517 | 45 / 100 | 26,90 | 5,50 | 3.218,0 811,0 943,0 708,5 490,0 291,4 | 1,282 |
| 1963 x 653 | 47,5 | 1963 | 653 | 45 / 100 | 33,90 | 7,10 | 4.064,0 1.024,3 1.191,0 894,8 618,9 368,1 | 1,282 |
| 2163 x 381 | 47,5 | 2163 | 381 | 45 / 100 | 21,90 | 4,40 | 2.515,0 633,8 737,0 554,7 384,6 229,5 | 1,273 |
| 2163 x 517 | 47,5 | 2163 | 517 | 45 / 100 | 29,60 | 6,10 | 3.415,0 860,9 1.001,0 753,5 522,4 311,8 | 1,273 |
| 2163 x 653 | 47,5 | 2163 | 653 | 45 / 100 | 37,30 | 7,80 | 4.313,0 1.087,0 1.264,0 951,4 659,7 393,7 | 1,273 |
Thanks to the high performance of Irsap RELAX POWER radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n
Standard equipment
- water connection system complete with fittings for connection to copper pipes (12, 14 and 15 mm diameter) and multilayer pipes (14 x 2 thick and 16 x 2 thick)
- wall fixing system
- air vent
- installation template
