Step_H

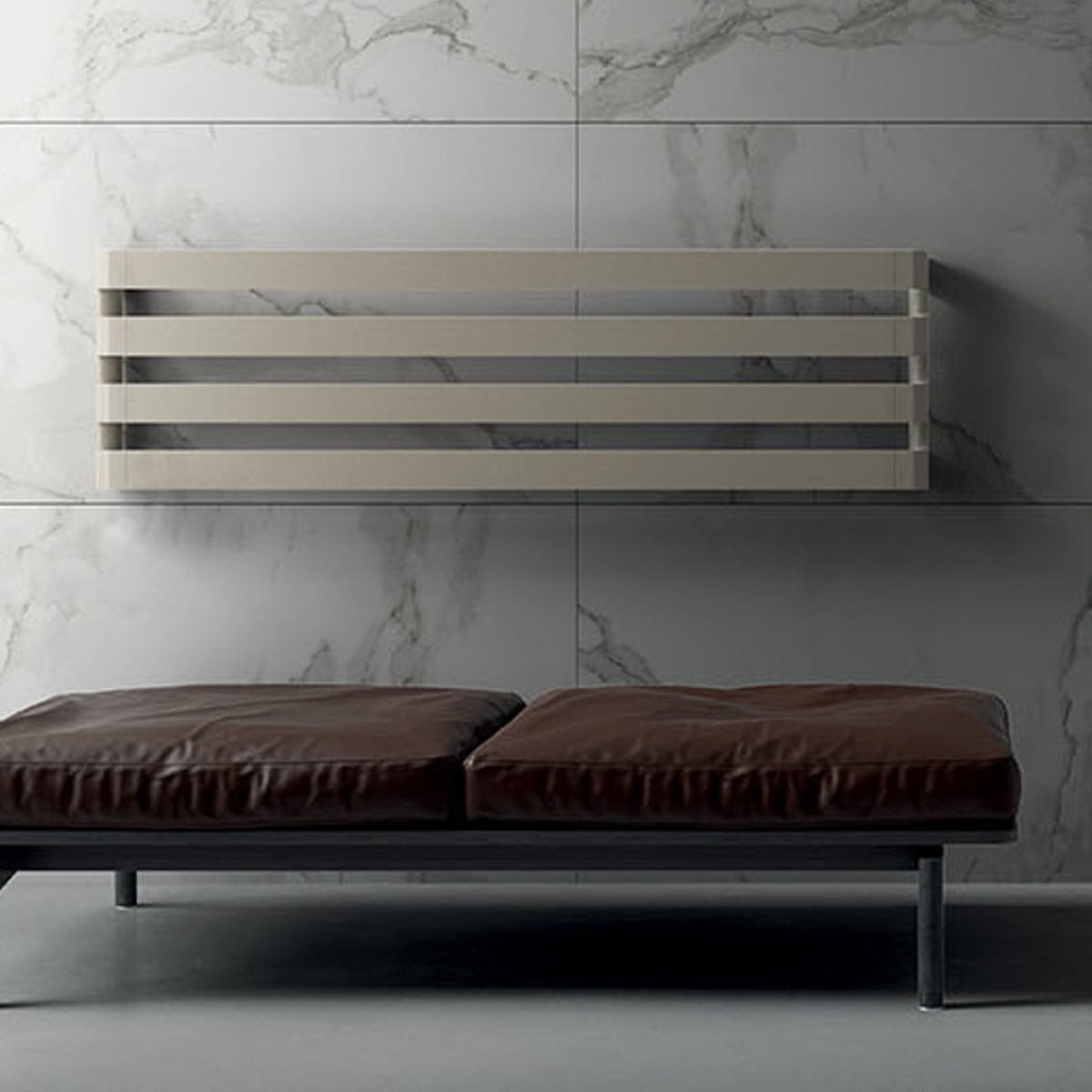

The STEP range offers the synthesis of simple and clean lines, peculiarities universally recognized in the works of Antonio Citterio. With STEP, IRSAP invites you to experience the home. STEP_H is the version with horizontal development, made with large 70 mm slats. Thanks to its harmony of shapes and its multiple sizes, Step_H is adaptable to any room in the house.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Construction features

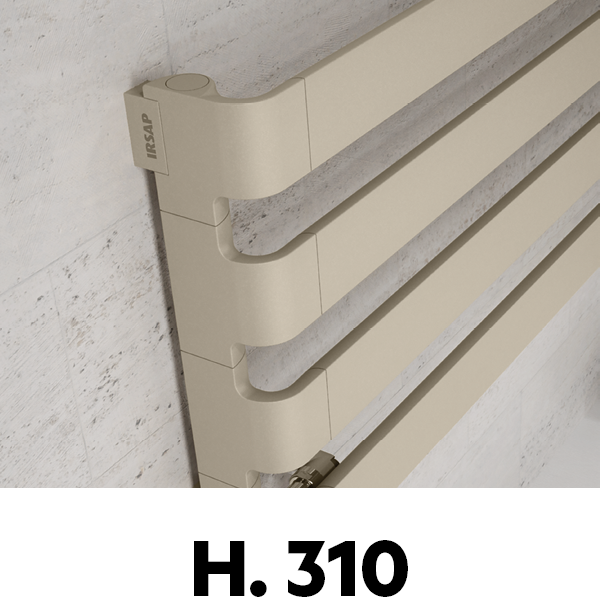

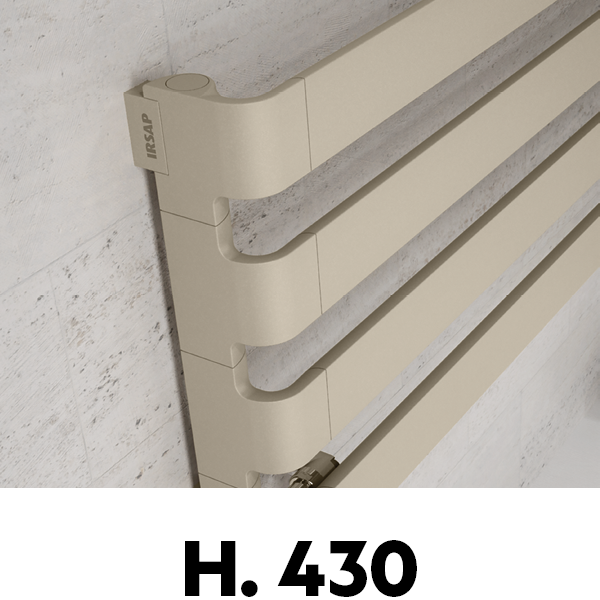

- flattened pipes in aluminium, 70 mm width
- maximum working pressure 4 bar
- maximum working temperature 95°C
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent |
|---|---|---|---|---|---|---|---|---|
| STEP_H_1500_03 el. | 107,0 | 310 | 1500 | 1276 | 9,07 | 1,98 | 1.588,7 400,3 465,6 350,7 243,4 145,5 | 1,269 |
| STEP_H_1800_03 el. | 107,0 | 310 | 1800 | 1576 | 10,26 | 2,37 | 1.906,4 480,4 558,7 420,9 292,1 174,6 | 1,269 |
| STEP_H_1500_04 el. | 107,0 | 430 | 1500 | 1276 | 12,28 | 2,65 | 2.128,7 536,4 623,9 470,3 326,7 195,5 | 1,266 |
| STEP_H_1800_04 el. | 107,0 | 430 | 1800 | 1576 | 13,86 | 3,17 | 2.554,4 643,7 748,6 564,4 392,1 234,6 | 1,266 |
(*) Thanks to the high performance of Irsap STEP_H radiators, the ideal Δt for low temperature projects is Δt at 30°C. The heating yields are calculated on products with epoxy powder coatings. For Chrome (code 50) finishes, the yields decrease respectively by 40%. All the available finishes are shown on the facing page.
For Δt different from 50°C use the formula: Q=Qn (∆t / 50)n
Standard equipment
- wall fixing systems the same finish as the radiator
- 2 hidden vent valves of 1/2” and valve caps
- pre-mounted hydraulic connection kit in the same finish as the radiator, complete with couplings for copper fittings (diameter 12, 14 and 15 mm), and multilayer pipes (14 x 2 thick and 16 x 2 thick)
| Type | Description | Document | Downloads |
|---|---|---|---|
|
Technical document |
|||
|
Catalogs |
Catalog 2023 | Catalog 2023 | |
|
Catalogs |
Color chart | Color chart | |
|
Installation Manual |
FOISTR0698M | FOISTR0698M | |
|
Manual |
FOISTR1394M | FOISTR1394M |
| Type | Description | Document | Downloads |
|---|---|---|---|
|
3D Model |
STEP_E_L500_3EL | STEP_E_L500_3EL | |
|
3D Model |
STEP_H_L1500_3EL | STEP_H_L1500_3EL |
|
|
3D Model |
STEP_H_L1500_4EL | STEP_H_L1500_4EL |
|
|
3D Model |
STEP_H_L1800_3EL | STEP_H_L1800_3EL |
|
|
3D Model |
STEP_H_L1800_4EL | STEP_H_L1800_4EL |
|
