Tesi 4-5-6 Bench vertical

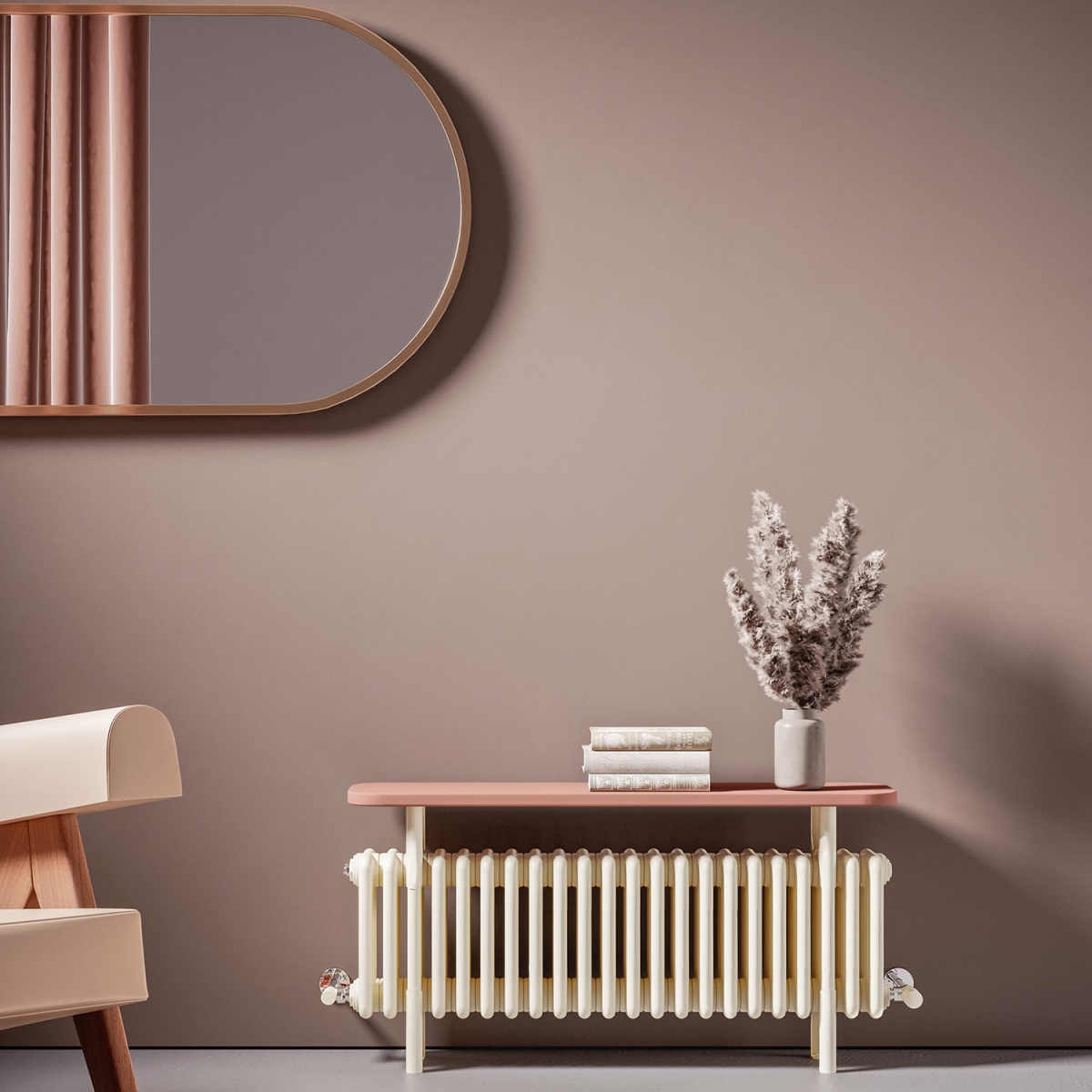

TESI BENCH VERTICAL is a particular version of the classical TESI tubular radiators. It is composed of columns going from 4 up to 6 and of the following number of elements: 22, 28, 32, 36, 38, 45, 52. The lengths are from 1014 mm to 2364 mm and it is 300 mm high. Perfect and for private installations or for public areas (gym, nursery, school...) The seat is not supplied. The technical drawing refers to TESI BENCH VERTICAL with 22 sections.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

Configure your Tesi 4-5-6 Bench vertical

TESI 4

TESI 5

TESI 6

Choose most used

Connection left/right with angle valve

Select valve finish

Standard white

Chrome

MATCHING YOUR RADIATOR

-

Thermal power

Showroom Find Showroom

Discover accessories

Construction features

tubes made of 25 mm diameter sheet steel
manifolds made of pressed sheet steel
elements 45 mm long (element pitch)
threading 1”1/4 G right and left on top and bottom manifold
mounted 1/2” plugs supplied as standard
maximum working pressure 10 bar
maximum working temperature 95°C
standard hydraulic connection supplied Cod. 02

10 year Guarantee

Hydraulic radiator

Low temperature

Model	Depth (mm)	Height (mm)	Width (mm)	Conn. centre (mm)	Weight (kg)	Capacity (lt)		Exponent
RT4
4C 0300 el. 22	142,0	302	1014	235	22,00	16,50	2.717,0 796,2 925,8 699,2 486,9 292,4	1,258
4C 0300 el. 28	142,0	302	1284	235	28,00	21,00	3.458,0 1.013,3 1.178,2 889,8 619,6 372,1	1,258
4C 0300 el. 32	142,0	302	1464	235	32,00	24,00	3.952,0 1.158,1 1.346,6 1.017,0 708,2 425,3	1,258
4C 0300 el. 36	142,0	302	1644	235	36,00	27,00	4.446,0 1.302,8 1.514,9 1.144,1 796,7 478,4	1,258
4C 0300 el. 38	142,0	302	1734	235	38,00	28,50	4.693,0 1.375,2 1.599,0 1.207,6 840,9 505,0	1,258
4C 0300 el. 45	142,0	302	2049	235	45,00	33,75	5.557,5 1.628,6 1.893,6 1.430,1 995,9 598,1	1,258
4C 0300 el. 52	142,0	302	2364	235	52,00	39,00	6.422,0 1.881,9 2.188,2 1.652,6 1.150,8 691,1	1,258
RT5
5C 0300 el. 22	180,0	302	1014	235	24,86	20,90	3.317,6 972,4 1.130,8 850,7 589,4 351,3	1,276
5C 0300 el. 28	180,0	302	1284	235	31,64	26,60	4.222,4 1.237,6 1.439,2 1.082,8 750,1 447,2	1,276
5C 0300 el. 32	180,0	302	1464	235	36,16	30,40	4.825,6 1.414,4 1.644,8 1.237,4 857,3 511,0	1,276
5C 0300 el. 36	180,0	302	1644	235	40,68	34,20	5.428,8 1.591,2 1.850,4 1.392,1 964,4 574,9	1,276
5C 0300 el. 38	180,0	302	1734	235	42,94	36,10	5.730,4 1.679,6 1.953,2 1.469,5 1.018,0 606,9	1,276
5C 0300 el. 45	180,0	302	2049	235	50,85	42,75	6.786,0 1.989,0 2.313,0 1.740,2 1.205,6 718,7	1,276
5C 0300 el. 52	180,0	302	2364	235	58,76	49,40	7.841,6 2.298,4 2.672,8 2.010,8 1.393,1 830,4	1,276
RT6
6C 0300 el. 22	218,0	302	1014	235	29,70	24,86	3.918,2 1.148,6 1.335,6 1.000,8 689,9 408,5	1,293
6C 0300 el. 28	218,0	302	1284	235	37,80	31,64	4.986,8 1.461,9 1.699,9 1.273,7 878,1 520,0	1,293
6C 0300 el. 32	218,0	302	1464	235	43,20	36,16	5.699,2 1.670,7 1.942,7 1.455,7 1.003,5 594,2	1,293
6C 0300 el. 36	218,0	302	1644	235	48,60	40,68	6.411,6 1.879,6 2.185,6 1.637,6 1.129,0 668,5	1,293
6C 0300 el. 38	218,0	302	1734	235	51,30	42,94	6.767,8 1.984,0 2.307,0 1.728,6 1.191,7 705,7	1,293
6C 0300 el. 45	218,0	302	2049	235	60,75	50,85	8.014,5 2.349,5 2.732,0 2.047,1 1.411,2 835,7	1,293
6C 0300 el. 52	218,0	302	2364	235	70,20	58,76	9.261,2 2.714,9 3.156,9 2.365,5 1.630,7 965,6	1,293

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Thanks to the high performance of TESI BENCH radiators, the ideal Δt for low temperature projects is Δt at 30°C.

Type	Description	Document	Downloads
Technical document			Downloads PDF
Catalogs	Catalog 2023	Catalog 2023	Downloads PDF
Catalogs	Color chart	Color chart	Downloads PDF
Installation Manual	FOISTR0681M	FOISTR0681M	Downloads PDF

Calculate the power

How to choose the Tesi 4-5-6 Bench vertical radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
