Xilo 2

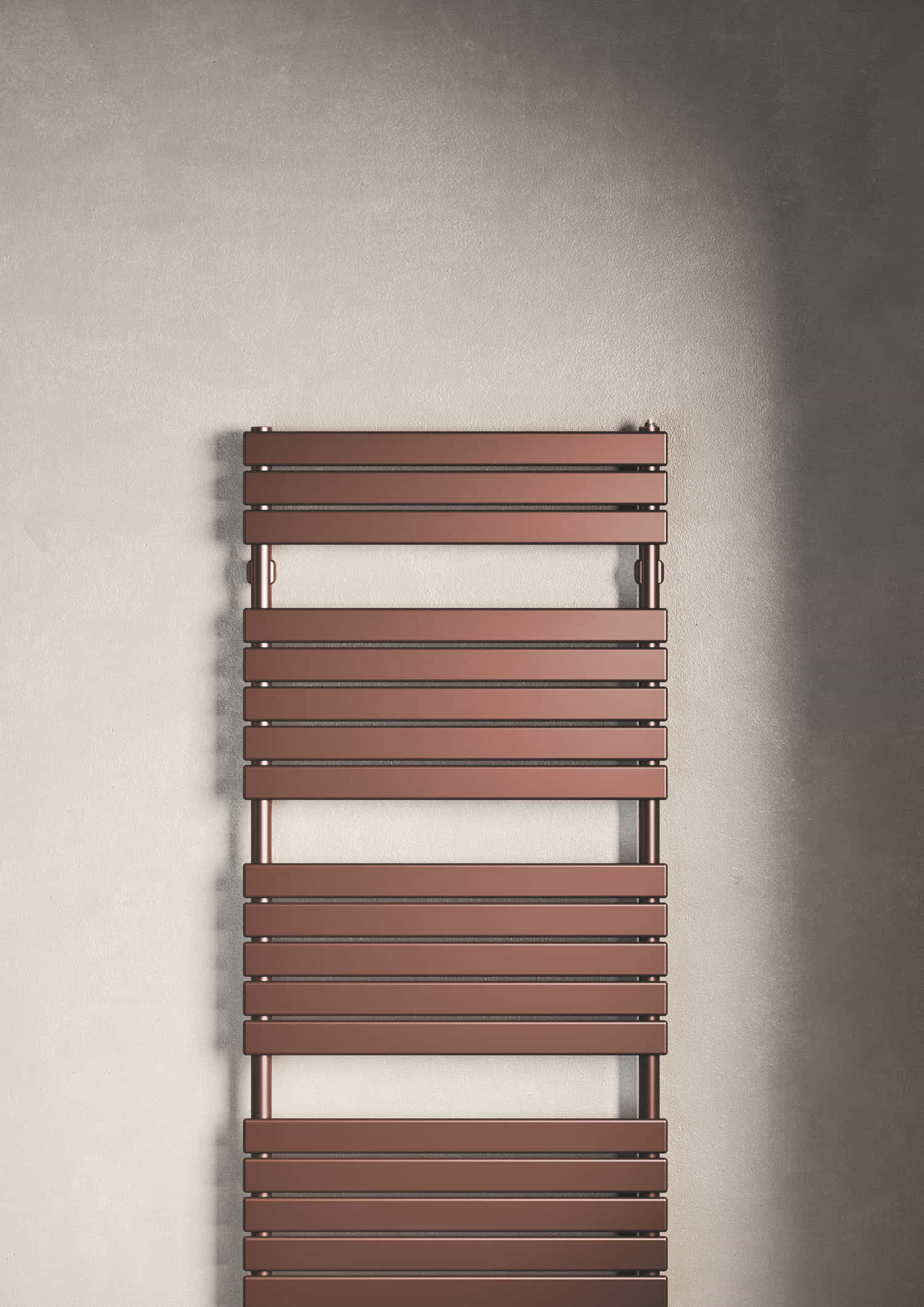

XILO 2 is a steel towel radiator with rectangular tubular elements. XILO 2 is available in 4 heights and 5 widths from 456 to 756 mm. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

Calculate the power

How to choose the Xilo 2 radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space

Model	Elements	Depth ^(mm)	Length ^(mm)	Height ^(mm)	Thermal power ^(watt)
{{ battery.modello }}	{{ battery.n_elementi }}	{{ battery.profondita }}	{{ battery.lunghezza }}	{{ battery.altezza }}	{{ battery.power }}

Configure your Xilo 2

792 22 rails 2 espaces

1156 32 rails 3 espaces

1520 42 rails 4 espaces

1744 50 rails 4 espaces

Choose most used

Connection left/right with angle valve

Select valve finish

Standard white

Chrome

MATCHING YOUR RADIATOR

-

Thermal power

Showroom Find Showroom

Don't know the thermal power?

Discover accessories

Construction features

steel towel warmer radiator
horizontal elements with rectangular tubes 50x10 mm diameter
side manifolds with a 30 mm round section
manifold threading 1/2” Gas right
maximum working pressure 4 bar
maximum working temperature 95°C

Hydraulic radiator with booster available

Electric radiator with booster available

Low temperature

Hydraulic radiator

Electric radiator available

Model	Depth (mm)	Height (mm)	Width (mm)	Conn. centre (mm)	Weight (kg)	Capacity (lt)		Exponent	Mixed Function (Watts)
792 22 rails 2 espaces	46,0	792	456	406	11,43	4,44	1.818,6 458,4 533,0 408,5 290,0 178,8	1,192	400
792 22 rails 2 espaces	46,0	792	506	456	12,53	4,83	1.985,8 500,5 582,0 446,4 317,1 195,8	1,189	400
792 22 rails 2 espaces	46,0	792	556	506	13,63	5,21	2.153,0 542,7 631,0 484,2 344,2 212,8	1,186	400
792 22 rails 2 espaces	46,0	792	606	556	14,73	5,60	2.320,2 584,8 680,0 522,2 371,5 229,9	1,184	700
792 22 rails 2 espaces	46,0	792	756	706	18,03	6,75	2.821,4 711,1 826,9 636,2 453,7 281,7	1,175	700
1156 32 rails 3 espaces	46,0	1156	456	406	16,62	6,47	2.474,0 623,6 725,1 555,0 393,2 241,9	1,198	700
1156 32 rails 3 espaces	46,0	1156	506	456	18,22	7,03	2.709,1 682,8 794,0 608,2 431,3 265,7	1,195	700
1156 32 rails 3 espaces	46,0	1156	556	506	19,82	7,59	2.943,9 742,0 862,8 661,4 469,5 289,7	1,191	700
1156 32 rails 3 espaces	46,0	1156	606	556	21,42	8,15	3.179,0 801,3 931,7 714,8 508,0 313,9	1,187	1000
1156 32 rails 3 espaces	46,0	1156	756	706	26,22	9,83	3.883,9 978,9 1.138,3 875,4 624,0 387,2	1,177	1000
1520 42 rails 4 espaces	46,0	1520	456	406	21,80	8,50	3.039,8 766,2 890,9 672,6 468,2 281,0	1,259	700
1520 42 rails 4 espaces	46,0	1520	506	456	23,90	9,24	3.329,4 839,2 975,8 738,8 516,1 311,3	1,247	1000
1520 42 rails 4 espaces	46,0	1520	556	506	26,00	9,97	3.619,4 912,3 1.060,8 805,4 564,7 342,3	1,234	1000
1520 42 rails 4 espaces	46,0	1520	606	556	28,10	10,70	3.909,1 985,3 1.145,7 872,3 613,8 374,0	1,222	1000
1520 42 rails 4 espaces	46,0	1520	756	706	34,40	12,90	4.778,5 1.204,4 1.400,5 1.075,2 764,8 473,1	1,184	1000
1744 50 rails 4 espaces	46,0	1744	456	406	25,82	10,04	3.383,3 852,8 991,6 750,3 523,7 315,5	1,250	1000
1744 50 rails 4 espaces	46,0	1744	506	456	28,32	10,92	3.734,1 941,2 1.094,4 829,8 580,8 351,2	1,240	1000
1744 50 rails 4 espaces	46,0	1744	556	506	30,82	11,79	4.084,8 1.029,6 1.197,2 909,7 638,4 387,6	1,231	1000
1744 50 rails 4 espaces	46,0	1744	606	556	33,32	12,66	4.435,6 1.118,0 1.300,0 989,9 696,6 424,5	1,221	1000
1744 50 rails 4 espaces	46,0	1744	756	706	40,82	15,28	5.487,9 1.383,2 1.608,4 1.232,5 874,5 539,2	1,193	1000

Thanks to the high performance of Irsap XILO 2 radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment

2 pair of CHELA wall brackets
1/2" air vent
