Xilo Air Electric
XILO AIR Electric is an electric radiator with booster. The radiator is filled with a coolant and is combined with a 1000 watt electric power booster system. This system provides a uniform temperature in the room where it is installed. Available in 3 heights and in 2 width of 506 and 606 mm.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Calculate the power
How to choose the Xilo Air Electric radiator for your home? How to know what is the right power to heat each room? Online heat demand allows you to identify the most suitable radiator for your living space
MOD_CALCULATOR_PRODUCT_STEPS_ELECTRIC_POWER_TITLE
Configure your Xilo Air Electric
Configure your Xilo Air Electric
-
Electric power
Construction features
- electric steel towel warmer radiator
- horizontal elements with rectangular tubes 50x10 mm manifolds
- side manifolds with a 30 mm round section
- complete with thermal liquid and an auxiliary electrical power system that reaches 1000 Watt.
- This auxiliary power system is combined with a fan to ensure the temperature set in the enviroment where it is used.
| Model | Depth (mm) | Height (mm) | Width (mm) | Weight (kg) | Electric Power (Watt) | Electric Power with Booster (Watt) |
|---|---|---|---|---|---|---|

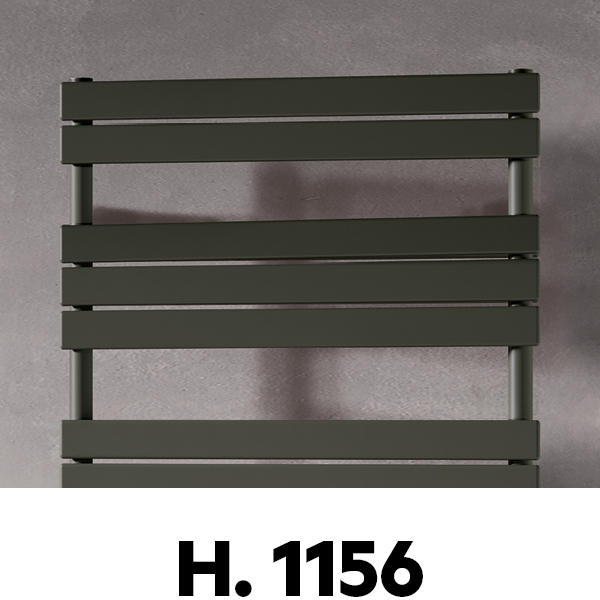

| 1156 16 rails 3 espaces | 110,0 | 1216 | 506 | 17,01 | 500 | 1000 |

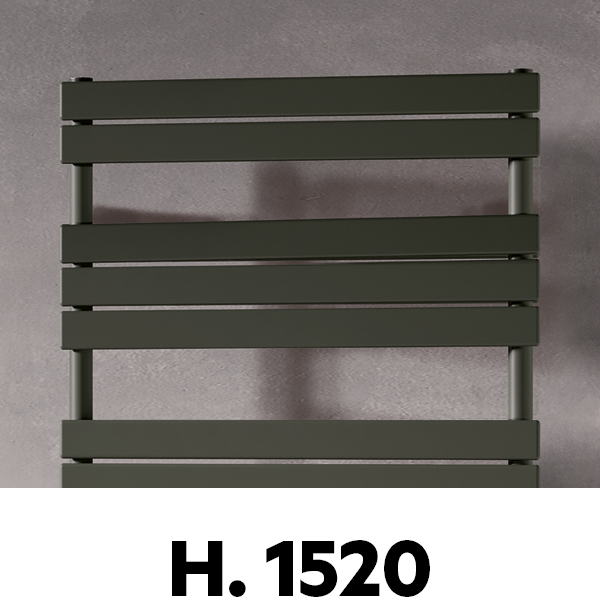

| 1520 21 rails 4 espaces | 110,0 | 1580 | 506 | 21,51 | 750 | 1000 |
| 1520 21 rails 4 espaces | 110,0 | 1580 | 606 | 24,31 | 1000 | 1000 |

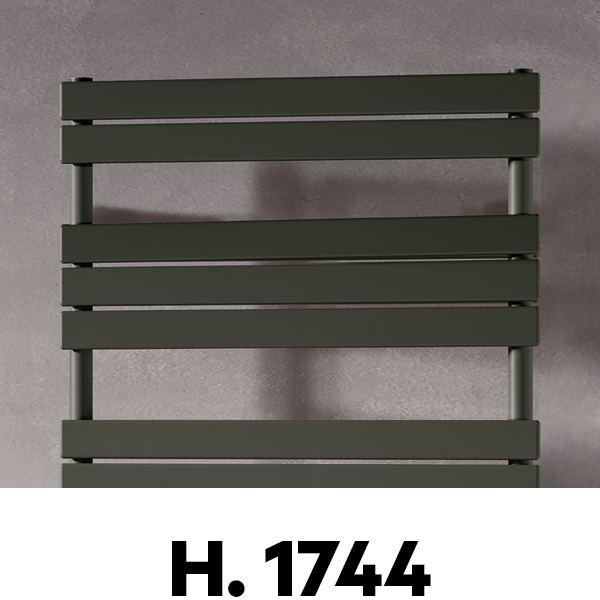

| 1744 25 rails 4 espaces | 110,0 | 1804 | 606 | 28,26 | 1200 | 1000 |
The radiator is not reversible. The radiator will be supllied with the resistance always mounted on the right side.
Standard equipment
- 4 adjustable wall fixing brackets in the same color as the radiator
- Wireless Remote control
