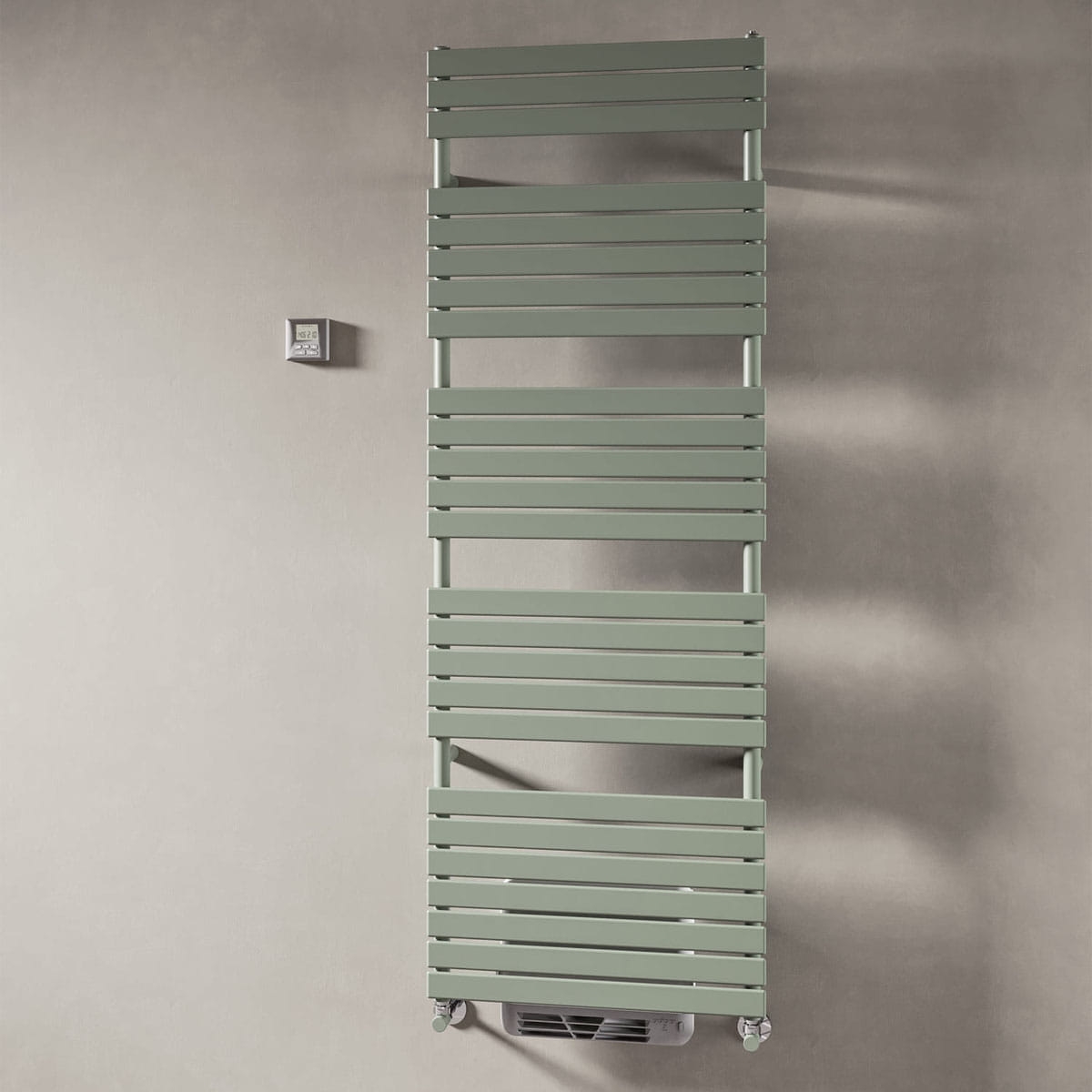

Xilo Air Mix
Original features full of personality and creativity, give shape to this towel warmer of essential lines. XILO AIR MIX takes inspiration from the rhythm pervading its forms and creating a free and versatile approach, able to transform and decorate any bathroom’s space, making it the leading actor.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Calculate the power
How to choose the Xilo Air Mix radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
Calculate the thermal power of your Xilo Air Mix
Configure your Xilo Air Mix
Configure your Xilo Air Mix
-
Thermal power
Discover accessories
Loading...
Construction features
- towel warmer radiator made of steel
- horizontal elements with rectangular tubes 50x10 mm diameter
- side manifolds with 30 mm round section
- maximum working pressure 4 bar
- maximum working temperature 95°C
- radiator hydraulic equipped with a booster mounted behind the radiator with a power of 1,000 Watts
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent | Electric Power with Booster (Watt) |
|---|---|---|---|---|---|---|---|---|---|

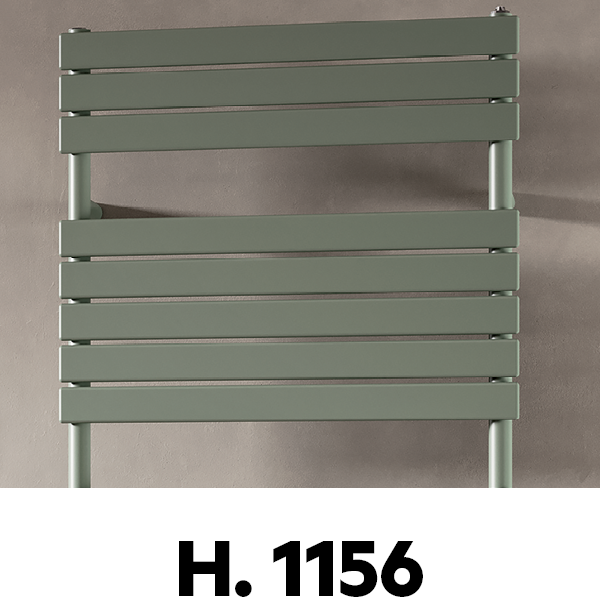

| 1156 16 rails 3 espaces | 110,0 | 1206 | 506 | 456 | 12,66 | 4,26 | 1.902,2 479,5 557,5 428,6 305,4 189,4 | 1,178 | 1000 |

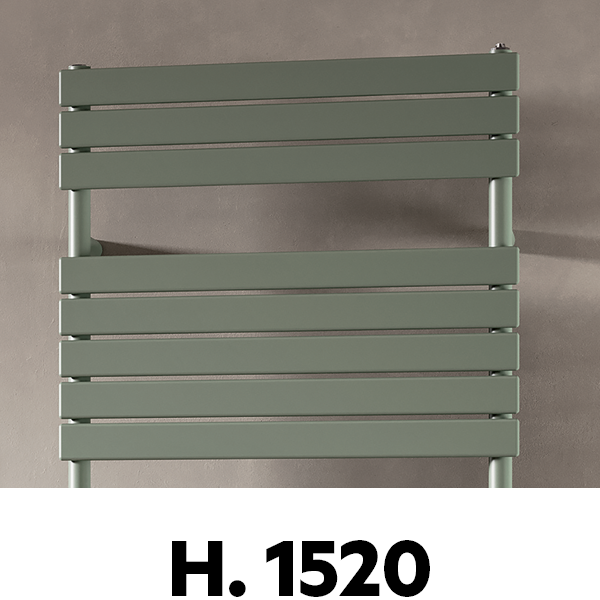

| 1520 21 rails 4 espaces | 110,0 | 1570 | 506 | 456 | 15,81 | 5,58 | 2.451,2 617,8 718,4 549,1 388,3 238,2 | 1,205 | 1000 |
| 1520 21 rails 4 espaces | 110,0 | 1570 | 606 | 556 | 17,91 | 6,32 | 2.893,7 729,4 848,1 650,9 462,8 286,1 | 1,186 | 1000 |
Thanks to the high performance of Irsap XILO AIR MIX radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n
Standard equipment
- 4 adjustable wall fixing brackets in the same color of the radiator
- 1/2" air vent
| Type | Description | Document | Downloads |
|---|---|---|---|
|
Technical document |
|||
|
Catalogs |
Catalog 2023 | Catalog 2023 | |
|
Catalogs |
Color chart | Color chart | |
|
Product certification |
DC_UE_240038_Xilo_Air_Mix | DC_UE_240038_Xilo_Air_Mix | |
|
Product certification |
DC_UE_240059_XILO_E.C._BOOSTER | DC_UE_240059_XILO_E.C._BOOSTER | |
|
User manual |
FOISTR0847M | FOISTR0847M | |
|
Installation Manual |
FOISTR0701M | FOISTR0701M | |
|
User manual |
FOISTR0750M | FOISTR0750M |
