Arpa 12_2 Horizontal

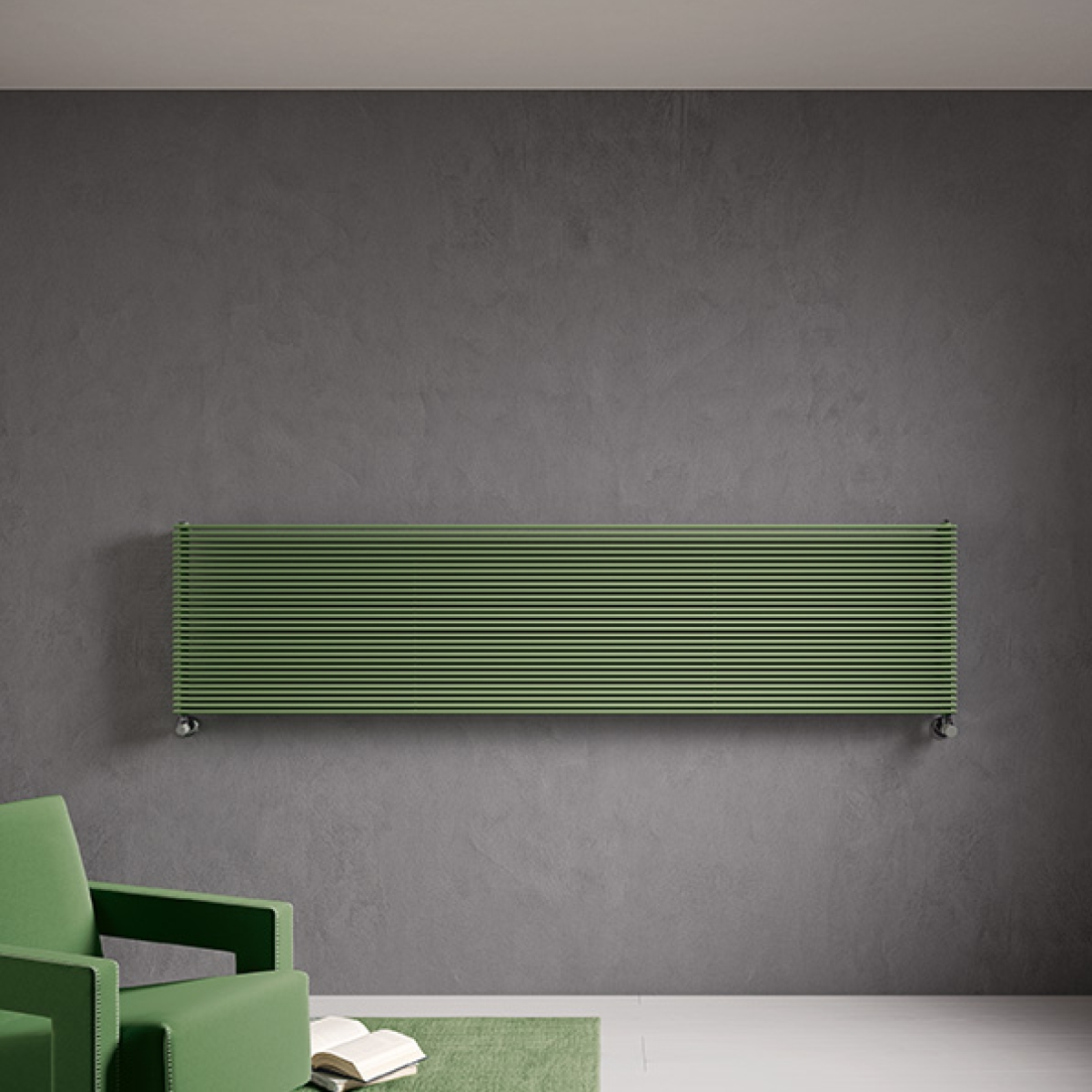

ARPA 12_2 Horizontal represents the aesthetic evolution of the decorative radiator, thanks to its longitudinal development and the squared profile of the elements. Every caloric need is met by the modularity and breadth of range. There are 15 proposed widths, from 4 to 60 elements in even number and thermal power from 120 to 3388 Watt.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

Calculate the power

How to choose the Arpa 12_2 Horizontal radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space

Model	Elements	Depth ^(mm)	Height ^(mm)	Larghezza ^(mm)	Thermal power ^(watt)
{{ battery.modello }}	{{ battery.n_elementi }}	{{ battery.profondita }}	{{ battery.larghezza }}	{{ battery.altezza }}	{{ battery.power }}

Configure your ARPA_H

Arpa 12 Horizontal

Arpa 12_2 Horizontal

Arpa 18 Horizontal

Arpa 18_2 Horizontal

Arpa 23 Horizontal

Arpa 23_2 Horizontal

Choose most used

Connection top/bottom with angle valve

Connection left/right with angle valve

50mm connection with angle valve

Select valve finish

Standard white

Chrome

MATCHING YOUR RADIATOR

-

Thermal power

Showroom Find Showroom

Don't know the thermal power?

Discover accessories

Construction features

manifolds with a 30 mm diameter circular section
tubes made of sheet steel with an 12 mm diameter
manifold threading 1/2” Gas right
maximum working pressure 10 bar
maximum working temperature 95°C

Low temperature

Hydraulic radiator

Model	Depth (mm)	Length (mm)	Conn. centre (mm)	Weight (kg)	Capacity (lt)
520	50,0	520	470	0,39	0,10
550	50,0	550	500	0,41	0,10
650	50,0	650	600	0,47	0,11
670	50,0	670	620	0,49	0,12
700	50,0	700	650	0,51	0,12
750	50,0	750	700	0,54	0,13
850	50,0	850	800	0,60	0,14
870	50,0	870	820	0,62	0,15
920	50,0	920	870	0,65	0,15
1220	50,0	1220	1170	0,94	0,20
1520	50,0	1520	1470	1,03	0,24
1820	50,0	1820	1770	1,22	0,28
2020	50,0	2020	1970	1,35	0,31
2220	50,0	2220	2170	1,48	0,34
2520	50,0	2520	2470	1,67	0,39

Thanks to the high performance of Irsap ARPA 12_2 Horizontal radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment

wall fixing systems with screws and anchors (not available separately from the radiator)
1/2” blind plug
piper cover kit
1/2” air vent

Thermal output per linear metre

Number of Elements	4	6	8	10	12	14	16	18	20	22	24	26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60
Btu/h at Δt=50°C	785,6	1.062,8	1.339,9	1.617,1	1.894,2	2.171,3	2.448,5	2.725,6	3.002,8	3.279,9	3.557,0	3.731,8	3.903,6	4.072,9	4.239,5	4.404,7	4.567,9	4.730,1	4.890,9	5.051,0	5.210,1	5.368,9	5.526,9	5.684,7	5.842,0	5.999,4	6.156,8	6.314,2	6.471,6
Yield per linear meter Watt at Δt=50°C	230,1	311,3	392,5	473,7	554,8	636,0	717,2	798,4	879,5	960,7	1.041,9	1.093,1	1.143,4	1.193,0	1.241,8	1.290,2	1.338,0	1.385,5	1.432,6	1.479,5	1.526,1	1.572,6	1.618,9	1.665,1	1.711,2	1.757,3	1.803,4	1.849,5	1.895,6
Yield per linear meter Watt at Δt=40°C	175,2	236,9	298,5	359,7	423,2	487,3	547,2	606,5	664,1	721,0	797,6	835,0	871,5	907,3	942,3	978,7	1.014,7	1.050,4	1.085,9	1.121,1	1.156,1	1.190,9	1.225,5	1.260,0	1.294,4	1.328,8	1.363,2	1.397,5	1.431,8
Yield per linear meter Watt at Δt=30°C	123,3	166,6	209,7	252,3	298,5	345,7	386,0	425,5	462,3	498,0	565,2	590,0	614,0	637,4	660,2	685,5	710,4	735,1	759,6	784,0	808,2	832,1	855,9	879,6	903,2	926,8	950,3	973,8	997,3
Yield per linear meter Watt at Δt=20°C	75,1	101,4	127,6	153,0	182,5	213,1	236,1	258,2	277,5	295,7	347,8	361,6	374,8	387,6	399,8	414,9	429,8	444,5	459,1	473,6	487,9	502,1	516,1	530,0	543,9	557,7	571,5	585,3	599,0
Exponent change	1,222	1,224	1,227	1,233	1,213	1,194	1,213	1,232	1,259	1,286	1,197	1,207	1,217	1,227	1,237	1,238	1,239	1,241	1,242	1,243	1,244	1,246	1,248	1,249	1,251	1,253	1,254	1,256	1,257

H

= Height (mm)

E

= N° Elem.

H Height (mm)	E N° Elem.		520	550	650	670	700	750	850	870	920	1220	1520	1820	2020	2220	2520
76	4	Watt = W =	120	127	150	154	161	173	196	200	212	281	350	419	465	511	580
112	6	Watt = W =	162	171	202	209	218	233	265	271	286	380	473	567	629	691	784
148	8	Watt = W =	204	216	255	263	275	294	334	341	361	479	597	714	793	871	989
184	10	Watt = W =	246	261	308	317	332	355	403	412	436	578	720	862	957	1052	1194
220	12	Watt = W =	289	305	361	372	388	416	472	483	510	677	843	1010	1121	1232	1398
256	14	Watt = W =	331	350	413	426	445	477	541	553	585	776	967	1158	1285	1412	1603
292	16	Watt = W =	373	394	466	481	502	538	610	624	660	875	1090	1305	1449	1592	1807
328	18	Watt = W =	415	439	519	535	559	599	679	695	734	974	1214	1453	1613	1772	2012
364	20	Watt = W =	457	484	572	589	616	660	748	765	809	1073	1337	1601	1777	1953	2216
400	22	Watt = W =	500	528	624	644	673	721	817	836	884	1172	1460	1749	1941	2133	2421
436	24	Watt = W =	542	573	677	698	729	781	886	906	959	1271	1584	1896	2105	2313	2626
472	26	Watt = W =	568	601	711	732	765	820	929	951	1006	1334	1662	1989	2208	2427	2755
508	28	Watt = W =	595	629	743	766	800	858	972	995	1052	1395	1738	2081	2310	2538	2881
544	30	Watt = W =	620	656	775	799	835	895	1014	1038	1098	1455	1813	2171	2410	2648	3006
580	32	Watt = W =	646	683	807	832	869	931	1056	1080	1142	1515	1888	2260	2508	2757	3129
616	34	Watt = W =	671	710	839	864	903	968	1097	1122	1187	1574	1961	2348	2606	2864	3251
652	36	Watt = W =	696	736	870	896	937	1004	1137	1164	1231	1632	2034	2435	2703	2970	3372
688	38	Watt = W =	720	762	901	928	970	1039	1178	1205	1275	1690	2106	2522	2799	3076	-
724	40	Watt = W =	745	788	931	960	1003	1074	1218	1246	1318	1748	2178	2607	2894	3180	-
760	42	Watt = W =	769	814	962	991	1036	1110	1258	1287	1361	1805	2249	2693	2989	3284	-
796	44	Watt = W =	794	839	992	1022	1068	1145	1297	1328	1404	1862	2320	2778	3083	3388	-
832	46	Watt = W =	818	865	1022	1054	1101	1179	1337	1368	1447	1919	2390	2862	3177	-	-
868	48	Watt = W =	842	890	1052	1085	1133	1214	1376	1408	1489	1975	2461	2946	3270	-	-
904	50	Watt = W =	866	916	1082	1116	1166	1249	1415	1449	1532	2031	2531	3030	3364	-	-
940	52	Watt = W =	890	941	1112	1147	1198	1283	1455	1489	1574	2088	2601	3114	-	-	-
976	54	Watt = W =	914	967	1142	1177	1230	1318	1494	1529	1617	2144	2671	3198	-	-	-
1012	56	Watt = W =	938	992	1172	1208	1262	1353	1533	1569	1659	2200	2741	-	-	-	-
1048	58	Watt = W =	962	1017	1202	1239	1295	1387	1572	1609	1702	2256	2811	-	-	-	-
1084	60	Watt = W =	986	1043	1232	1270	1327	1422	1611	1649	1744	2313	2881	-	-	-	-

Type	Description	Document	Downloads
Technical document			Downloads PDF
Catalogs	Catalog 2023	Catalog 2023	Downloads PDF
Connections	Decorative radiators hydraulic connections	Allacciamenti arredo EN	Downloads PDF
Catalogs	Color chart	Color chart	Downloads PDF
Installation Manual	FOISTR0431M	FOISTR0431M	Downloads PDF
Installation Manual	FOISTR0909M	FOISTR0909M	Downloads PDF
Installation Manual	FOISTR0906M	FOISTR0906M	Downloads PDF
