Filo

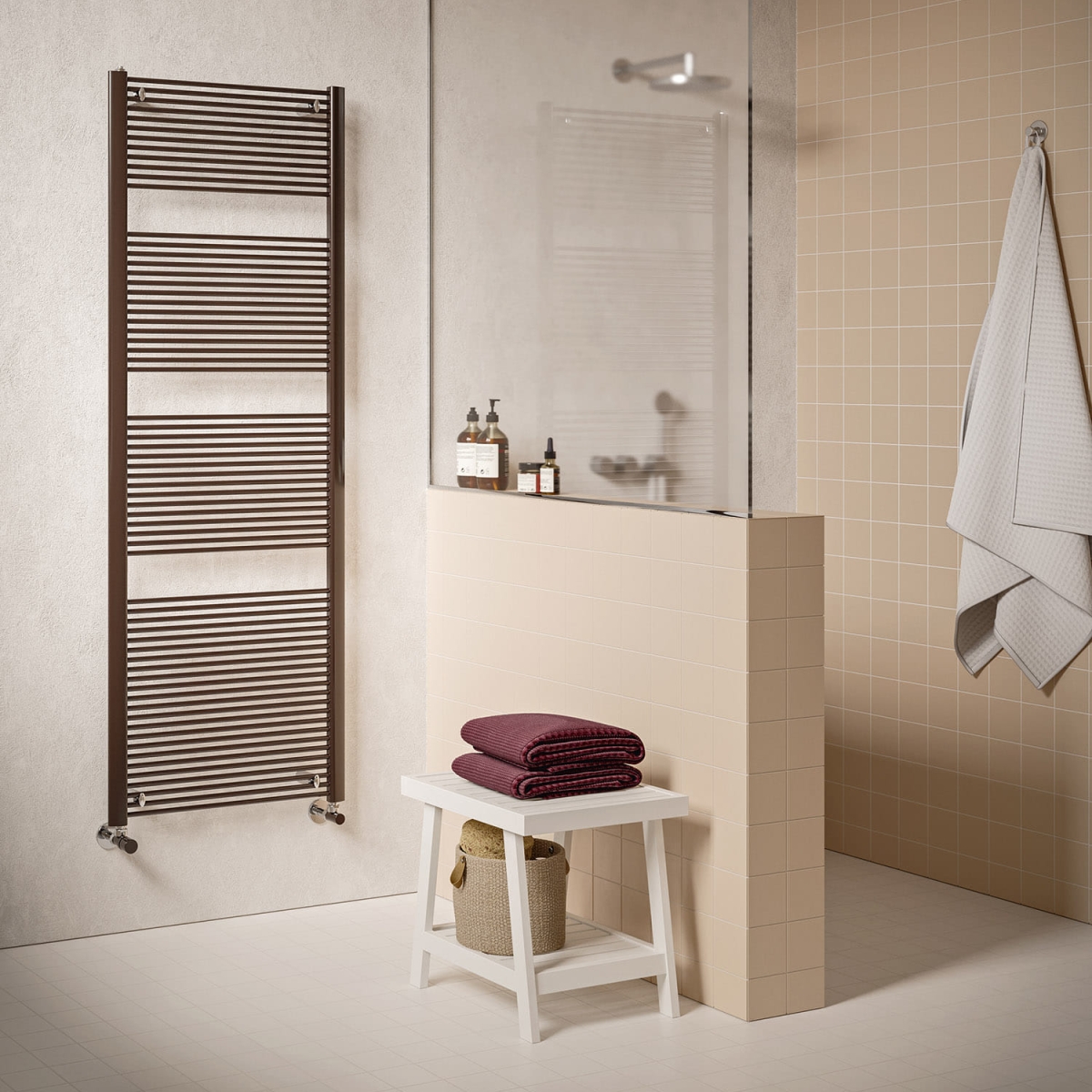

FILO completes the range of Irsap towel warmers. Functional object that replaces the furniture elements in the home and office environments. Its streamlined and captivating line is characterized by the proportionate diameter of the tubes. FILO is available in 4 heights and 3 widths. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Calculate the power
How to choose the Filo radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
Calculate the thermal power of your Filo
Configure your Filo
Configure your Filo
-
Thermal power
Discover accessories
Loading...
Construction features
- steel towel warmer radiator
- horizontal elements featuring round tubes 12 mm diameter
- side manifolds with a 45x30 mm ovoid section
- manifold threading 1/2” Gas right
- maximum working pressure 4 bar
- maximum working temperature 95°C
| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent | Mixed Function (Watts) |
|---|---|---|---|---|---|---|---|---|---|
| 785 31 rails 1 espace | 30,0 | 785 | 466 | 406 | 6,05 | 2,19 | 1.283,6 323,5 376,2 286,3 201,4 122,6 | 1,223 | 400 |
| 785 31 rails 1 espace | 30,0 | 785 | 516 | 456 | 6,54 | 2,30 | 1.417,0 357,2 415,3 316,1 222,3 135,4 | 1,223 | 400 |
| 785 31 rails 1 espace | 30,0 | 785 | 616 | 556 | 7,54 | 2,53 | 1.682,8 424,2 493,2 375,4 264,0 160,8 | 1,223 | 400 |
| 1203 46 rails 2 espaces | 30,0 | 1203 | 466 | 406 | 9,04 | 3,32 | 1.898,8 478,6 556,5 421,9 295,2 178,5 | 1,241 | 400 |
| 1203 46 rails 2 espaces | 30,0 | 1203 | 516 | 456 | 9,78 | 3,49 | 2.096,0 528,3 614,3 465,7 325,9 197,0 | 1,241 | 400 |
| 1203 46 rails 2 espaces | 30,0 | 1203 | 616 | 556 | 11,25 | 3,82 | 2.489,1 627,4 729,5 553,0 387,0 233,9 | 1,241 | 700 |
| 1467 54 rails 3 espaces | 30,0 | 1467 | 466 | 406 | 10,75 | 3,99 | 2.256,0 568,6 661,2 501,2 350,7 212,0 | 1,241 | 700 |
| 1467 54 rails 3 espaces | 30,0 | 1467 | 516 | 456 | 11,62 | 4,19 | 2.489,2 627,4 729,6 553,1 387,0 234,0 | 1,241 | 700 |
| 1467 54 rails 3 espaces | 30,0 | 1467 | 616 | 556 | 13,34 | 4,58 | 2.952,3 744,1 865,3 656,0 459,0 277,5 | 1,241 | 700 |
| 1709 65 rails 3 espaces | 30,0 | 1709 | 466 | 406 | 12,76 | 4,71 | 2.692,4 678,6 789,1 595,3 414,0 248,1 | 1,263 | 700 |
| 1709 65 rails 3 espaces | 30,0 | 1709 | 516 | 456 | 13,80 | 4,95 | 2.972,5 749,2 871,2 657,2 457,0 273,9 | 1,263 | 700 |
| 1709 65 rails 3 espaces | 30,0 | 1709 | 616 | 556 | 15,88 | 5,42 | 3.529,7 889,7 1.034,5 780,4 542,7 325,2 | 1,263 | 1000 |
Thanks to the high performance of Irsap FILO radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n
Standard equipment
- 4 white wall brackets for FILO white and 4 chromed wall brackets for FILO coloured
- 1/2" air vent
| Type | Description | Document | Downloads |
|---|---|---|---|
|
Technical document |
|||
|
Catalogs |
Catalog 2023 | Catalog 2023 | |
|
Connections |
Bathroom radiators hydraulic connections | Allacciamenti bagno EN | |
|
Catalogs |
Color chart | Color chart | |
|
User manual |
FOISTR1009M | FOISTR1009M | |
|
User manual |
FOISTR0308M | FOISTR0308M | |
|
User manual |
FOISTR1033M | FOISTR1033M | |
|
Installation Manual |
FOISTR0248M | FOISTR0248M | |
|
Installation Manual |
FOISTR0328M | FOISTR0328M |
| Type | Description | Document | Downloads |
|---|---|---|---|
|
3D Model |
FILO | FILO |
|
