Kart

The KART line is synonymous with functionality and solidity. Thanks to its high performance it is a radiator suitable for large bathrooms. The large spaces between the heating pipes allow perfect use as a towel warmer. KART is available in 4 heights and 3 widths, also in the version with 50mm attachments. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

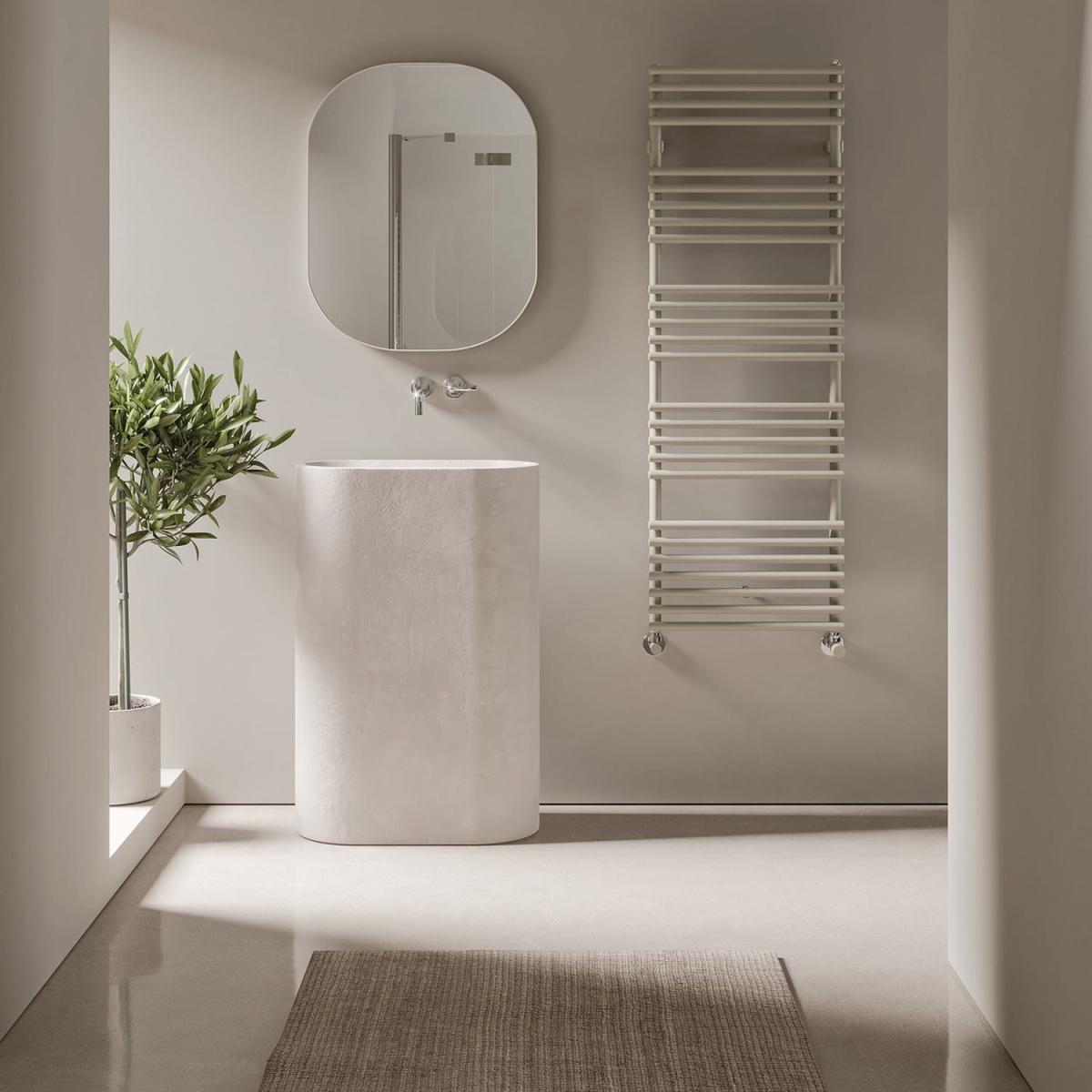

Kart, Hight 1456 mm, Lenght 500 mm, Matt Light Grey Kart, Hight 1456 mm, Lenght 500 mm, Matt Light Grey, (detail)
Salvataggio in corso...

Configure your Kart

Configure your Kart

720 13 rails 2 espaces
1110 20 rails 3 espaces
1450 26 rails 4 espaces
1750 31 rails 5 espaces
3 plugs 1/2 and 1 blind plug, standards connections
50 mm bottom connection
Choose most used
Cancel selection
Connection left/right with angle valve
50mm connection with angle valve
Select valve finish
Seleziona serie
Seleziona superficie

-

Thermal power
Showroom Find Showroom

Discover accessories

APPUFIORE APPUQUADRO APPUTONDO ASTEUTONDO20 ASTEUQUAD20
VALKROSQUCU VALKRODIRCU VALKRO50SQUCU VALKRO50DIRCU VALKROSALVCU VALKROSQMIST TESTELIQ3
ATTCHE430
VALKITCOPTU VALKITCOPT
ANRES700WDI ANRE0700KSP ANRE0700HSP REELETTRASM ATRACTFMF

Construction features

  • steel towel warmer radiator
  • horizontal elements featuring round tubes 23 mm diameter
  • side manifolds with a 30 mm round section
  • manifold threading 1/2” Gas right
  • maximum working pressure 8 bar
  • maximum working temperature 95°C
Kart
Low temperature

Low temperature
Hydraulic radiator

Hydraulic radiator

Model Depth (mm) Height (mm) Width (mm) Conn. centre (mm) Weight (kg) Capacity (lt) Exponent Mixed Function (Watts)
01
720 13 rails 2 espaces 50,0 725 500 460 5,79 2,98 1.214,7 306,2 356,0 273,3 194,4 120,3 1,184 400
720 13 rails 2 espaces 50,0 725 600 560 6,70 3,41 1.429,6 360,3 419,0 322,3 229,7 142,6 1,177 400
720 13 rails 2 espaces 50,0 725 750 710 8,06 4,05 1.753,8 442,0 514,0 396,3 283,5 176,8 1,165 400
1110 20 rails 3 espaces 50,0 1112 500 460 8,89 4,59 1.818,6 458,4 533,0 407,5 288,2 176,9 1,203 400
1110 20 rails 3 espaces 50,0 1112 600 560 10,28 5,24 2.132,5 537,5 625,0 479,3 340,4 210,1 1,190 700
1110 20 rails 3 espaces 50,0 1112 750 710 12,37 6,22 2.603,4 656,2 763,0 587,8 419,9 261,4 1,169 700
1450 26 rails 4 espaces 50,0 1456 500 460 11,56 5,98 2.374,8 598,6 696,0 530,6 374,0 228,4 1,216 700
1450 26 rails 4 espaces 50,0 1456 600 560 13,37 6,83 2.770,5 698,3 812,0 620,9 439,3 269,8 1,203 700
1450 26 rails 4 espaces 50,0 1456 750 710 16,09 8,11 3.364,2 848,0 986,0 757,4 539,1 333,8 1,182 1000
1750 31 rails 5 espaces 50,0 1757 500 460 13,82 7,16 2.883,1 726,7 845,0 644,3 454,2 277,5 1,215 1000
1750 31 rails 5 espaces 50,0 1757 600 560 15,97 8,17 3.343,8 842,8 980,0 749,1 529,8 325,2 1,204 1000
1750 31 rails 5 espaces 50,0 1757 750 710 19,21 9,69 4.033,0 1.016,5 1.182,0 907,0 644,6 398,4 1,187 1000
05
720 13 rails 2 espaces 50,0 725 500 50 5,79 2,98 1.214,7 306,2 356,0 273,3 194,4 120,3 1,184 400
720 13 rails 2 espaces 50,0 725 600 50 6,70 3,41 1.429,6 360,3 419,0 322,3 229,7 142,6 1,177 400
720 13 rails 2 espaces 50,0 725 750 50 8,06 4,05 1.753,8 442,0 514,0 396,3 283,5 176,8 1,165 400
1110 20 rails 3 espaces 50,0 1112 500 50 8,89 4,59 1.818,6 458,4 533,0 407,5 288,2 176,9 1,203 400
1110 20 rails 3 espaces 50,0 1112 600 50 10,28 5,24 2.132,5 537,5 625,0 479,3 340,4 210,1 1,190 700
1110 20 rails 3 espaces 50,0 1112 750 50 12,37 6,22 2.603,4 656,2 763,0 587,8 419,9 261,4 1,169 700
1450 26 rails 4 espaces 50,0 1456 500 50 11,56 5,98 2.374,8 598,6 696,0 530,6 374,0 228,4 1,216 700
1450 26 rails 4 espaces 50,0 1456 600 50 13,37 6,83 2.770,5 698,3 812,0 620,9 439,3 269,8 1,203 700
1450 26 rails 4 espaces 50,0 1456 750 50 16,09 8,11 3.364,2 848,0 986,0 757,4 539,1 333,8 1,182 1000
1750 31 rails 5 espaces 50,0 1757 500 50 13,82 7,16 2.883,1 726,7 845,0 644,3 454,2 277,5 1,215 1000
1750 31 rails 5 espaces 50,0 1757 600 50 15,97 8,17 3.343,8 842,8 980,0 749,1 529,8 325,2 1,204 1000
1750 31 rails 5 espaces 50,0 1757 750 50 19,21 9,69 4.033,0 1.016,5 1.182,0 907,0 644,6 398,4 1,187 1000

Thanks to the high performance of Irsap KART radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment
  • 3 infra-pipe wall fixing brackets for the white KART or 4 CHELA brackets for the colored KART
  • 1/2" air vent
