Like

An evolving element of the frame concept that encompasses the functionality of a light and refined towel warmer. LIKE is aesthetics as a design translation and protagonist. Elements that intersect, lines that merge to give shape to an elegant, discreet radiator with a strong personality, not just a real piece of furniture. Available in 4 heights and 3 widths.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

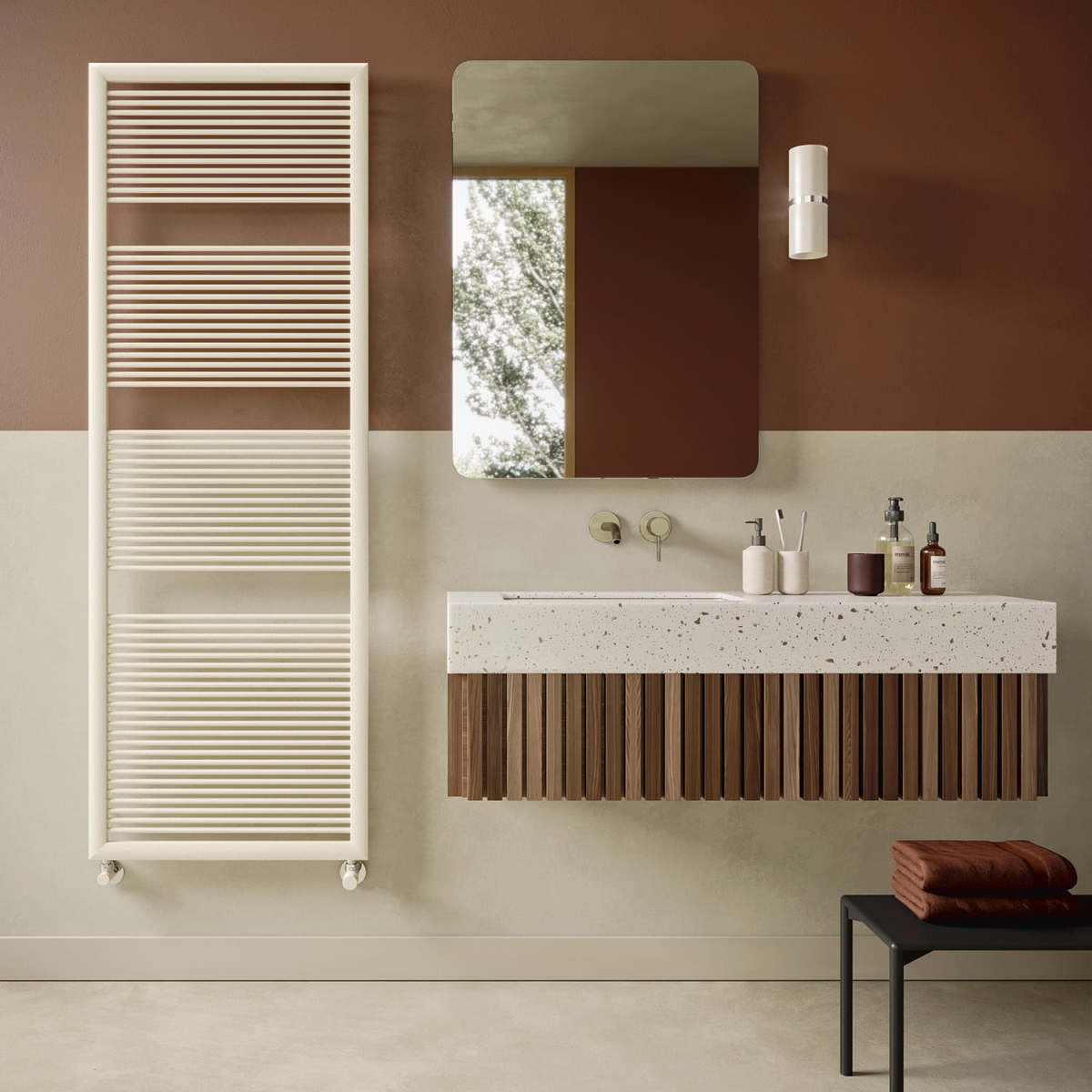

Like, Hight 1806 mm, Lenght 632 mm, Quartz 1 Like, Hight 1806 mm, Lenght 632 mm, Quartz 1, (detail) Like, Hight 1806 mm, Lenght 632 mm, Tobacco Brown Like, Hight 1806 mm, Lenght 632 mm, Tobacco Brown, (detail)
Salvataggio in corso...

Configure your Like

Configure your Like

882 31 rails 1 espace
1300 46 rails 2 espaces
1564 54 rails 3 espaces
1806 65 rails 3 espaces
3 plugs 1/2 and 1 blind plug, standards connections
50 mm bottom connection
Choose most used
Cancel selection
Connection left/right with angle valve
50mm connection with angle valve
Select valve finish
Seleziona serie
Seleziona superficie

-

Thermal power
Showroom Find Showroom

Discover accessories

APPUFIORE APPUQUADRO APPUTONDO ASTEUTONDO20 ASTEUQUAD20
VALKROSQUCU VALKRODIRCU VALKRO50SQUCU VALKRO50DIRCU VALKROSALVCU VALKROSQMIST TESTELIQ3
VALKITCOPTU VALKITCOPT

Construction features

  • steel towel warmer radiator
  • horizontal elements featuring round tubes 12 mm diameter
  • side manifolds with semi-oval section 40x23 mm
  • manifold threading and central connections (50 mm) 1/2” Gas right
  • maximum working pressure 4 bar
  • maximum working temperature 95°C
  • The unique construction features of the Like product do not make it compatible with single-pipe connection
Like
Low temperature

Low temperature
Hydraulic radiator

Hydraulic radiator

Model Depth (mm) Height (mm) Width (mm) Conn. centre (mm) Weight (kg) Capacity (lt) Exponent
01
882 31 rails 1 espace 23,0 882 482 406 6,91 2,77 1.484,2 374,1 435,0 328,8 229,3 137,9 1,254
882 31 rails 1 espace 23,0 882 532 456 7,52 2,96 1.644,6 414,5 482,0 365,1 255,2 154,0 1,245
882 31 rails 1 espace 23,0 882 632 556 8,73 3,33 1.958,5 493,6 574,0 436,4 306,5 186,3 1,228
1300 46 rails 2 espaces 23,0 1300 482 406 9,77 3,82 2.187,1 551,3 641,0 483,9 336,7 202,0 1,260
1300 46 rails 2 espaces 23,0 1300 532 456 10,62 4,06 2.391,8 602,9 701,0 529,7 369,1 221,9 1,256
1300 46 rails 2 espaces 23,0 1300 632 556 12,31 4,54 2.801,3 706,1 821,0 621,7 434,4 262,1 1,246
1564 54 rails 3 espaces 23,0 1564 482 406 11,39 4,44 2.637,5 664,8 773,0 583,4 405,9 243,4 1,261
1564 54 rails 3 espaces 23,0 1564 532 456 12,36 4,70 2.872,9 724,1 842,0 636,0 443,0 266,1 1,257
1564 54 rails 3 espaces 23,0 1564 632 556 14,31 5,24 3.343,8 842,8 980,0 741,6 517,7 311,9 1,249
1806 65 rails 3 espaces 23,0 1806 482 406 13,34 5,11 2.930,9 738,7 859,0 648,2 450,8 270,3 1,262
1806 65 rails 3 espaces 23,0 1806 532 456 14,49 5,42 3.319,9 836,8 973,0 734,7 511,5 307,0 1,259
1806 65 rails 3 espaces 23,0 1806 632 556 16,79 6,03 3.852,1 970,9 1.129,0 853,7 595,4 358,3 1,253
05
882 31 rails 1 espace 23,0 882 482 50 6,91 2,77 1.484,2 374,1 435,0 328,8 229,3 137,9 1,254
882 31 rails 1 espace 23,0 882 532 50 7,52 2,96 1.644,6 414,5 482,0 365,1 255,2 154,0 1,245
882 31 rails 1 espace 23,0 882 632 50 8,73 3,33 1.958,5 493,6 574,0 436,4 306,5 186,3 1,228
1300 46 rails 2 espaces 23,0 1300 482 50 9,77 3,82 2.187,1 551,3 641,0 483,9 336,7 202,0 1,260
1300 46 rails 2 espaces 23,0 1300 532 50 10,62 4,06 2.391,8 602,9 701,0 529,7 369,1 221,9 1,256
1300 46 rails 2 espaces 23,0 1300 632 50 12,31 4,54 2.801,3 706,1 821,0 621,7 434,4 262,1 1,246
1564 54 rails 3 espaces 23,0 1564 482 50 11,39 4,44 2.637,5 664,8 773,0 583,4 405,9 243,4 1,261
1564 54 rails 3 espaces 23,0 1564 532 50 12,36 4,70 2.872,9 724,1 842,0 636,0 443,0 266,1 1,257
1564 54 rails 3 espaces 23,0 1564 632 50 14,31 5,24 3.343,8 842,8 980,0 741,6 517,7 311,9 1,249
1806 65 rails 3 espaces 23,0 1806 482 50 13,34 5,11 2.930,9 738,7 859,0 648,2 450,8 270,3 1,262
1806 65 rails 3 espaces 23,0 1806 532 50 14,49 5,42 3.319,9 836,8 973,0 734,7 511,5 307,0 1,259
1806 65 rails 3 espaces 23,0 1806 632 50 16,79 6,03 3.852,1 970,9 1.129,0 853,7 595,4 358,3 1,253

Thanks to the high performance of Irsap LIKE radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula Q=Qn (Δt / 50)n

Standard equipment
  • 4 wall fixing in the same color as the radiator
  • air vent

Type Description Document Downloads

Technical document

Catalogs

 Catalog 2023 Catalog 2023

Connections

 Bathroom radiators hydraulic connections Allacciamenti bagno EN

Catalogs

 Color chart Color chart

Installation Manual

 FOISTR0248M FOISTR0248M

Installation Manual

 FOISTR0577M FOISTR0577M

Type Description Document Downloads

3D Model

 LIKE LIKE

Calculate the power

How to choose the Like radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
