Minuette

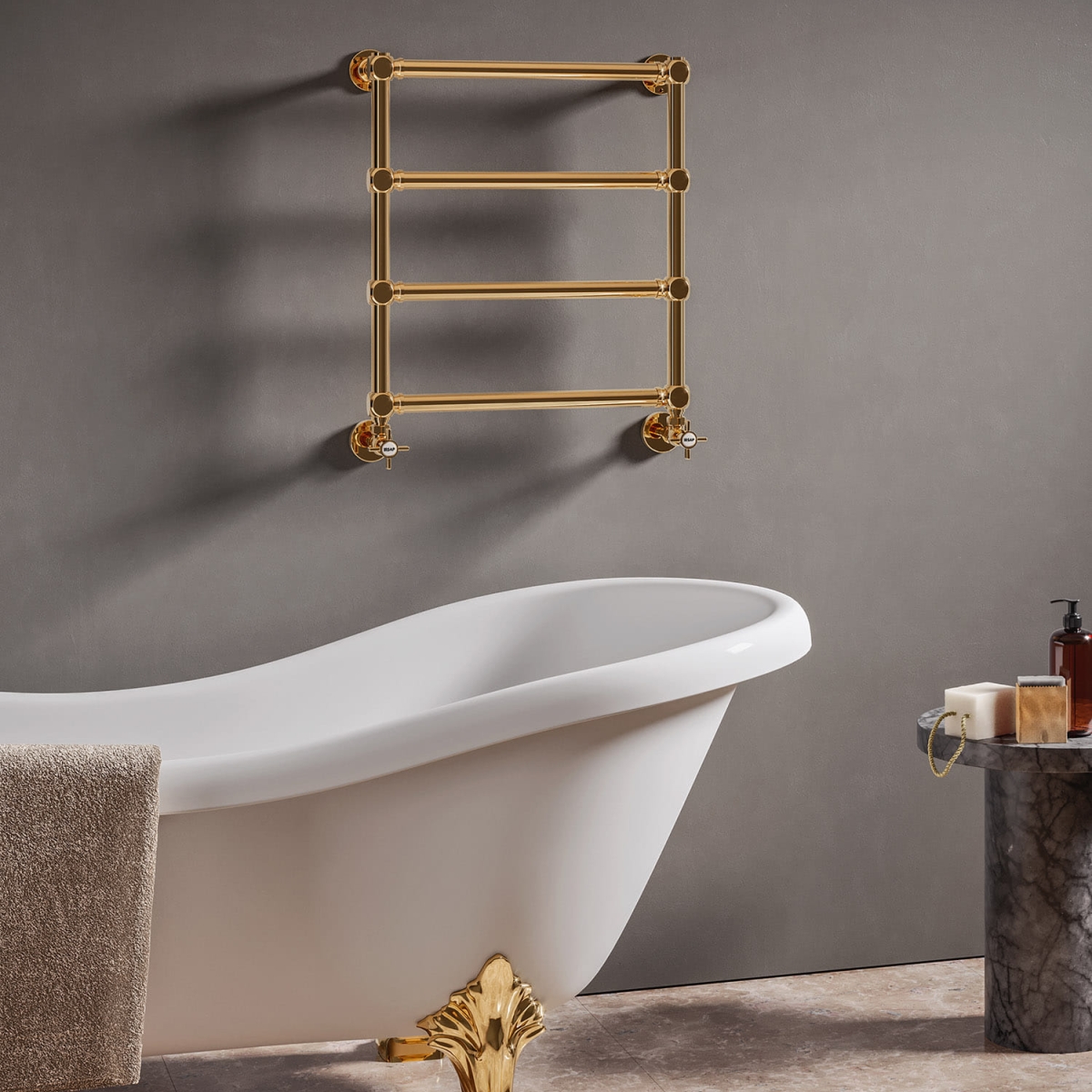

MINUETTE is a stainless brass towel warmer. Available in the following finishes: Chrome-plated, Gold, Brushed Copper, Satin Nickel and Brushed Bronze.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

Calculate the power

How to choose the Minuette radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space

Model	Elements	Depth ^(mm)	Length ^(mm)	Height ^(mm)	Thermal power ^(watt)
{{ battery.modello }}	{{ battery.n_elementi }}	{{ battery.profondita }}	{{ battery.lunghezza }}	{{ battery.altezza }}	{{ battery.power }}

Configure your Minuette

414 - 3 rails - 2 espaces

596 - 4 rails - 3 espaces

778 - 5 rails - 4 espaces

960 - 6 rails - 5 espaces

Gold

Code: 52 • FINISHES • G

Brushed Bronze

Code: 54 • FINISHES • G

Brushed Copper

Code: 5F • FINISHES • G

Satin Nickel

Code: 6E • FINISHES • G

Chrome-plated

Code: 50 • FINISHES • G

-

Thermal power

Showroom Find Showroom

Don't know the thermal power?

Construction features

brass towel warmer
horizontal tubes 30 mm diameter
side manifolds 30 mm diameter
1/2” Gas right threading
maximum working pressure 10 bar
maximum working temperature 95°C

Valves included

Electric radiator available

Low temperature

Hydraulic radiator

Model	Depth (mm)	Height (mm)	Width (mm)	Conn. centre (mm)	Weight (kg)	Capacity (lt)		Exponent
414 - 3 rails - 2 espaces	60,0	414	540	500	5,80	1,20	394,0 99,3 115,5 88,3 62,5 38,4	1,203
596 - 4 rails - 3 espaces	60,0	596	540	500	7,80	1,70	526,0 132,4 154,0 117,7 83,3 51,1	1,203
778 - 5 rails - 4 espaces	60,0	778	540	500	9,70	2,10	657,0 165,6 192,5 145,6 101,5 61,1	1,252
960 - 6 rails - 5 espaces	60,0	960	540	500	11,70	2,60	790,0 199,1 231,5 174,6 121,4 72,8	1,263

Thanks to the high performance of Irsap MINUETTE radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt differt from 50°C use the formula Q=Qn (Δt / 50)n.

Standard equipment

valve and lockshield valve kit for connection to the heating system (1/2 "iron connection)
2 wall fixings
1/2" air-vent valve
1 blind plug
2 pipe covers
