Net

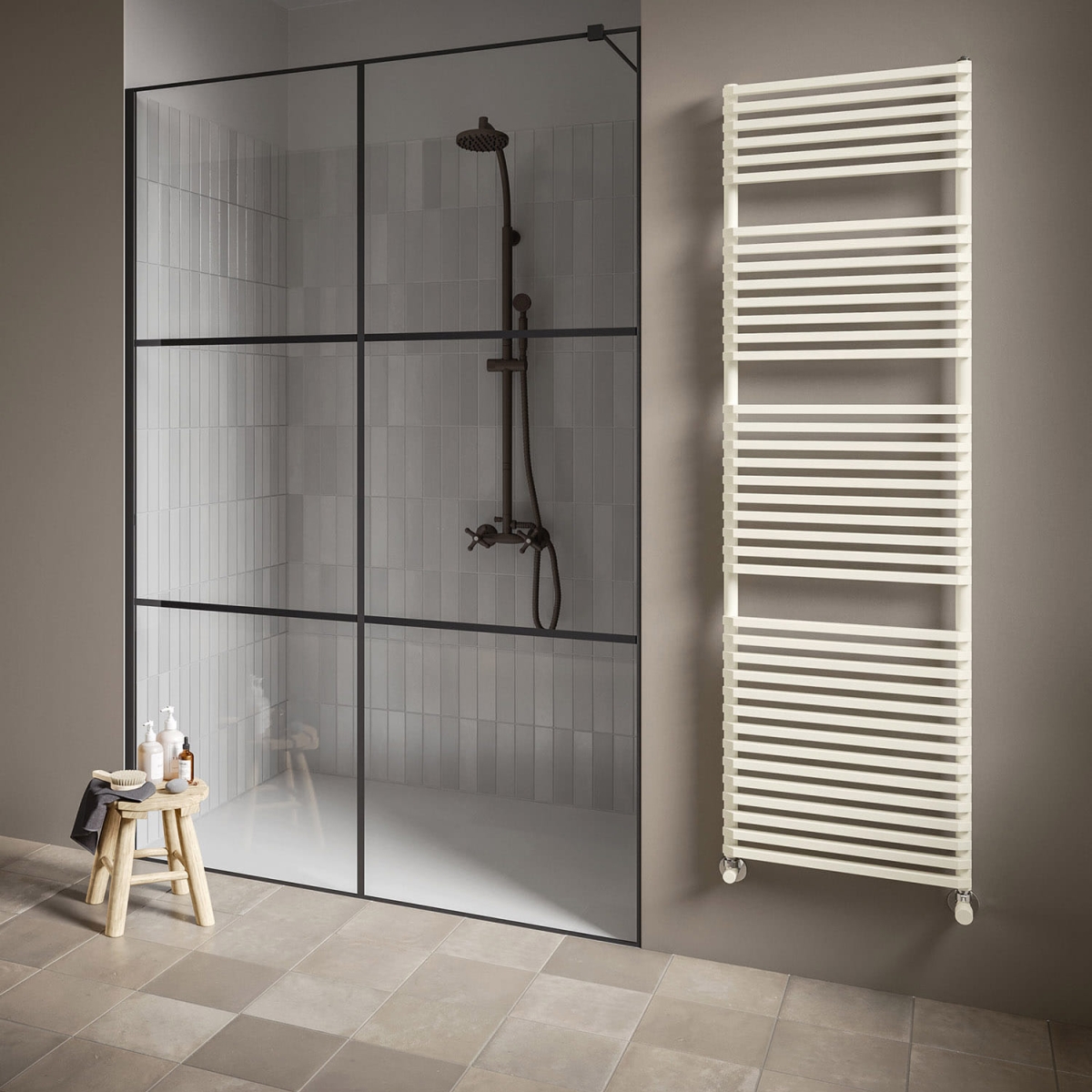

NET is a towel warmer whose rectangular profile of horizontal tubes intersects with the circular manifold, giving a particular line to the radiator. Its geometry fits into the bathroom space, giving personality to the environment. NET is available in 4 heights and 3 widths, also in the version with 50 mm connections. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

Calculate the power

How to choose the Net radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space

Model	Elements	Depth ^(mm)	Length ^(mm)	Height ^(mm)	Thermal power ^(watt)
{{ battery.modello }}	{{ battery.n_elementi }}	{{ battery.profondita }}	{{ battery.lunghezza }}	{{ battery.altezza }}	{{ battery.power }}

Configure your Net

800 18 rails 1 espace

1200 26 rails 2 espaces

1440 32 rails 2 espaces

1760 38 rails 3 espaces

3 plugs 1/2" and 1 blind plug, standards connections

50 mm bottom connection

Choose most used

Connection left/right with angle valve

50mm connection with angle valve

Select valve finish

Standard white

Chrome

MATCHING YOUR RADIATOR

-

Thermal power

Showroom Find Showroom

Don't know the thermal power?

Discover accessories

Construction features

steel towel warmer radiator
horizontal elements featuring rectangular tubes 20x25 mm section
side round manifolds with a 30 mm diameter
manifold threading 1/2” Gas right
maximum working pressure 4 bar
maximum working temperature 95°C

Hydraulic radiator with booster available

Electric radiator available

Electric radiator with booster available

Low temperature

Hydraulic radiator

Model	Depth (mm)	Height (mm)	Width (mm)	Conn. centre (mm)	Weight (kg)	Capacity (lt)		Exponent	Mixed Function (Watts)
01
800 18 rails 1 espace	55,0	800	500	470	7,72	4,60	1.525,2 384,4 447,0 339,7 238,5 144,9	1,230	400
800 18 rails 1 espace	55,0	800	600	570	8,98	5,33	1.835,7 462,7 538,0 412,3 292,6 180,5	1,192	400
800 18 rails 1 espace	55,0	800	750	720	10,87	6,42	2.299,7 579,6 674,0 518,4 369,6 229,4	1,176	700
1200 26 rails 2 espaces	55,0	1200	500	470	11,20	6,70	2.251,9 567,6 660,0 503,7 355,5 217,5	1,211	700
1200 26 rails 2 espaces	55,0	1200	600	570	13,02	7,75	2.681,8 676,0 786,0 601,8 426,5 262,5	1,197	700
1200 26 rails 2 espaces	55,0	1200	750	720	15,75	9,33	3.326,7 838,5 975,0 750,1 534,9 332,2	1,175	1000
1440 32 rails 2 espaces	55,0	1440	500	470	13,71	8,20	2.671,6 673,4 783,0 596,9 420,7 256,9	1,216	700
1440 32 rails 2 espaces	55,0	1440	600	570	15,95	9,50	3.173,2 799,8 930,0 711,6 503,9 309,8	1,200	1000
1440 32 rails 2 espaces	55,0	1440	750	720	19,31	11,44	3.923,8 989,0 1.150,0 884,8 631,1 392,0	1,175	1000
1760 38 rails 3 espaces	55,0	1760	500	470	16,35	9,80	3.214,1 810,1 942,0 718,5 506,7 309,7	1,214	1000
1760 38 rails 3 espaces	55,0	1760	600	570	19,01	11,34	3.807,8 959,8 1.116,0 854,2 605,2 372,3	1,198	1000
1760 38 rails 3 espaces	55,0	1760	750	720	23,00	13,65	4.698,3 1.184,2 1.377,0 1.059,6 755,9 469,6	1,174	1000
05
800 18 rails 1 espace	55,0	800	500	50	7,72	4,60	1.525,2 384,4 447,0 339,7 238,5 144,9	1,230	400
800 18 rails 1 espace	55,0	800	600	50	8,98	5,33	1.835,7 462,7 538,0 412,3 292,6 180,5	1,192	400
800 18 rails 1 espace	55,0	800	750	50	10,87	6,42	2.299,7 579,6 674,0 518,4 369,6 229,4	1,176	700
1200 26 rails 2 espaces	55,0	1200	500	50	11,20	6,70	2.251,9 567,6 660,0 503,7 355,5 217,5	1,211	700
1200 26 rails 2 espaces	55,0	1200	600	50	13,02	7,75	2.681,8 676,0 786,0 601,8 426,5 262,5	1,197	700
1200 26 rails 2 espaces	55,0	1200	750	50	15,75	9,33	3.326,7 838,5 975,0 750,1 534,9 332,2	1,175	1000
1440 32 rails 2 espaces	55,0	1440	500	50	13,71	8,20	2.671,6 673,4 783,0 596,9 420,7 256,9	1,216	700
1440 32 rails 2 espaces	55,0	1440	600	50	15,95	9,50	3.173,2 799,8 930,0 711,6 503,9 309,8	1,200	1000
1440 32 rails 2 espaces	55,0	1440	750	50	19,31	11,44	3.923,8 989,0 1.150,0 884,8 631,1 392,0	1,175	1000
1760 38 rails 3 espaces	55,0	1760	500	50	16,35	9,80	3.214,1 810,1 942,0 718,5 506,7 309,7	1,214	1000
1760 38 rails 3 espaces	55,0	1760	600	50	19,01	11,34	3.807,8 959,8 1.116,0 854,2 605,2 372,3	1,198	1000
1760 38 rails 3 espaces	55,0	1760	750	50	23,00	13,65	4.698,3 1.184,2 1.377,0 1.059,6 755,9 469,6	1,174	1000

Thanks to the high performance of Irsap NET radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment

4 wall fixing in the same color as the radiator
1/2" air vent
