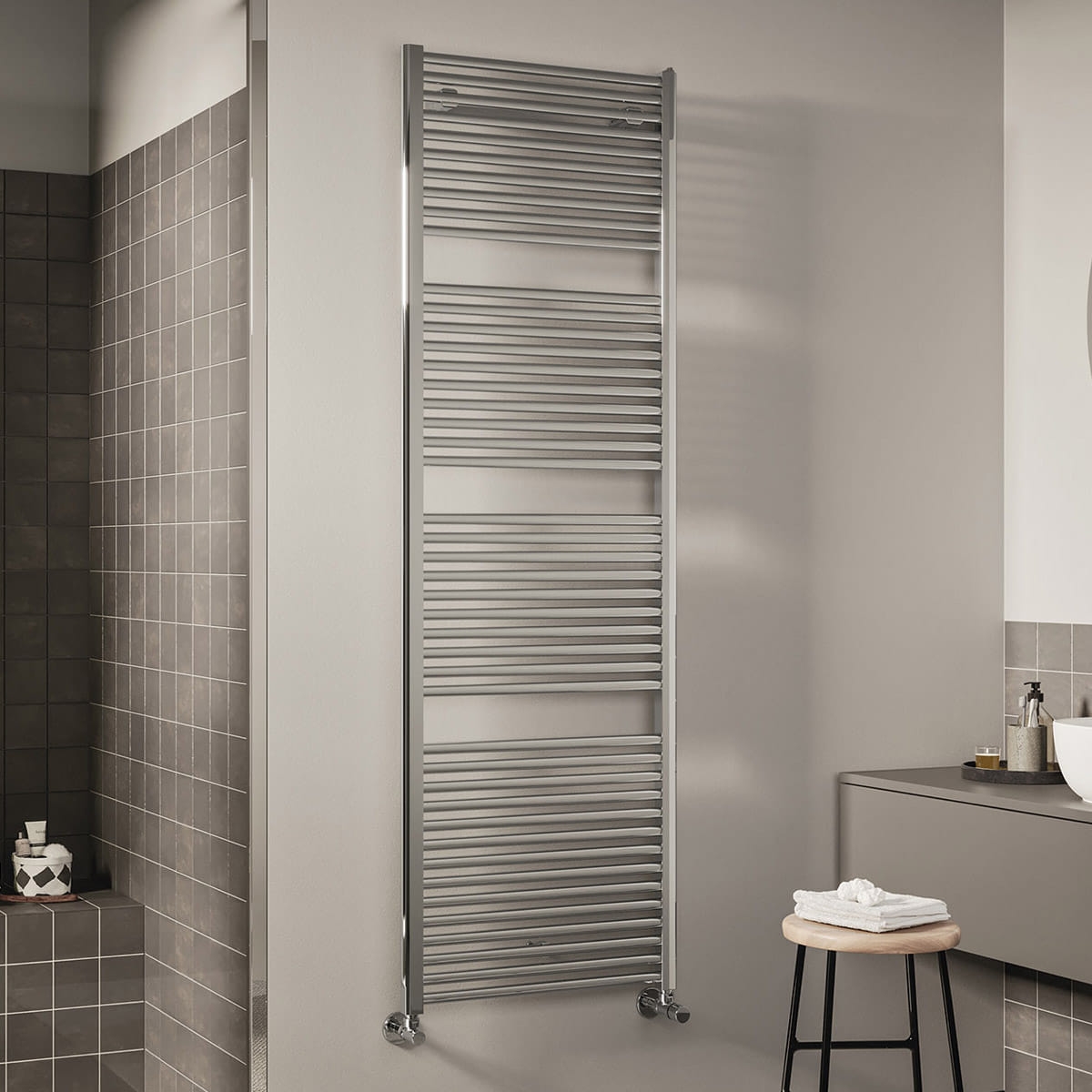

Novo chrome-plated

The minimalist style, in the chromed version and with 23 mm tubes, make NOVO CHROME-PLATED an unconventional towel warmer. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

Calculate the power

How to choose the Novo chrome-plated radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space

Model	Elements	Depth ^(mm)	Length ^(mm)	Height ^(mm)	Thermal power ^(watt)
{{ battery.modello }}	{{ battery.n_elementi }}	{{ battery.profondita }}	{{ battery.lunghezza }}	{{ battery.altezza }}	{{ battery.power }}

Discover accessories

Construction features

steel towel warmer radiator
horizontal elements featuring round tubes 23 mm diameter
side manifolds with semi-oval section 40x30 mm
manifold threading and central connections (50 mm) 1/2” Gas right
maximum working pressure 8 bar
maximum working temperature 95°C

Electric radiator available

10 year Guarantee

Low temperature

Hydraulic radiator

Model	Depth (mm)	Height (mm)	Width (mm)	Conn. centre (mm)	Weight (kg)	Capacity (lt)		Exponent	Mixed Function (Watts)
01
764 19 rails 1 espace	30,0	764	450	406	5,33	3,94	914,1 230,4 267,9 202,9 141,9 85,6	1,245	-
764 19 rails 1 espace	30,0	764	500	456	5,79	4,28	1.000,7 252,2 293,3 222,2 155,4 93,8	1,244	300
764 19 rails 1 espace	30,0	764	600	556	6,72	4,95	1.175,1 296,2 344,4 261,0 182,5 110,3	1,243	300
764 19 rails 1 espace	30,0	764	750	706	10,74	5,62	1.434,4 361,5 420,4 318,7 223,0 134,8	1,241	400
1196 29 rails 2 espaces	30,0	1196	450	406	8,13	6,07	1.217,7 306,9 356,9 268,5 186,1 111,0	1,275	300
1196 29 rails 2 espaces	30,0	1196	500	456	8,84	6,59	1.352,9 341,0 396,5 298,5 207,0 123,6	1,272	400
1196 29 rails 2 espaces	30,0	1196	600	556	10,26	7,61	1.627,2 410,1 476,9 359,5 249,7 149,4	1,267	400
1196 29 rails 2 espaces	30,0	1196	750	706	16,40	8,64	2.039,0 513,9 597,6 451,3 314,2 188,6	1,259	400
1520 36 rails 3 espaces	30,0	1520	450	406	10,15	7,61	1.655,8 417,4 485,3 364,8 252,4 150,3	1,279	400
1520 36 rails 3 espaces	30,0	1520	500	456	11,03	8,24	1.821,0 459,0 533,7 401,4 277,9 165,6	1,277	400
1520 36 rails 3 espaces	30,0	1520	600	556	12,79	9,51	2.150,9 542,1 630,4 474,6 329,1 196,4	1,273	700
1520 36 rails 3 espaces	30,0	1520	750	706	20,41	10,79	2.646,3 667,0 775,6 584,8 406,3 243,2	1,266	700
1808 44 rails 3 espaces	30,0	1808	450	406	12,26	9,20	1.975,9 498,0 579,1 436,0 302,3 180,5	1,272	400
1808 44 rails 3 espaces	30,0	1808	500	456	13,34	9,98	2.179,6 549,4 638,8 481,3 334,1 199,7	1,269	700
1808 44 rails 3 espaces	30,0	1808	600	556	15,49	11,53	2.587,0 652,1 758,2 572,1 397,8 238,5	1,262	700
1808 44 rails 3 espaces	30,0	1808	750	706	24,80	13,09	3.198,4 806,2 937,4 708,8 494,4 297,5	1,252	1000
05
764 19 rails 1 espace	30,0	764	450	406	5,33	3,94	914,1 230,4 267,9 202,9 141,9 85,6	1,245	-
764 19 rails 1 espace	30,0	764	500	456	5,79	4,28	1.000,7 252,2 293,3 222,2 155,4 93,8	1,244	300
764 19 rails 1 espace	30,0	764	600	556	6,72	4,95	1.175,1 296,2 344,4 261,0 182,5 110,3	1,243	300
764 19 rails 1 espace	30,0	764	750	706	10,74	5,62	1.434,4 361,5 420,4 318,7 223,0 134,8	1,241	400
1196 29 rails 2 espaces	30,0	1196	450	406	8,13	6,07	1.217,7 306,9 356,9 268,5 186,1 111,0	1,275	300
1196 29 rails 2 espaces	30,0	1196	500	456	8,84	6,59	1.352,9 341,0 396,5 298,5 207,0 123,6	1,272	400
1196 29 rails 2 espaces	30,0	1196	600	556	10,26	7,61	1.627,2 410,1 476,9 359,5 249,7 149,4	1,267	400
1196 29 rails 2 espaces	30,0	1196	750	706	16,40	8,64	2.039,0 513,9 597,6 451,3 314,2 188,6	1,259	400
1520 36 rails 3 espaces	30,0	1520	450	406	10,15	7,61	1.655,8 417,4 485,3 364,8 252,4 150,3	1,279	400
1520 36 rails 3 espaces	30,0	1520	500	456	11,03	8,24	1.821,0 459,0 533,7 401,4 277,9 165,6	1,277	400
1520 36 rails 3 espaces	30,0	1520	600	556	12,79	9,51	2.150,9 542,1 630,4 474,6 329,1 196,4	1,273	700
1520 36 rails 3 espaces	30,0	1520	750	706	20,41	10,79	2.646,3 667,0 775,6 584,8 406,3 243,2	1,266	700
1808 44 rails 3 espaces	30,0	1808	450	406	12,26	9,20	1.975,9 498,0 579,1 436,0 302,3 180,5	1,272	400
1808 44 rails 3 espaces	30,0	1808	500	456	13,34	9,98	2.179,6 549,4 638,8 481,3 334,1 199,7	1,269	700
1808 44 rails 3 espaces	30,0	1808	600	556	15,49	11,53	2.587,0 652,1 758,2 572,1 397,8 238,5	1,262	700
1808 44 rails 3 espaces	30,0	1808	750	706	24,80	13,09	3.198,4 806,2 937,4 708,8 494,4 297,5	1,252	1000

Thanks to the high performance of Irsap NOVO CHROME PLATED radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Irsap guarantees only the hydraulic seal of NOVO CHROME PLATED radiators for 10 years, starting from sales in 2009.

Standard equipment

pair of Chrome-plated CHELA wall brackets
wall spacers
1/2" chrome-plated air vent
