Novo Cult Chrome-plated

NOVO CULT in the chrome plated version stresses the rigorous attention to details, particulars that make the difference in modern living space. Available in 4 heights and 3 widths. Thanks to the electric heater (optional) it can work even when the heating system is turned off.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

Calculate the power

How to choose the Novo Cult Chrome-plated radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space

Model	Elements	Depth ^(mm)	Length ^(mm)	Height ^(mm)	Thermal power ^(watt)
{{ battery.modello }}	{{ battery.n_elementi }}	{{ battery.profondita }}	{{ battery.lunghezza }}	{{ battery.altezza }}	{{ battery.power }}

Discover accessories

Construction features

steel towel warmer radiator
horizontal elements featuring round tubes 25 mm diameter
side manifolds with semi-oval section 50x36,5 mm
manifold threading and central connections (50 mm) 1/2” Gas right
maximum working pressure 6 bar
maximum working temperature 95°C

10 year Guarantee

Low temperature

Hydraulic radiator

Model	Depth (mm)	Height (mm)	Width (mm)	Conn. centre (mm)	Weight (kg)	Capacity (lt)		Exponent	Mixed Function (Watts)
01

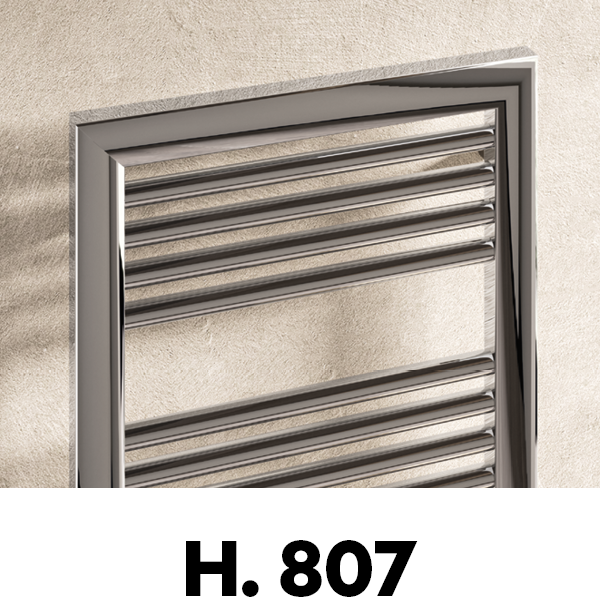

807 15 rails 1 espace	36,5	807	450	406	7,79	5,61	933,9 235,4 273,7 208,2 146,3 89,0	1,226	300
807 15 rails 1 espace	36,5	807	500	456	8,40	6,08	1.027,0 258,9 301,0 228,8 160,6 97,6	1,229	300
807 15 rails 1 espace	36,5	807	600	556	9,64	7,00	1.210,9 305,2 354,9 269,4 188,8 114,4	1,236	400
1207 23 rails 2 espaces	36,5	1207	450	406	11,01	7,97	1.330,3 335,3 389,9 294,2 204,7 122,7	1,262	400
1207 23 rails 2 espaces	36,5	1207	500	456	11,84	8,60	1.456,9 367,2 427,0 322,3 224,3 134,5	1,260	400
1207 23 rails 2 espaces	36,5	1207	600	556	13,50	9,87	1.714,9 432,2 502,6 379,6 264,3 158,7	1,258	400

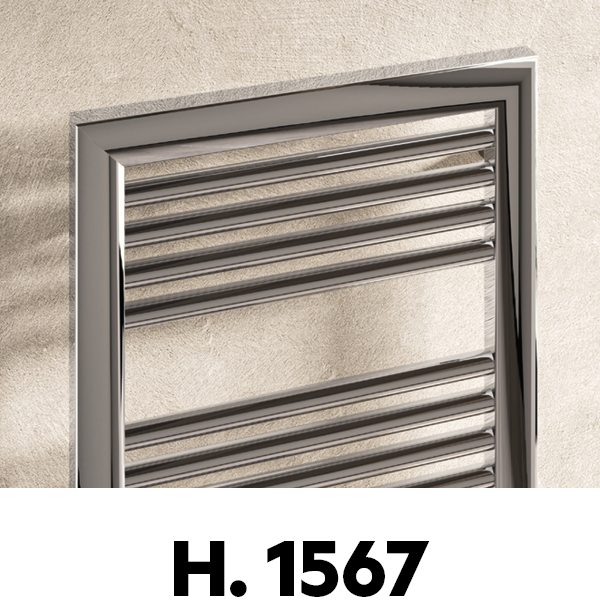

1567 30 rails 3 espaces	36,5	1567	450	406	13,87	10,06	1.726,8 435,3 506,1 381,6 265,2 158,8	1,265	400
1567 30 rails 3 espaces	36,5	1567	500	456	14,89	10,84	1.896,4 478,0 555,8 419,2 291,4 174,5	1,264	400
1567 30 rails 3 espaces	36,5	1567	600	556	16,92	12,40	2.235,5 563,5 655,2 494,3 343,8 206,0	1,263	700
1807 36 rails 3 espaces	36,5	1807	450	406	16,02	11,65	2.011,0 506,9 589,4 445,2 310,0 186,2	1,258	400
1807 36 rails 3 espaces	36,5	1807	500	456	17,20	12,56	2.216,4 558,7 649,6 490,9 342,1 205,6	1,255	700
1807 36 rails 3 espaces	36,5	1807	600	556	19,56	14,37	2.624,9 661,6 769,3 582,0 406,2 244,6	1,250	700
05
807 15 rails 1 espace	36,5	807	450	50	7,79	5,61	933,9 235,4 273,7 208,2 146,3 89,0	1,226	300
807 15 rails 1 espace	36,5	807	500	50	8,40	6,08	1.027,0 258,9 301,0 228,8 160,6 97,6	1,229	300
807 15 rails 1 espace	36,5	807	600	50	9,64	7,00	1.210,9 305,2 354,9 269,4 188,8 114,4	1,236	400
1207 23 rails 2 espaces	36,5	1207	450	50	11,01	7,97	1.330,3 335,3 389,9 294,2 204,7 122,7	1,262	400
1207 23 rails 2 espaces	36,5	1207	500	50	11,84	8,60	1.456,9 367,2 427,0 322,3 224,3 134,5	1,260	400
1207 23 rails 2 espaces	36,5	1207	600	50	13,50	9,87	1.714,9 432,2 502,6 379,6 264,3 158,7	1,258	400
1567 30 rails 3 espaces	36,5	1567	450	50	13,87	10,06	1.726,8 435,3 506,1 381,6 265,2 158,8	1,265	400
1567 30 rails 3 espaces	36,5	1567	500	50	14,89	10,84	1.896,4 478,0 555,8 419,2 291,4 174,5	1,264	400
1567 30 rails 3 espaces	36,5	1567	600	50	16,92	12,40	2.235,5 563,5 655,2 494,3 343,8 206,0	1,263	700
1807 36 rails 3 espaces	36,5	1807	450	50	16,02	11,65	2.011,0 506,9 589,4 445,2 310,0 186,2	1,258	400
1807 36 rails 3 espaces	36,5	1807	500	50	17,20	12,56	2.216,4 558,7 649,6 490,9 342,1 205,6	1,255	700
1807 36 rails 3 espaces	36,5	1807	600	50	19,56	14,37	2.624,9 661,6 769,3 582,0 406,2 244,6	1,250	700

Thanks to the high performance of Irsap NOVO CULT CHROME-PLATED radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula Q=Qn (Δt / 50)n.

Irsap guarantees only the hydraulic seal of NOVO CULT CHROME-PLATED radiators for 10 years, starting from sales in 2009.

Standard equipment

4 chrome-plated wall fixing
1/2" chrome-plated air vent
