Tesi 4

Thanks to the four columns and high performance, TESI 4 is suitable for environments that require high caloric power. The TESI radiators represent the most functional, modular and elegant system for heating all environments. TESI 4 has a depth of 139 mm and heights from 200 to 2500 mm.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

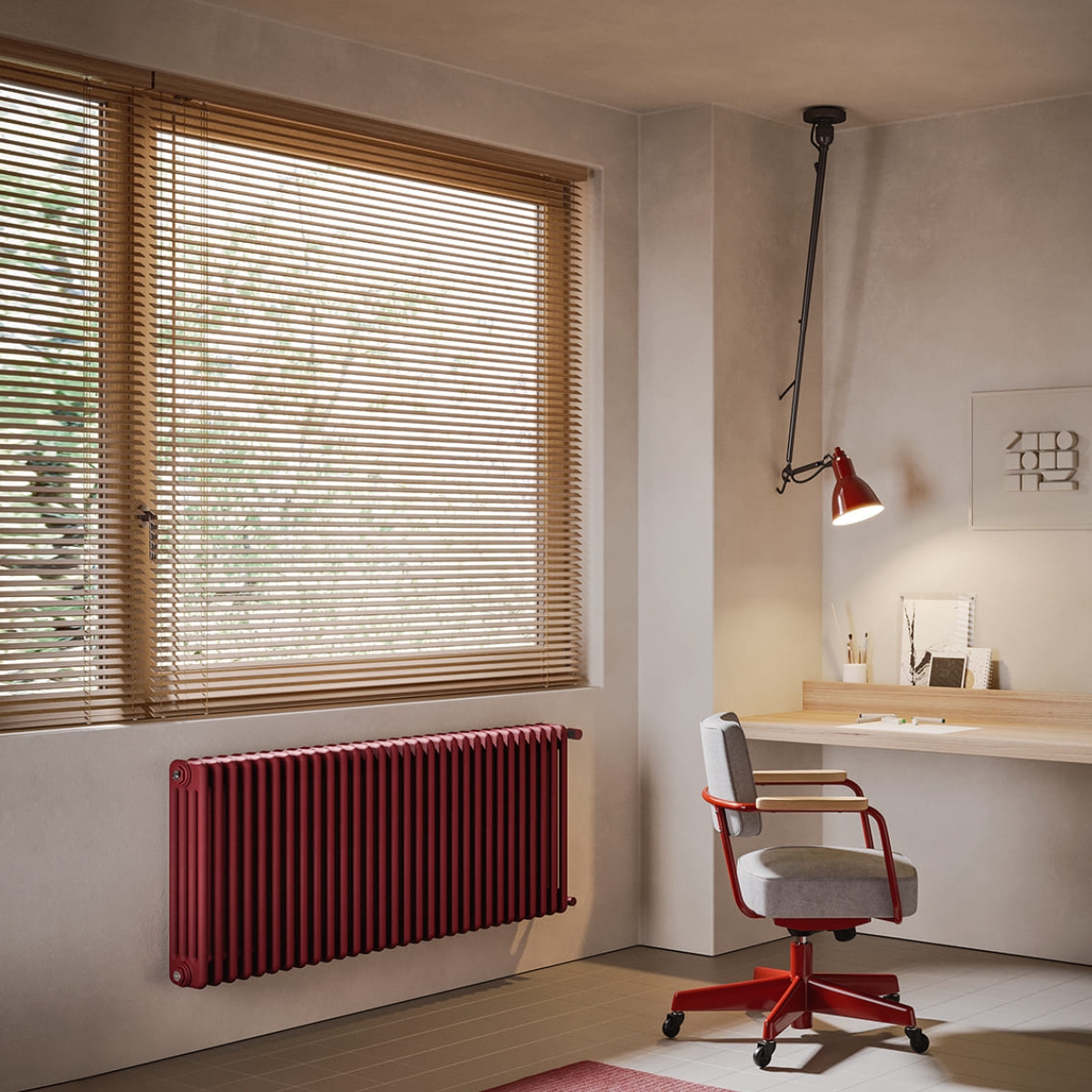

Tesi 4, 30 elements, Hight 565 mm, Lenght 1350 mm, Flame Red Tesi 4, 30 elements, Hight 565 mm, Lenght 1350 mm, Flame Red, (detail)

Calculate the power

How to choose the Tesi 4 radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space

Saving...

Configure your TESI

Loader
Finishes and models represented are not to be considered binding and may not have a perfect correspondence with the delivered product.

Configure your TESI

Tesi 2
Tesi 3
Tesi 4
Tesi 5
Tesi 6
Choose most used
Cancel selection
Connection top/bottom with angle valve
Connection left/right with angle valve
50mm connection with angle valve
Select valve finish
Select series
Select surface
Select wall
Select floor
Dark travertine
Light travertine
Tiles
Mahogany
Oak
Wooden Planks

-

Thermal power
Showroom Find Showroom
Don't know the thermal power?

Discover accessories

APPUFIORE APPUQUADRO APPUTONDO ASTEUTONDO20
ANSTERT APPAPUNO AUMIDIF01
VALKROSQUCU VALKRODIRCU VALKRO50SQUCU VALKRO50DIRCU VALKROSALVCU VALKROSQMIST KITMONESC TESTELIQ3
VALKITCOPTU VALKITCOPT
ATTCHELA4 AMENSFI AMENSMU AMENSRT AMENSRTC40 ATTCHELA5
AMENSPAV AMENBAIE

Construction features

  • tubes made of 25 mm diameter sheet steel
  • manifolds made of pressed sheet steel
  • elements 45 mm long (element pitch)
  • threading 1”1/4 G right and left on top and bottom manifold
  • maximum working pressure 10 bar
  • maximum working temperature 95°C
Tesi 4
Low temperature

Low temperature
10 year Guarantee

10 year Guarantee
Hydraulic radiator

Hydraulic radiator

Model Depth (mm) Height (mm) Conn. centre (mm) Weight (kg) Capacity (lt) Exponent
200 139,0 200 127 0,69 0,60 76,2 22,3 26,0 19,3 13,2 7,7 1,326
300 139,0 300 235 1,00 0,75 123,5 36,2 42,1 31,8 22,1 13,3 1,258
350 139,0 350 285 1,14 0,83 142,0 41,6 48,4 36,5 25,4 15,2 1,265
365 139,0 365 300 1,19 0,85 147,5 43,2 50,3 37,9 26,3 15,7 1,267
400 139,0 400 335 1,29 0,91 160,3 47,0 54,6 41,1 28,5 17,0 1,272
450 139,0 450 385 1,43 0,99 178,4 52,3 60,8 45,7 31,6 18,8 1,279
500 139,0 500 435 1,58 1,07 196,3 57,5 66,9 50,2 34,7 20,6 1,286
535 139,0 535 470 1,68 1,12 208,8 61,2 71,2 53,3 36,8 21,8 1,291
550 139,0 550 485 1,72 1,15 214,1 62,8 73,0 54,7 37,7 22,3 1,293
565 139,0 565 500 1,76 1,17 219,4 64,3 74,8 56,0 38,6 22,8 1,296
600 139,0 600 535 1,87 1,23 231,8 67,9 79,0 59,1 40,7 24,0 1,300
650 139,0 650 585 2,01 1,30 249,3 73,1 85,0 63,5 43,6 25,6 1,307
665 139,0 665 600 2,05 1,33 254,5 74,6 86,7 64,8 44,4 26,1 1,310
685 139,0 685 620 2,11 1,36 261,5 76,6 89,1 66,5 45,6 26,8 1,312
750 139,0 750 685 2,30 1,46 284,0 83,2 96,8 72,1 49,3 28,8 1,322
765 139,0 765 700 2,34 1,49 289,2 84,8 98,6 73,4 50,1 29,3 1,324
815 139,0 815 750 2,48 1,57 306,4 89,8 104,4 77,6 52,9 30,9 1,331
865 139,0 865 800 2,63 1,64 323,5 94,8 110,3 81,8 55,7 32,4 1,338
885 139,0 885 820 2,69 1,68 330,4 96,8 112,6 83,5 56,8 33,0 1,341
900 139,0 900 835 2,73 1,70 335,5 98,3 114,3 84,7 57,6 33,4 1,343
1000 139,0 1000 935 3,02 1,86 369,4 108,3 125,9 93,4 63,5 36,9 1,340
1200 139,0 1200 1135 3,60 2,17 436,6 128,0 148,8 110,5 75,2 43,8 1,335
1500 139,0 1500 1435 4,48 2,63 535,9 157,1 182,6 135,8 92,7 54,1 1,328
1800 139,0 1800 1735 5,35 3,11 633,9 185,8 216,0 160,9 110,0 64,4 1,321
2000 139,0 2000 1935 5,92 3,44 698,7 204,8 238,1 177,5 121,5 71,3 1,317
2200 139,0 2200 2135 6,50 3,76 763,0 223,6 260,0 194,0 133,0 78,1 1,312
2500 139,0 2500 2435 7,36 4,25 859,1 251,8 292,8 218,8 150,2 88,5 1,306

(*) Thanks to the high performance of Irsap TESI 4 radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment
  • 4 universal brakets for TESI (except for very small batteries)
  • 4 connections with reductions 1 “1/4 to 1/2” for TESI white and colored, mounted on the radiator
  • 1 1/2” air vent
  • 1 cover for 1/2” blind plug

L
= Length (mm)
E
= N° Elem.
L Length (mm) E N° Elem.   200 300 350 365 400 450 500 535 550 565 600 650 665 685 750 765 815 865 885 900 1000 1200 1500 1800 2000 2200 2500
90 2 Watt =   W =  52 84 97 101 109 122 134 142 146 150 158 170 173 178 194 197 209 221 225 229 252 298 365 432 476 520 586
135 3 Watt =   W =  78 126 145 151 164 182 201 213 219 224 237 255 260 267 290 296 313 331 338 343 378 446 548 648 714 780 878
180 4 Watt =   W =  104 168 194 201 218 243 268 285 292 299 316 340 347 356 387 394 418 441 450 457 504 595 731 864 952 1040 1171
225 5 Watt =   W =  130 210 242 251 273 304 335 356 365 374 395 425 434 446 484 493 522 551 563 572 630 744 913 1080 1191 1300 1464
270 6 Watt =   W =  156 252 290 302 328 365 401 427 438 449 474 510 520 535 581 591 627 662 676 686 755 893 1096 1296 1429 1560 1757
315 7 Watt =   W =  182 295 339 352 382 426 468 498 511 523 553 595 607 624 678 690 731 772 788 800 881 1042 1278 1512 1667 1820 2049
360 8 Watt =   W =  208 337 387 402 437 486 535 569 584 598 632 680 694 713 774 788 835 882 901 915 1007 1190 1461 1728 1905 2080 2342
405 9 Watt =   W =  234 379 436 452 492 547 602 640 657 673 711 765 781 802 871 887 940 992 1013 1029 1133 1339 1644 1944 2143 2340 2635
450 10 Watt =   W =  260 421 484 503 546 608 669 712 730 748 790 850 867 891 968 986 1044 1103 1126 1143 1259 1488 1826 2160 2381 2600 2928
495 11 Watt =   W =  286 463 532 553 601 669 736 783 803 822 869 934 954 980 1065 1084 1149 1213 1238 1258 1385 1637 2009 2376 2619 2860 3220
540 12 Watt =   W =  312 505 581 603 655 729 803 854 876 897 948 1019 1041 1069 1161 1183 1253 1323 1351 1372 1511 1785 2192 2592 2857 3120 3513
585 13 Watt =   W =  338 547 629 654 710 790 870 925 948 972 1027 1104 1128 1158 1258 1281 1357 1433 1464 1486 1637 1934 2374 2808 3095 - -
630 14 Watt =   W =  364 589 677 704 765 851 937 996 1021 1047 1106 1189 1214 1248 1355 1380 1462 1544 1576 1601 1763 2083 2557 3024 3333 - -
675 15 Watt =   W =  390 631 726 754 819 912 1004 1067 1094 1122 1185 1274 1301 1337 1452 1478 1566 1654 1689 1715 1889 2232 2739 3240 3572 - -
720 16 Watt =   W =  416 673 774 804 874 973 1070 1138 1167 1196 1264 1359 1388 1426 1549 1577 1671 1764 1801 1829 2014 2381 2922 3456 3810 - -
765 17 Watt =   W =  442 715 823 855 929 1033 1137 1210 1240 1271 1343 1444 1475 1515 1645 1676 1775 1874 1914 1944 2140 2529 3105 3673 4048 - -
810 18 Watt =   W =  468 757 871 905 983 1094 1204 1281 1313 1346 1422 1529 1561 1604 1742 1774 1880 1985 2027 2058 2266 2678 3287 3889 4286 - -
855 19 Watt =   W =  494 800 919 955 1038 1155 1271 1352 1386 1421 1501 1614 1648 1693 1839 1873 1984 2095 2139 2172 2392 2827 3470 4105 4524 - -
900 20 Watt =   W =  520 842 968 1005 1092 1216 1338 1423 1459 1495 1580 1699 1735 1782 1936 1971 2088 2205 2252 2287 2518 2976 3653 4321 4762 - -
945 21 Watt =   W =  546 884 1016 1056 1147 1277 1405 1494 1532 1570 1659 1784 1822 1871 2033 2070 2193 2315 2364 2401 2644 3125 3835 4537 5000 - -
990 22 Watt =   W =  572 926 1065 1106 1202 1337 1472 1565 1605 1645 1738 1869 1908 1960 2129 2168 2297 2426 2477 2515 2770 3273 4018 4753 5238 - -
1035 23 Watt =   W =  598 968 1113 1156 1256 1398 1539 1636 1678 1720 1817 1954 1995 2050 2226 2267 2402 2536 2590 2630 2896 - - - - - -
1080 24 Watt =   W =  624 1010 1161 1206 1311 1459 1606 1708 1751 1794 1896 2039 2082 2139 2323 2365 2506 2646 2702 2744 3022 - - - - - -
1125 25 Watt =   W =  650 1052 1210 1257 1366 1520 1673 1779 1824 1869 1975 2124 2169 2228 2420 2464 2611 2757 2815 2858 3148 - - - - - -
1170 26 Watt =   W =  675 1094 1258 1307 1420 1581 1739 1850 1897 1944 2053 2209 2255 2317 2517 2563 2715 2867 2927 2973 3273 - - - - - -
1215 27 Watt =   W =  701 1136 1307 1357 1475 1641 1806 1921 1970 2019 2132 2294 2342 2406 2613 2661 2819 2977 3040 3087 3399 - - - - - -
1260 28 Watt =   W =  727 1178 1355 1408 1529 1702 1873 1992 2043 2094 2211 2379 2429 2495 2710 2760 2924 3087 3153 3201 3525 - - - - - -
1305 29 Watt =   W =  753 1220 1403 1458 1584 1763 1940 2063 2116 2168 2290 2464 2515 2584 2807 2858 3028 3198 3265 3316 3651 - - - - - -
1350 30 Watt =   W =  779 1262 1452 1508 1639 1824 2007 2135 2189 2243 2369 2549 2602 2673 2904 2957 3133 3308 3378 3430 3777 - - - - - -
1395 31 Watt =   W =  805 1304 1500 1558 1693 1884 2074 2206 2262 2318 2448 2633 2689 2762 3000 3055 - - - - - - - - - - -
1440 32 Watt =   W =  831 1347 1548 1609 1748 1945 2141 2277 2335 2393 2527 2718 2776 2852 3097 3154 - - - - - - - - - - -
1485 33 Watt =   W =  857 1389 1597 1659 1802 2006 2208 2348 2408 2467 2606 2803 2862 2941 3194 3252 - - - - - - - - - - -
1530 34 Watt =   W =  883 1431 1645 1709 1857 2067 2275 2419 2481 2542 2685 2888 2949 3030 3291 3351 - - - - - - - - - - -
1575 35 Watt =   W =  909 1473 1694 1759 1912 2128 2342 2490 2554 2617 2764 2973 3036 3119 3388 3450 - - - - - - - - - - -
1620 36 Watt =   W =  935 1515 1742 1810 1966 2188 2408 2561 2627 2692 2843 3058 3123 3208 - - - - - - - - - - - - -
1665 37 Watt =   W =  961 1557 1790 1860 2021 2249 2475 2633 2700 2766 2922 3143 3209 3297 - - - - - - - - - - - - -
1710 38 Watt =   W =  987 1599 1839 1910 2076 2310 2542 2704 2772 2841 3001 3228 3296 3386 - - - - - - - - - - - - -
1755 39 Watt =   W =  1013 1641 1887 1961 2130 2371 2609 2775 2845 2916 3080 3313 3383 3475 - - - - - - - - - - - - -
1800 40 Watt =   W =  1039 1683 1936 2011 2185 2432 2676 2846 2918 2991 3159 3398 3470 3564 - - - - - - - - - - - - -
