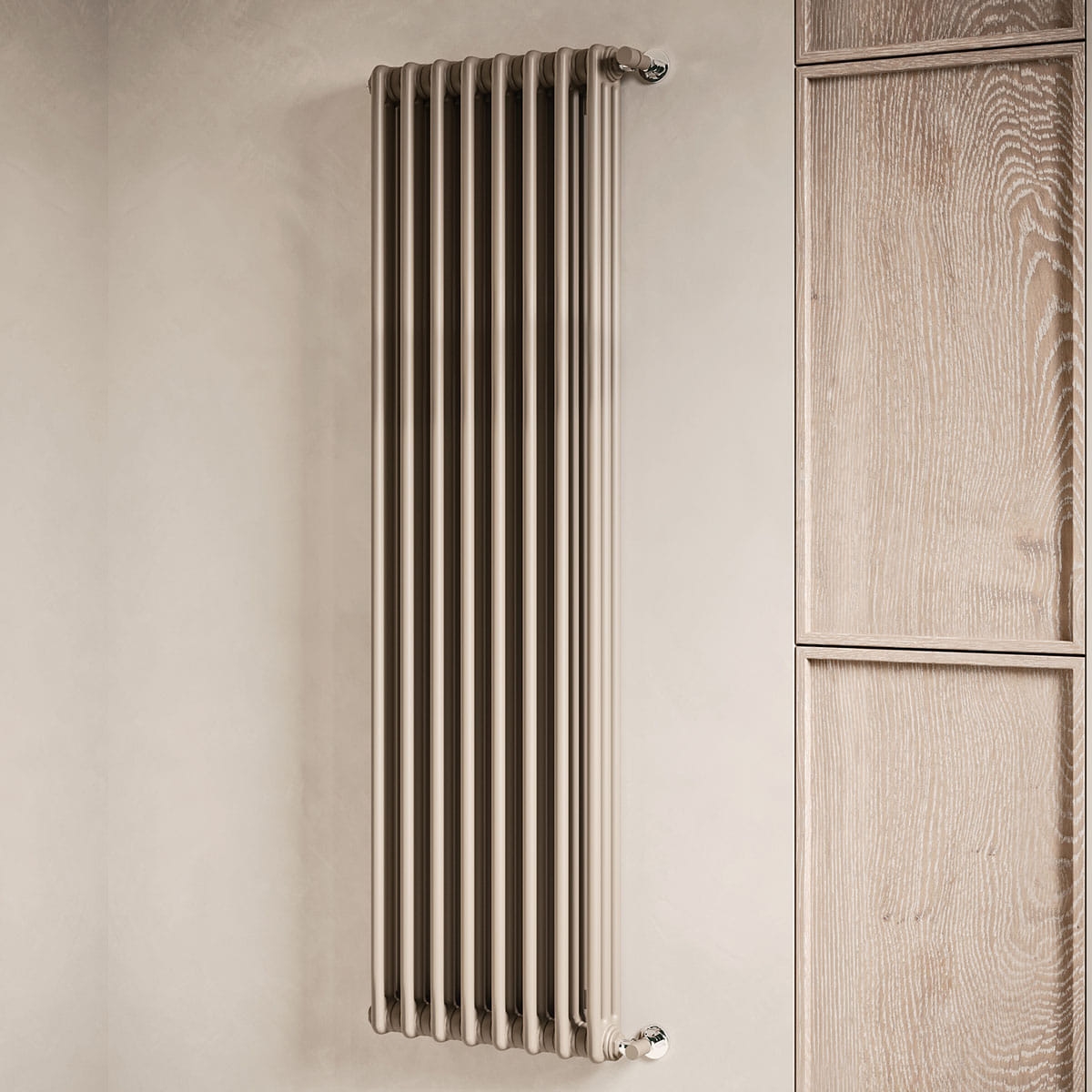

Tesi Clean
TESI CLEAN is the evolution of the historic IRSAP Tesi product. Thanks to its special structure featuring single, spaced elements, TESI CLEAN can be used in special environments such as nursing homes, schools and hospitals where the radiators must be kept particularly clean. The main features of this product is the 65 mm distance between one element and another, the absence of corners and sharp edges, the possibility of connection to various types of water connections. TESI CLEAN is available in any number of columns (from 2 to 6 columns) and any height (from 200 mm to 2500 mm). Thanks to its special structure with round tubes (25 mm diameter) it is also ideal for low temperature systems. The heat yields of TESI CLEAN have been measured pursuant to EN 442 technical standards.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Calculate the power
How to choose the Tesi Clean radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
Calculate the thermal power of your Tesi Clean
Loading...
Saving...
Configure your Tesi Clean
Configure your Tesi Clean
-
Thermal power
Discover accessories
Loading...
Construction features
- 25 mm diameter sheet steel tubes
- pressed sheet steel manifolds
- 65 mm long elements (element pitch)
- 1 1/4” G right and left threading at the end of the upper and lower manifolds
- maximum working pressure 10 bar
- maximum working temperature 95°C
| Model | Depth (mm) | Height (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent |
|---|---|---|---|---|---|---|---|
| TESI 2 CLEAN 300 | 65,0 | 302 | 235 | 0,58 | 0,53 | 94,2 23,7 27,6 20,8 14,5 8,7 | 1,263 |
| TESI 3 CLEAN 300 | 101,0 | 302 | 235 | 0,73 | 0,71 | 124,9 31,5 36,6 27,6 19,2 11,6 | 1,258 |
| TESI 4 CLEAN 300 | 139,0 | 302 | 235 | 0,96 | 0,89 | 157,0 39,6 46,0 34,6 24,0 14,3 | 1,273 |
| TESI 5 CLEAN 300 | 177,0 | 302 | 235 | 1,26 | 0,95 | 193,5 48,8 56,7 42,7 29,6 17,6 | 1,275 |
| TESI 6 CLEAN 300 | 215,0 | 302 | 235 | 1,48 | 1,13 | 229,6 57,9 67,3 50,7 35,2 21,1 | 1,268 |
| TESI 2 CLEAN 350 | 65,0 | 352 | 285 | 0,64 | 0,57 | 108,5 27,4 31,8 24,0 16,7 10,0 | 1,265 |
| TESI 3 CLEAN 350 | 101,0 | 352 | 285 | 0,82 | 0,77 | 144,7 36,5 42,4 32,0 22,3 13,3 | 1,262 |
| TESI 4 CLEAN 350 | 139,0 | 352 | 285 | 1,07 | 0,97 | 181,5 45,8 53,2 40,0 27,7 16,5 | 1,278 |
| TESI 5 CLEAN 350 | 177,0 | 352 | 285 | 1,41 | 1,06 | 223,5 56,3 65,5 49,3 34,1 20,3 | 1,278 |
| TESI 6 CLEAN 350 | 215,0 | 352 | 285 | 1,66 | 1,26 | 265,1 66,8 77,7 58,5 40,6 24,3 | 1,270 |
| TESI 2 CLEAN 365 | 65,0 | 367 | 300 | 0,66 | 0,58 | 112,9 28,5 33,1 25,0 17,3 10,4 | 1,265 |
| TESI 3 CLEAN 365 | 101,0 | 367 | 300 | 0,85 | 0,79 | 150,5 37,9 44,1 33,3 23,1 13,9 | 1,264 |
| TESI 4 CLEAN 365 | 139,0 | 367 | 300 | 1,11 | 1,00 | 189,0 47,6 55,4 41,7 28,8 17,2 | 1,279 |
| TESI 5 CLEAN 365 | 177,0 | 367 | 300 | 1,45 | 1,09 | 232,7 58,7 68,2 51,3 35,5 21,1 | 1,279 |
| TESI 6 CLEAN 365 | 215,0 | 367 | 300 | 1,71 | 1,29 | 276,0 69,6 80,9 60,9 42,3 25,2 | 1,271 |
| TESI 2 CLEAN 400 | 65,0 | 402 | 335 | 0,70 | 0,61 | 122,8 31,0 36,0 27,1 18,9 11,3 | 1,267 |
| TESI 3 CLEAN 400 | 101,0 | 402 | 335 | 0,91 | 0,83 | 164,5 41,5 48,2 36,3 25,2 15,1 | 1,266 |
| TESI 4 CLEAN 400 | 139,0 | 402 | 335 | 1,19 | 1,06 | 206,1 51,9 60,4 45,4 31,4 18,7 | 1,282 |
| TESI 5 CLEAN 400 | 177,0 | 402 | 335 | 1,55 | 1,16 | 253,5 63,9 74,3 55,8 38,6 23,0 | 1,281 |
| TESI 6 CLEAN 400 | 215,0 | 402 | 335 | 1,84 | 1,38 | 300,6 75,8 88,1 66,3 46,0 27,5 | 1,273 |
| TESI 2 CLEAN 450 | 65,0 | 452 | 385 | 0,76 | 0,65 | 137,2 34,6 40,2 30,3 21,0 12,6 | 1,269 |
| TESI 3 CLEAN 450 | 101,0 | 452 | 385 | 1,00 | 0,90 | 183,9 46,4 53,9 40,6 28,2 16,8 | 1,270 |
| TESI 4 CLEAN 450 | 139,0 | 452 | 385 | 1,31 | 1,14 | 230,7 58,1 67,6 50,7 35,1 20,8 | 1,286 |
| TESI 5 CLEAN 450 | 177,0 | 452 | 385 | 1,70 | 1,27 | 283,2 71,4 83,0 62,3 43,1 25,6 | 1,284 |
| TESI 6 CLEAN 450 | 215,0 | 452 | 385 | 2,01 | 1,50 | 336,1 84,7 98,5 74,1 51,4 30,6 | 1,275 |
| TESI 2 CLEAN 500 | 65,0 | 502 | 435 | 0,82 | 0,69 | 151,2 38,1 44,3 33,4 23,2 13,8 | 1,271 |
| TESI 3 CLEAN 500 | 101,0 | 502 | 435 | 1,09 | 0,96 | 203,0 51,2 59,5 44,8 31,0 18,5 | 1,274 |
| TESI 4 CLEAN 500 | 139,0 | 502 | 435 | 1,43 | 1,22 | 254,9 64,2 74,7 56,0 38,7 22,9 | 1,290 |
| TESI 5 CLEAN 500 | 177,0 | 502 | 435 | 1,85 | 1,37 | 312,9 78,9 91,7 68,8 47,5 28,2 | 1,287 |
| TESI 6 CLEAN 500 | 215,0 | 502 | 435 | 2,19 | 1,63 | 370,9 93,5 108,7 81,8 56,6 33,7 | 1,277 |
| TESI 2 CLEAN 550 | 65,0 | 552 | 485 | 0,88 | 0,74 | 165,1 41,6 48,4 36,4 25,3 15,1 | 1,273 |
| TESI 3 CLEAN 550 | 101,0 | 552 | 485 | 1,18 | 1,02 | 222,5 56,1 65,2 49,0 33,9 20,2 | 1,278 |
| TESI 4 CLEAN 550 | 139,0 | 552 | 485 | 1,55 | 1,30 | 279,1 70,4 81,8 61,3 42,2 25,0 | 1,294 |
| TESI 5 CLEAN 550 | 177,0 | 552 | 485 | 2,00 | 1,47 | 342,2 86,3 100,3 75,2 51,9 30,8 | 1,290 |
| TESI 6 CLEAN 550 | 215,0 | 552 | 485 | 2,37 | 1,75 | 405,7 102,3 118,9 89,4 61,9 36,8 | 1,279 |
| TESI 2 CLEAN 600 | 65,0 | 602 | 535 | 0,94 | 0,78 | 179,1 45,2 52,5 39,5 27,4 16,3 | 1,275 |
| TESI 3 CLEAN 600 | 101,0 | 602 | 535 | 1,26 | 1,08 | 241,6 60,9 70,8 53,2 36,8 21,9 | 1,282 |
| TESI 4 CLEAN 600 | 139,0 | 602 | 535 | 1,67 | 1,39 | 303,0 76,4 88,8 66,5 45,8 27,0 | 1,298 |
| TESI 5 CLEAN 600 | 177,0 | 602 | 535 | 2,15 | 1,58 | 371,2 93,6 108,8 81,5 56,2 33,3 | 1,293 |
| TESI 6 CLEAN 600 | 215,0 | 602 | 535 | 2,55 | 1,88 | 440,1 110,9 129,0 96,9 67,0 39,9 | 1,282 |
| TESI 2 CLEAN 650 | 65,0 | 652 | 585 | 1,00 | 0,82 | 193,1 48,7 56,6 42,6 29,5 17,6 | 1,277 |
| TESI 3 CLEAN 650 | 101,0 | 652 | 585 | 1,35 | 1,15 | 260,7 65,7 76,4 57,3 39,6 23,5 | 1,286 |
| TESI 4 CLEAN 650 | 139,0 | 652 | 585 | 1,78 | 1,47 | 326,9 82,4 95,8 71,7 49,3 29,1 | 1,302 |
| TESI 5 CLEAN 650 | 177,0 | 652 | 585 | 2,29 | 1,68 | 400,2 100,9 117,3 87,9 60,5 35,8 | 1,296 |
| TESI 6 CLEAN 650 | 215,0 | 652 | 585 | 2,72 | 2,00 | 474,3 119,5 139,0 104,4 72,1 42,9 | 1,284 |
| TESI 2 CLEAN 750 | 65,0 | 752 | 685 | 1,12 | 0,90 | 220,8 55,6 64,7 48,6 33,6 20,0 | 1,281 |
| TESI 3 CLEAN 750 | 101,0 | 752 | 685 | 1,53 | 1,27 | 298,6 75,3 87,5 65,6 45,2 26,7 | 1,294 |
| TESI 4 CLEAN 750 | 139,0 | 752 | 685 | 2,02 | 1,64 | 374,3 94,3 109,7 81,9 56,2 33,0 | 1,310 |
| TESI 5 CLEAN 750 | 177,0 | 752 | 685 | 2,59 | 1,89 | 457,5 115,3 134,1 100,3 69,0 40,7 | 1,301 |
| TESI 6 CLEAN 750 | 215,0 | 752 | 685 | 3,08 | 2,25 | 542,5 136,7 159,0 119,3 82,3 48,8 | 1,288 |
| TESI 2 CLEAN 900 | 65,0 | 902 | 835 | 1,29 | 1,03 | 262,0 66,1 76,8 57,6 39,8 23,6 | 1,286 |
| TESI 3 CLEAN 900 | 101,0 | 902 | 835 | 1,80 | 1,46 | 354,8 89,4 104,0 77,7 53,4 31,4 | 1,306 |
| TESI 4 CLEAN 900 | 139,0 | 902 | 835 | 2,38 | 1,89 | 444,9 112,1 130,4 97,1 66,4 38,8 | 1,322 |
| TESI 5 CLEAN 900 | 177,0 | 902 | 835 | 3,03 | 2,20 | 542,8 136,8 159,1 118,8 81,5 47,9 | 1,310 |
| TESI 6 CLEAN 900 | 215,0 | 902 | 835 | 3,61 | 2,63 | 643,2 162,1 188,5 141,2 97,3 57,5 | 1,295 |
| TESI 2 CLEAN 1000 | 65,0 | 1002 | 935 | 1,50 | 1,10 | 289,7 73,0 84,9 63,7 43,9 26,0 | 1,290 |
| TESI 3 CLEAN 1000 | 101,0 | 1002 | 935 | 2,11 | 1,56 | 392,0 98,8 114,9 85,7 58,7 34,5 | 1,315 |
| TESI 4 CLEAN 1000 | 139,0 | 1002 | 935 | 2,79 | 2,03 | 491,3 123,8 144,0 107,0 73,0 42,6 | 1,330 |
| TESI 5 CLEAN 1000 | 177,0 | 1002 | 935 | 3,56 | 2,38 | 599,1 151,0 175,6 130,9 89,7 52,6 | 1,316 |
| TESI 6 CLEAN 1000 | 215,0 | 1002 | 935 | 4,24 | 2,84 | 709,7 178,9 208,0 155,6 107,1 63,2 | 1,300 |
| TESI 2 CLEAN 1200 | 65,0 | 1202 | 1135 | 1,76 | 1,26 | 344,3 86,8 100,9 75,6 52,1 30,8 | 1,296 |
| TESI 3 CLEAN 1200 | 101,0 | 1202 | 1135 | 2,50 | 1,81 | 466,1 117,5 136,6 101,9 69,8 40,9 | 1,316 |
| TESI 4 CLEAN 1200 | 139,0 | 1202 | 1135 | 3,31 | 2,36 | 583,5 147,1 171,0 127,2 86,8 50,7 | 1,327 |
| TESI 5 CLEAN 1200 | 177,0 | 1202 | 1135 | 4,20 | 2,79 | 710,0 179,0 208,1 155,2 106,3 62,4 | 1,315 |
| TESI 6 CLEAN 1200 | 215,0 | 1202 | 1135 | 5,02 | 3,33 | 841,1 212,0 246,5 184,4 126,8 74,9 | 1,301 |
| TESI 2 CLEAN 1500 | 65,0 | 1502 | 1435 | 2,15 | 1,51 | 426,8 107,6 125,1 93,5 64,3 37,9 | 1,303 |
| TESI 3 CLEAN 1500 | 101,0 | 1502 | 1435 | 3,08 | 2,18 | 575,9 145,2 168,8 125,8 86,1 50,5 | 1,318 |
| TESI 4 CLEAN 1500 | 139,0 | 1502 | 1435 | 4,09 | 2,85 | 719,6 181,4 210,9 157,0 107,3 62,7 | 1,324 |
| TESI 5 CLEAN 1500 | 177,0 | 1502 | 1435 | 5,18 | 3,40 | 873,8 220,3 256,1 191,0 130,9 76,8 | 1,315 |
| TESI 6 CLEAN 1500 | 215,0 | 1502 | 1435 | 6,18 | 4,07 | 1.034,9 260,8 303,3 226,8 156,0 92,0 | 1,302 |
| TESI 2 CLEAN 1800 | 65,0 | 1802 | 1735 | 2,54 | 1,75 | 509,8 128,5 149,4 111,5 76,5 45,0 | 1,311 |
| TESI 3 CLEAN 1800 | 101,0 | 1802 | 1735 | 3,67 | 2,54 | 684,1 172,4 200,5 149,4 102,2 59,9 | 1,319 |
| TESI 4 CLEAN 1800 | 139,0 | 1802 | 1735 | 4,87 | 3,34 | 853,3 215,1 250,1 186,3 127,4 74,6 | 1,320 |
| TESI 5 CLEAN 1800 | 177,0 | 1802 | 1735 | 6,15 | 4,01 | 1.034,2 260,7 303,1 226,1 154,9 90,9 | 1,314 |
| TESI 6 CLEAN 1800 | 215,0 | 1802 | 1735 | 7,35 | 4,80 | 1.224,6 308,7 358,9 268,3 184,4 108,7 | 1,304 |
| TESI 2 CLEAN 2000 | 65,0 | 2002 | 1935 | 2,80 | 1,92 | 565,4 142,5 165,7 123,8 85,0 50,1 | 1,306 |
| TESI 3 CLEAN 2000 | 101,0 | 2002 | 1935 | 4,05 | 2,79 | 755,4 190,4 221,4 165,0 112,9 66,1 | 1,319 |
| TESI 4 CLEAN 2000 | 139,0 | 2002 | 1935 | 5,39 | 3,66 | 941,0 237,2 275,8 205,5 140,6 82,3 | 1,320 |
| TESI 5 CLEAN 2000 | 177,0 | 2002 | 1935 | 6,80 | 4,42 | 1.139,6 287,2 334,0 249,1 170,6 100,1 | 1,315 |
| TESI 6 CLEAN 2000 | 215,0 | 2002 | 1935 | 8,13 | 5,29 | 1.349,1 340,0 395,4 295,1 202,3 118,9 | 1,312 |
| TESI 2 CLEAN 2200 | 65,0 | 2202 | 2135 | 3,06 | 2,08 | 621,0 156,5 182,0 136,1 93,6 55,2 | 1,302 |
| TESI 3 CLEAN 2200 | 101,0 | 2202 | 2135 | 4,44 | 3,03 | 826,4 208,3 242,2 180,5 123,6 72,4 | 1,318 |
| TESI 4 CLEAN 2200 | 139,0 | 2202 | 2135 | 5,90 | 3,99 | 1.028,0 259,1 301,3 224,5 153,6 90,0 | 1,319 |
| TESI 5 CLEAN 2200 | 177,0 | 2202 | 2135 | 7,44 | 4,83 | 1.243,7 313,5 364,5 271,7 186,1 109,1 | 1,317 |
| TESI 6 CLEAN 2200 | 215,0 | 2202 | 2135 | 8,90 | 5,78 | 1.472,3 371,1 431,5 321,4 219,9 128,8 | 1,320 |
| TESI 2 CLEAN 2500 | 65,0 | 2502 | 2435 | 3,45 | 2,32 | 705,6 177,9 206,8 154,9 106,8 63,2 | 1,295 |
| TESI 3 CLEAN 2500 | 101,0 | 2502 | 2435 | 5,03 | 3,40 | 931,8 234,9 273,1 203,6 139,4 81,8 | 1,316 |
| TESI 4 CLEAN 2500 | 139,0 | 2502 | 2435 | 6,68 | 4,48 | 1.157,0 291,6 339,1 252,7 172,9 101,3 | 1,319 |
| TESI 5 CLEAN 2500 | 177,0 | 2502 | 2435 | 8,42 | 5,44 | 1.397,6 352,3 409,6 305,2 208,9 122,4 | 1,318 |
| TESI 6 CLEAN 2500 | 215,0 | 2502 | 2435 | 10,07 | 6,52 | 1.654,5 417,0 484,9 360,3 245,6 143,1 | 1,332 |
Thanks to the high performance of Irsap TESI CLEAN radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n
L
=
Length (mm)
E
=
N° Elem.
| L Length (mm) | E N° Elem. | 302 | 352 | 367 | 402 | 452 | 502 | 552 | 602 | 652 | 752 | 902 | 1002 | 1202 | 1502 | 1802 | 2002 | 2202 | 2502 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 130 | 2 | Watt = W = | 135 | 155 | 162 | 176 | 197 | 217 | 238 | 258 | 278 | 318 | 377 | 416 | 493 | 607 | 718 | 791 | 729 | 819 |
| 195 | 3 | Watt = W = | 138 | 160 | 166 | 181 | 203 | 224 | 245 | 212 | 229 | 263 | 312 | 345 | 410 | 506 | 602 | 664 | 727 | 819 |
| 260 | 4 | Watt = W = | 269 | 311 | 324 | 352 | 394 | 435 | 476 | 516 | 556 | 636 | 754 | 832 | 986 | 1213 | 1436 | 1582 | 1726 | 1940 |
| 325 | 5 | Watt = W = | 337 | 389 | 405 | 441 | 493 | 544 | 595 | 645 | 695 | 795 | 943 | 1040 | 1233 | 1517 | 1795 | 1977 | 1823 | 2048 |
| 390 | 6 | Watt = W = | 276 | 319 | 332 | 362 | 406 | 448 | 491 | 425 | 458 | 525 | 624 | 689 | 820 | 1013 | 1203 | 1328 | 1453 | 1639 |
| 455 | 7 | Watt = W = | 471 | 544 | 566 | 617 | 690 | 761 | 832 | 903 | 973 | 1113 | 1320 | 1456 | 1726 | 2123 | 2512 | 2768 | 3021 | 3394 |
| 520 | 8 | Watt = W = | 538 | 622 | 647 | 705 | 788 | 870 | 951 | 1032 | 1112 | 1272 | 1508 | 1664 | 1972 | 2426 | 2871 | 2672 | 2916 | 3277 |
| 585 | 9 | Watt = W = | 414 | 479 | 499 | 544 | 608 | 672 | 736 | 637 | 688 | 788 | 936 | 1034 | 1229 | 1519 | 1805 | 1993 | 2180 | 2458 |
| 650 | 10 | Watt = W = | 673 | 777 | 809 | 881 | 985 | 1087 | 1189 | 1290 | 1390 | 1590 | 1885 | 2080 | 2465 | 3033 | 3589 | 3954 | 4315 | 4849 |
| 715 | 11 | Watt = W = | 740 | 855 | 890 | 969 | 1084 | 1196 | 1308 | 1419 | 1529 | 1749 | 2074 | 2288 | 2712 | 3336 | 3948 | 3674 | 4010 | 4506 |
| 780 | 12 | Watt = W = | 552 | 638 | 665 | 725 | 811 | 896 | 982 | 850 | 917 | 1050 | 1248 | 1379 | 1639 | 2026 | 2406 | 2657 | 2906 | 3277 |
| 845 | 13 | Watt = W = | 875 | 1010 | 1052 | 1145 | 1281 | 1413 | 1546 | 1677 | 1807 | 2067 | 2451 | 2704 | 3205 | 3943 | 4666 | 5140 | 3149 | 3550 |
| 910 | 14 | Watt = W = | 942 | 1088 | 1133 | 1233 | 1379 | 1522 | 1665 | 1806 | 1946 | 2226 | 2639 | 2912 | 3451 | 4246 | 5025 | 4676 | 3391 | 3823 |
| 975 | 15 | Watt = W = | 690 | 798 | 831 | 906 | 1014 | 1121 | 1227 | 1062 | 1146 | 1313 | 1560 | 1724 | 2049 | 2532 | 3008 | 3321 | 3633 | 4097 |
| 1040 | 16 | Watt = W = | 1077 | 1243 | 1294 | 1410 | 1576 | 1739 | 1902 | 2064 | 2224 | 2544 | 3016 | 3328 | 3944 | 3374 | 3208 | 3542 | 2912 | 3309 |
| 1105 | 17 | Watt = W = | 782 | 904 | 942 | 1027 | 1149 | 1270 | 1108 | 1204 | 1299 | 1488 | 1768 | 1953 | 2322 | 2870 | 3409 | 3764 | 3094 | 3516 |
| 1170 | 18 | Watt = W = | 1211 | 1399 | 1456 | 1586 | 1773 | 1957 | 2140 | 2322 | 2502 | 2862 | 3393 | 3744 | 4437 | 3796 | 3609 | 3985 | 3276 | 3722 |
| 1235 | 19 | Watt = W = | 874 | 1011 | 1053 | 1148 | 1284 | 1419 | 1239 | 1345 | 1452 | 1663 | 1976 | 2183 | 2595 | 3207 | 3810 | 4207 | - | - |
| 1300 | 20 | Watt = W = | 1346 | 1554 | 1618 | 1762 | 1970 | 2174 | 2378 | 2580 | 2780 | 3180 | 3770 | 4160 | 4930 | 3376 | 4010 | 4428 | - | - |
| 1365 | 21 | Watt = W = | 966 | 1117 | 1163 | 1268 | 1420 | 1569 | 1369 | 1487 | 1604 | 1838 | 2184 | 2413 | 2869 | 3545 | 3137 | 3480 | - | - |
| 1430 | 22 | Watt = W = | 1481 | 1709 | 1780 | 1938 | 2167 | 2391 | 2616 | 2838 | 3058 | 3498 | 4147 | 4576 | 5423 | 3714 | 3287 | 3645 | - | - |
| 1495 | 23 | Watt = W = | 1058 | 1224 | 1274 | 1389 | 1555 | 1718 | 1500 | 1628 | 1757 | 2013 | 2392 | 2643 | 3142 | 2877 | - | - | - | - |
| 1560 | 24 | Watt = W = | 1615 | 1865 | 1942 | 2114 | 2364 | 2609 | 2854 | 3096 | 3336 | 3816 | 4524 | 4992 | 5916 | 3002 | - | - | - | - |
| 1625 | 25 | Watt = W = | 1150 | 1330 | 1385 | 1510 | 1690 | 1868 | 1630 | 1770 | 1910 | 2188 | 2600 | 2873 | 3415 | 3128 | - | - | - | - |
| 1690 | 26 | Watt = W = | 1750 | 2020 | 2103 | 2291 | 2561 | 2826 | 3091 | 3354 | 3614 | 3487 | 4137 | 4566 | 5411 | 3253 | - | - | - | - |
| 1755 | 27 | Watt = W = | 1242 | 1436 | 1496 | 1631 | 1825 | 2017 | 1760 | 1912 | 2063 | 2363 | 2808 | 3102 | 3688 | - | - | - | - | - |
| 1820 | 28 | Watt = W = | 1884 | 2176 | 2265 | 2467 | 2758 | 3044 | 3329 | 3612 | 3892 | 3755 | 4455 | 4917 | 5827 | - | - | - | - | - |
