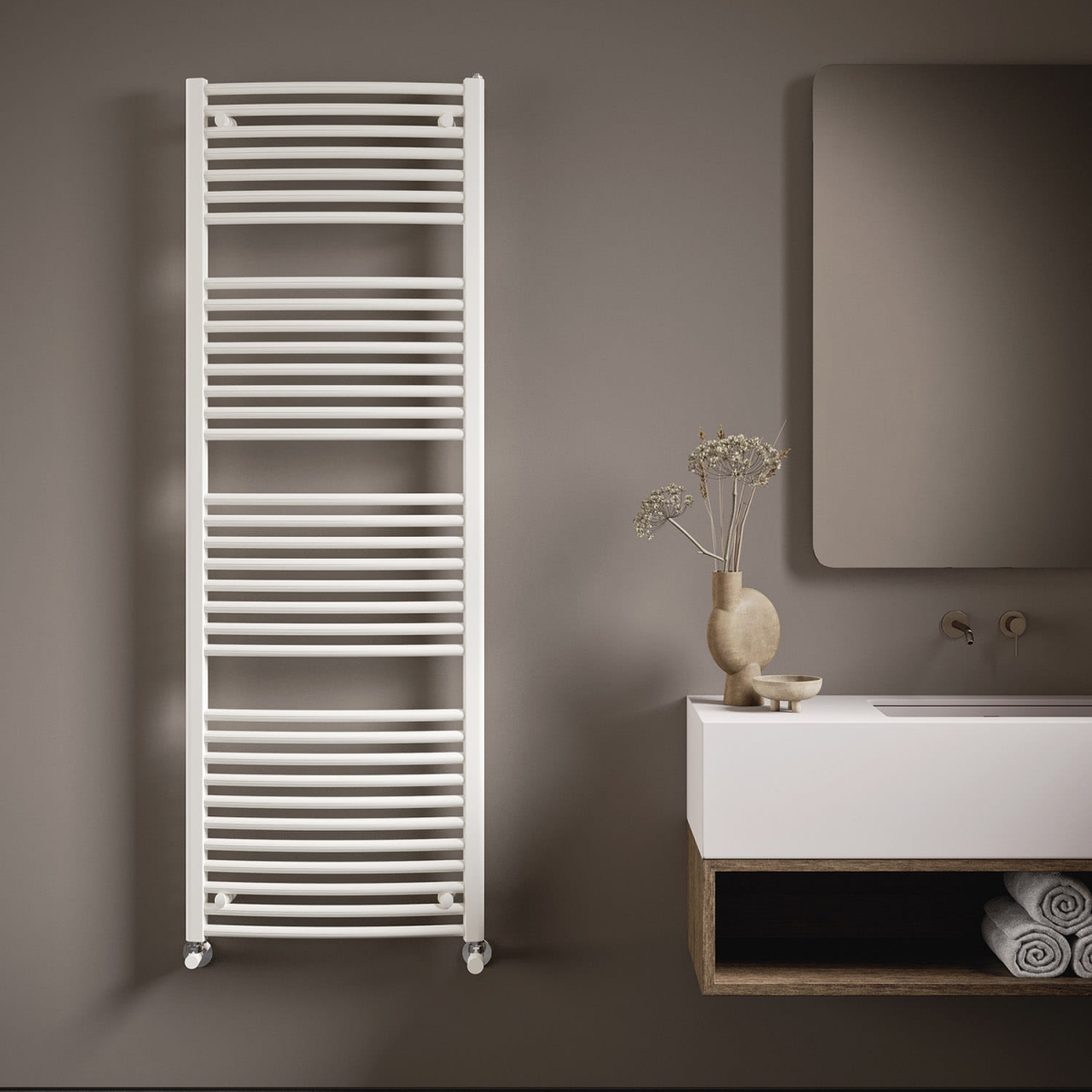

Venus

VENUS with its linear and accurate shape allows excellent use and excellent ease of cleaning. Available in 4 heights and 4 widths, also in the version with 50 mm connections. With the insertion of the electric resistance (optional) it can work even in periods when the system is off.

Configure Technical document

The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.

Configure your Venus

818 15 rails 2 espaces

1118 22 rails 2 espaces

1462 28 rails 3 espaces

1720 34 rails 3 espaces

3 plugs 1/2" and 1 blind plug, standards connections

50 mm bottom connection

Choose most used

Connection left/right with angle valve

50mm connection with angle valve

Select valve finish

Standard white

Chrome

MATCHING YOUR RADIATOR

-

Thermal power

Showroom Find Showroom

Discover accessories

Construction features

steel towel warmer radiator
horizontal elements featuring round tubes with a 23 mm diameter
side manifolds with a 40x30 mm semioval section
manifold threading and central connections (50 mm) 1/2” Gas right
maximum working pressure 8 bar
maximum working temperature 95°C

Electric radiator available

Low temperature

Hydraulic radiator

Model	Depth (mm)	Height (mm)	Width (mm)	Conn. centre (mm)	Weight (kg)	Capacity (lt)		Exponent	Mixed Function (Watts)
01
818 15 rails 2 espaces	43,0	818	448	418	4,68	3,51	1.146,8 289,1 336,1 256,8 181,5 111,3	1,207	300
818 15 rails 2 espaces	48,0	818	497	467	5,04	3,77	1.248,5 314,7 365,9 279,5 197,6 121,1	1,207	400
818 15 rails 2 espaces	57,0	818	595	565	5,76	4,29	1.451,8 365,9 425,5 325,1 229,8 140,9	1,206	400
818 15 rails 2 espaces	76,0	818	740	710	8,86	4,80	1.756,8 442,8 514,9 393,4 278,1 170,6	1,206	400
1118 22 rails 2 espaces	43,0	1118	448	418	6,63	4,99	1.617,3 407,6 474,0 360,2 252,7 153,4	1,231	400
1118 22 rails 2 espaces	48,0	1118	497	467	7,16	5,38	1.774,2 447,2 520,0 395,5 277,9 169,0	1,227	400
1118 22 rails 2 espaces	57,0	1118	595	565	8,22	6,13	2.088,1 526,3 612,0 466,4 328,5 200,5	1,218	700
1118 22 rails 2 espaces	76,0	1118	740	710	12,77	6,88	2.555,6 644,1 749,0 572,5 404,8 248,4	1,205	700
1462 28 rails 3 espaces	43,0	1462	448	418	8,50	6,43	2.098,4 528,9 615,0 467,8 328,7 199,9	1,226	700
1462 28 rails 3 espaces	48,0	1462	497	467	9,18	6,92	2.299,7 579,6 674,0 512,7 360,4 219,3	1,226	700
1462 28 rails 3 espaces	57,0	1462	595	565	10,52	7,88	2.702,3 681,1 792,0 602,7 423,9 258,0	1,224	700
1462 28 rails 3 espaces	76,0	1462	740	710	16,31	8,83	3.304,5 832,9 968,5 737,5 519,0 316,3	1,221	1000
1720 34 rails 3 espaces	43,0	1720	448	418	10,18	7,70	2.524,9 636,4 740,0 562,9 395,6 240,6	1,226	700
1720 34 rails 3 espaces	48,0	1720	497	467	11,00	8,29	2.767,1 697,5 811,0 617,2 434,0 264,2	1,224	700
1720 34 rails 3 espaces	57,0	1720	595	565	12,62	9,47	3.248,2 818,7 952,0 725,2 510,6 311,4	1,220	1000
1720 34 rails 3 espaces	76,0	1720	740	710	19,66	10,62	3.968,2 1.000,2 1.163,0 887,2 625,8 382,7	1,213	1000
05
818 15 rails 2 espaces	43,0	818	448	50	4,68	3,51	1.146,8 289,1 336,1 256,8 181,5 111,3	1,207	300
818 15 rails 2 espaces	48,0	818	497	50	5,04	3,77	1.248,5 314,7 365,9 279,5 197,6 121,1	1,207	400
818 15 rails 2 espaces	57,0	818	595	50	5,76	4,29	1.451,8 365,9 425,5 325,1 229,8 140,9	1,206	400
818 15 rails 2 espaces	76,0	818	740	50	8,86	4,80	1.756,8 442,8 514,9 393,4 278,1 170,6	1,206	400
1118 22 rails 2 espaces	43,0	1118	448	50	6,63	4,99	1.617,3 407,6 474,0 360,2 252,7 153,4	1,231	400
1118 22 rails 2 espaces	48,0	1118	497	50	7,16	5,38	1.774,2 447,2 520,0 395,5 277,9 169,0	1,227	400
1118 22 rails 2 espaces	57,0	1118	595	50	8,22	6,13	2.088,1 526,3 612,0 466,4 328,5 200,5	1,218	700
1118 22 rails 2 espaces	76,0	1118	740	50	12,77	6,88	2.555,6 644,1 749,0 572,5 404,8 248,4	1,205	700
1462 28 rails 3 espaces	43,0	1462	448	50	8,50	6,43	2.098,4 528,9 615,0 467,8 328,7 199,9	1,226	700
1462 28 rails 3 espaces	48,0	1462	497	50	9,18	6,92	2.299,7 579,6 674,0 512,7 360,4 219,3	1,226	700
1462 28 rails 3 espaces	57,0	1462	595	50	10,52	7,88	2.702,3 681,1 792,0 602,7 423,9 258,0	1,224	700
1462 28 rails 3 espaces	76,0	1462	740	50	16,31	8,83	3.304,5 832,9 968,5 737,5 519,0 316,3	1,221	1000
1720 34 rails 3 espaces	43,0	1720	448	50	10,18	7,70	2.524,9 636,4 740,0 562,9 395,6 240,6	1,226	700
1720 34 rails 3 espaces	48,0	1720	497	50	11,00	8,29	2.767,1 697,5 811,0 617,2 434,0 264,2	1,224	700
1720 34 rails 3 espaces	57,0	1720	595	50	12,62	9,47	3.248,2 818,7 952,0 725,2 510,6 311,4	1,220	1000
1720 34 rails 3 espaces	76,0	1720	740	50	19,66	10,62	3.968,2 1.000,2 1.163,0 887,2 625,8 382,7	1,213	1000

Thanks to the high performance of Irsap VENUS radiators, the ideal Δt for low temperature projects is Δt at 30°C.

For Δt different from 50°C use the formula: Q=Qn (Δt / 50)n

Standard equipment

4 white infratube for wall fixing for VENUS white and 4 chromed infratube for wall fixing for VENUS coloured
1/2" air vent
