Face Zero_Air

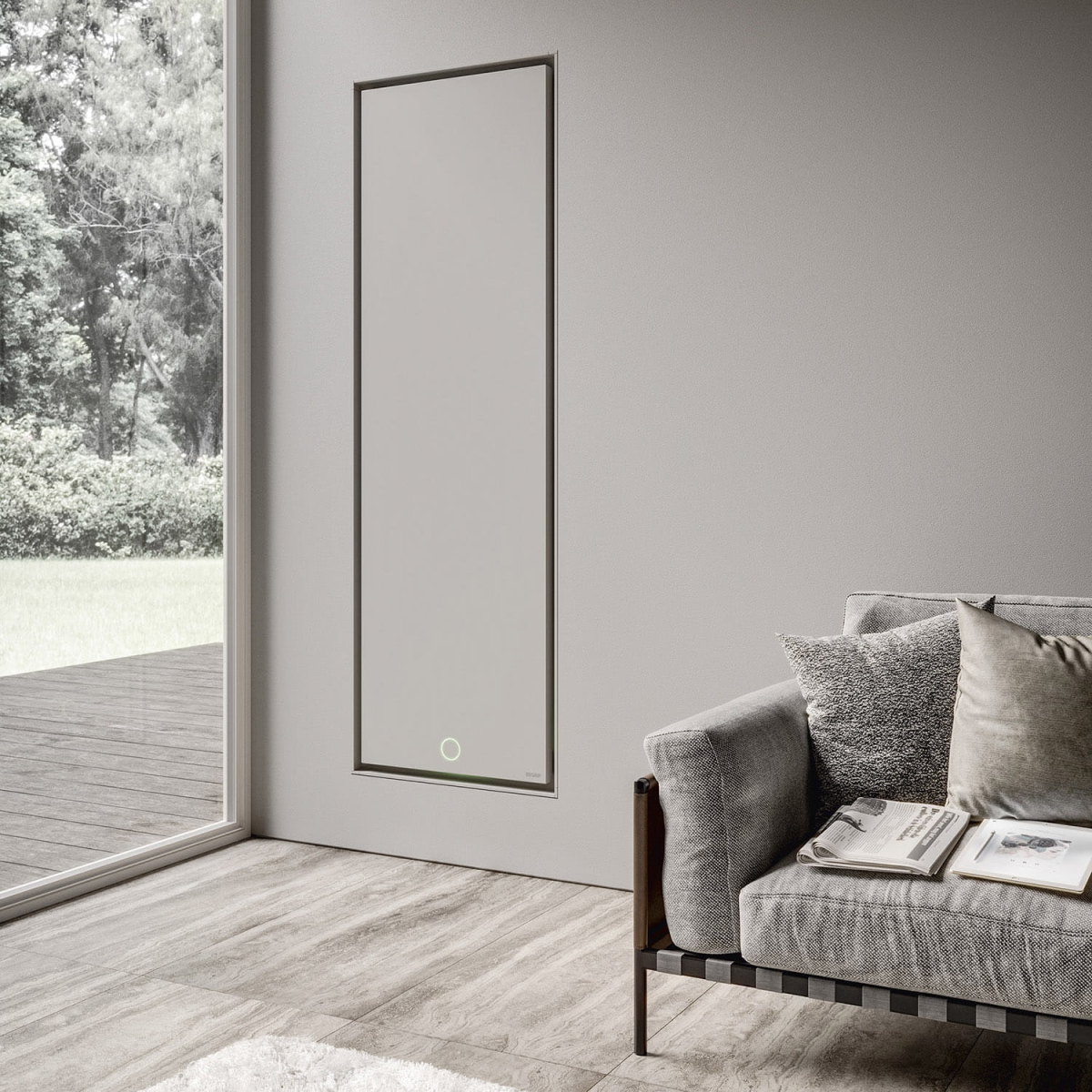

IRSAP, with the FACE ZERO_AIR version, presents the line of flush-to-wall radiators. The heat becomes one with the wall, merging into a single plane. In this way, the study of the environment allows for creative and design freedom like never before. Wall or plasterboard recess for the FACE ZERO_AIR radiator is facilitated by the special and lightweight aluminum frame. The opening heating body, with magnetic closure and concealed connections, allows easy access for maintenance and cleaning.
The images on this page have the sole purpose of depicting the product. Finishes and models may not have a perfect match with the actual product.
Construction features
- radiating panel
- 1/2” Gas right threading
- maximum working pressure 4 bar
- maximum working temperature 95°C
- radial fans with low fuel motors

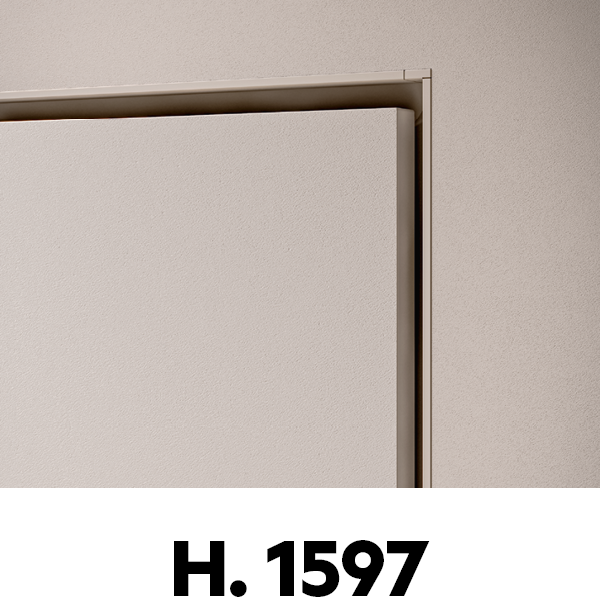

| Model | Depth (mm) | Height (mm) | Width (mm) | Conn. centre (mm) | Weight (kg) | Capacity (lt) |
|
Exponent |
|---|---|---|---|---|---|---|---|---|
| FACE ZERO_Air 1600 x 500 | 75,0 | 1597 | 500 | 50 | 31,90 | 1,20 | 2.559,0 645,0 750,0 568,7 398,1 240,8 | 1,240 |
| FACE ZERO_Air 1600 x 600 | 75,0 | 1597 | 598 | 50 | 38,80 | 1,60 | 3.412,0 860,0 1.000,0 760,0 533,5 324,0 | 1,230 |
| FACE ZERO_Air 1800 x 500 | 75,0 | 1797 | 500 | 50 | 36,70 | 1,40 | 3.207,0 808,4 940,0 712,8 498,9 301,8 | 1,240 |
| FACE ZERO_Air 1800 x 600 | 75,0 | 1797 | 598 | 50 | 43,60 | 1,80 | 4.163,0 1.049,2 1.220,0 927,2 650,9 395,3 | 1,230 |
(*) Thanks to the high performance of Irsap FACE ZERO_AIR radiators, the ideal Δt for low temperature projects is Δt at 30°C.
For Δt different from 50°C use the formula: Q=Qn (∆t / 50)n
Standard equipment
- 2 lockshield valves 1/2" M 1/2" F – FE connection
- flexible pipes for ease of installation
- wall fastening system
- power supply unit
- modulating thermostatic head
| Type | Description | Document | Downloads |
|---|---|---|---|
|
Technical document |
|||
|
Catalogs |
Catalog 2023 | Catalog 2023 | |
|
Catalogs |
Color chart | Color chart | |
|
User manual |
FOISTR0878M | FOISTR0878M | |
|
Manual |
FOISTR1394M | FOISTR1394M |
| Type | Description | Document | Downloads |
|---|---|---|---|
|
3D Model |
FACE_Zero_1600x500 | FACE_Zero_1600x500 |
|
|
3D Model |
FACE_Zero_1800x600 | FACE_Zero_1800x600 |
|
The Designer
When a successful company like Irsap discovers the stylistic synthesis of Antonio Citterio, the result in terms of both aesthetics and performance is impeccable. Our meeting led to the development of a line of authentic design heating elements that speaks the immediately recognizable language of a designer who symbolizes Made in Italy spirit and production. These are products that can be easily inserted in any surroundings thanks to the discretion adopted in their physical configuration. Every single detail has a simple story and a truth to tell: fashion trends come and go without a trace, true design, instead, leaves its mark. Design remains at the disposal of anyone who designs interiors and those who desire to fill these rooms and areas with their own desires and dreams.
Antonio Citterio
Calculate the power
How to choose the Face Zero_Air radiator for your home? How to know what is the right power to heat each room? Online thermal requirement allows you to identify the most suitable radiator for your living space
Calculate the thermal power of your Face Zero_Air
